R9A06G062GNP
16
Sub-GHz Wireless Communication Evaluation Kit
For Europe
All information contained in these materials, including products and product specifications,
represents information on the product at the time of publication and is subject to change by
Renesas Electronics Corp. without notice. Please review the latest information published by
RTK0EE0013D10002BJ User's Manual
表紙
Rev.1.02
Rev.1.02 2023.5
Advertisement
Table of Contents
Related Manuals for Renesas R9A06G062GNP
Summary of Contents for Renesas R9A06G062GNP
- Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Rev.1.02 2023.5...
- Page 2 Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
- Page 3 Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
- Page 4 The revision history summarizes the locations of revisions and additions. It does not list all revisions. Refer to the text of the manual for details. The following documents apply to RTK0EE0013D10002BJ. Be sure to refer to the latest versions of these documents. The newest versions of the listed documents are available on the Renesas Electronics Web site. Document Type Description Document Title Document No.
-
Page 5: Table Of Contents
Table of Contents 1. Overview ..........................4 Package Components ..........................4 Purpose ..............................4 Features ..............................4 Sub-GHz Wireless Communication Evaluation Kit: Table of Specifications ..........4 Block Diagram ............................5 2. External view ........................6 3. Parts Layout ........................7 4. -
Page 6: Overview
User’s Manual 2023.5.31 1. Overview Package Components Thank you for purchasing the Sub-GHz Wireless Communication Evaluation Kit from Renesas (hereinafter referred to as “this product”). This product consists of the Target Board for Sub-GHz Wireless Communication Evaluation Kit (RTK0EE0013D10002BJ) Purpose This product is an evaluation tool for a Sub-GHz Wireless Communication Solutions. -
Page 7: Block Diagram
RTK0EE0013D10002BJ Section 1 Overview Block Diagram Figure 1-1 shows the block diagram of this product. Figure 1-1: Block Diagram R02UZ0005EJ0102 Rev.1.02 Page 5 of 21 May 31, 2023... -
Page 8: External View

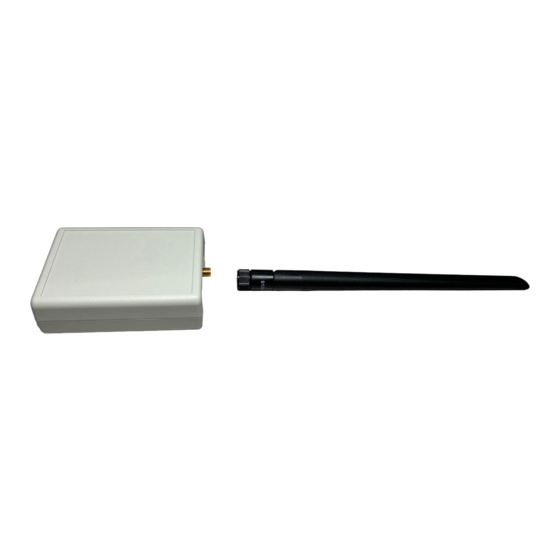

RTK0EE0013D10002BJ Section 2 External view 2. External view Figure 2-1 shows the external view of this product. Figure 2-1: External view Note: Never disassemble or remodel this product. R02UZ0005EJ0102 Rev.1.02 Page 6 of 21 May 31, 2023... -
Page 9: Parts Layout
RTK0EE0013D10002BJ Section 3 Parts Layout 3. Parts Layout Figure 3-1 shows the parts layout of this product. Figure 3-1: Parts Layout Connect the antenna provided with the product to SMA connecter on this product Figure 3-2: Antenna connection diagram This product includes Sub-GHz wireless function. Note: Never use an antenna other than the antenna provided with the product, as it violates the radio-related laws. -
Page 10: Operating Environment
RTK0EE0013D10002BJ Section 4 Operating Environment 4. Operating Environment Figure 4-1 shows the operating environment of this product. Install “Virtual COM Port USB Driver” on the host PC. In addition, install the serial terminal software as it will be used for wireless evaluation. Figure 4-1: Operating Environment Virtual COM Port USB Driver If your PC is connected to the Internet, Windows Update will automatically install the latest driver. -
Page 11: User Circuits
RTK0EE0013D10002BJ Section 5 User Circuits 5. User Circuits DIP switch Set the following when evaluating (normal mode). Table 5-1: DIP switch Settings Mode DIP switch Settings Evaluation (normal mode) ON:1,2 OFF:3,4,5,6,7,8 Connection of control MCU(RX65N) and wireless transceiver IC (CWX-M) Table 5-2: Connection of control MCU(RX65N) and wireless transceiver IC (CWX-M) Control MCU(RX65N) Transceiver IC (CWX-M) -
Page 12: Wireless Evaluation
Command Function Argument tboot Renesas Sub-GHz transceiver bootstrapping Boot mode tinit Test function initialization and reset Renesas (None) Sub-GHz transceiver tope PHY operation mode setting FSK/OFDM operation mode Prohibit the use in modes other than the following. tope FSK EU FSKwoFEC 1a 32... - Page 13 RTK0EE0013D10002BJ Section 6 Wireless evaluation tccam CCA mode setting CCA mode tfcdr CCA duration setting for FSK CCA duration for FSK tfccavt CCA level threshold for FSK CCA level threshold value for FSK tfccavtd CCA level threshold for FSK in dBm CCA level threshold value (dBm) for FSK tocdr CCA duration setting for OFDM...
- Page 14 Sleep Mode Setting (None) The gray areas are commands not supported by this product. The transmission output power setting of R9A06G062GNP is fixed to the following settings. It cannot be changed by command. FSK：-11.0dBm OFDM：-9.5dBm Details on the command specification is explained in the application note " RF Characteristic Evaluation Program for Renesas Sub-GHz Transceiver Operation Manual (R30AN0376)”.
-
Page 15: Hardware Specifications
RTK0EE0013D10002BJ Section 7 Hardware specifications 7. Hardware specifications Table 7-1 shows the communication specifications of this product. Table 7-1: Communication specifications Channel Modulation Spacing Option Data Rate / Modulation Index Europe Band OFDM 200KHz Option4 MCS6 300kbps 863 - 870MHz 100KHz Operating mode #1a 50kbps / m=0.5... -
Page 16: Fsk、Channel Spacing = 100Khz、50Kbps / M = 0.5
RTK0EE0013D10002BJ Section 7 Hardware specifications 7.1.2 FSK、Channel Spacing = 100KHz、50kbps / m = 0.5 Transmission output power at SMA connecter = +14dBm Channel Number Setting: ChanPlanID 32 Channel Frequency Channel Frequency Channel Frequency Channel Frequency number [MHz] number [MHz] number [MHz]... -
Page 17: Additional Information
RTK0EE0013D10002BJ Section 8 Additional Information 8. Additional Information Technical Support For details on the Transceiver IC (CWX-M), refer to the R9A06G062GNP Sub-GHz Transceiver User’s Manual: Hardware. The latest information is available from the Web page. Technical Contact Details General information on Renesas microcontrollers can be found on the Renesas website at: https://www.renesas.com/... -
Page 18: Certification Of Compliance
EU Compliance information Simplified EU Declaration of conformity Hereby, Renesas Electronics Corporation declares that the radio equipment type RTK0EE0013D10002BJ is in compliance with RED 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.renesas.com/... - Page 19 Revision History RTK0EE0013D10002BJ User’s Manual Description Rev. Date Page Summary 1.00 2022.12.31 First Edition issued － 1.01 2023.3.24 Note, added 1.02 2023.5.31 Note, modified...
- Page 20 R9A06G062GNP RTK0EE0013D10002BJ User’s Manual Publication Date: Rev.1.02 May 31, 2023 Published by: Renesas Electronics Corporation...
- Page 21 R9A06G062GNP R02UZ0005EJ0102...
