Crow SH-CRT-8F Instruction Manual

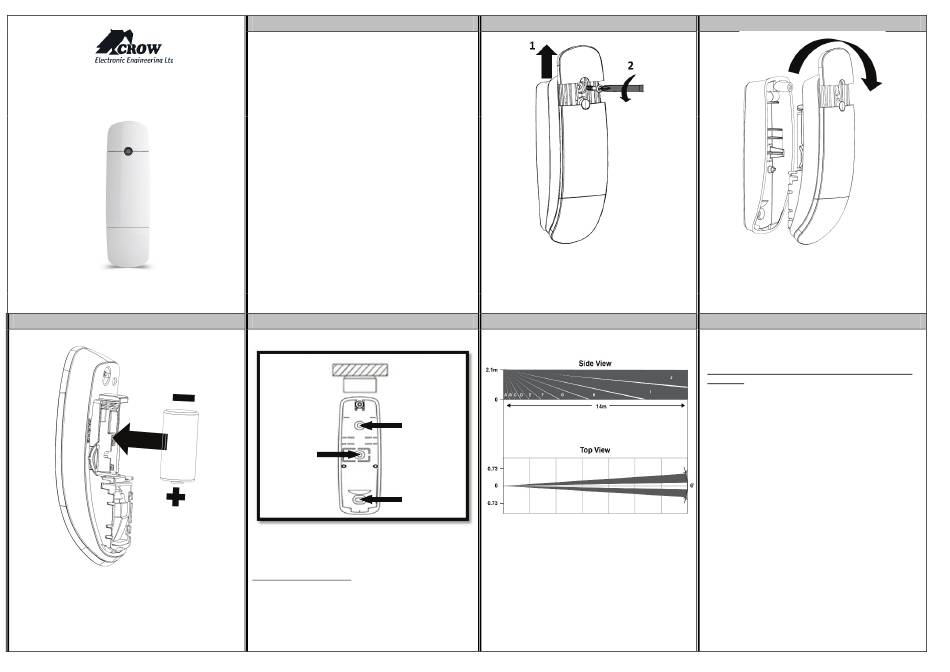

SH-CRT-8F/9F
TWO WAY WIRELESS
CURTAIN PIR MOTION DETECTOR
INSTRUCTION MANUAL
P/N 7102393_C

BATTERY INSERTION

Figure 3
The battery can be replaced by the user
Battery type: 3V Type CR123A Lithium

PRODUCT FEATURES

The SH-CRT is an advanced, fully supervised low-current
wireless curtain motion detector that includes a FW2
transceiver for reliable system operation combined with the
most advanced Mirror Optics detection method.
•
GFSK with 5 frequencies & LBT
• Ultra Low current consumption
• Powered by a 3V Type CR123A Lithium battery
• Motion Detection up to 12 meters
• Battery life up to 5 years
• APS Mode feature
• Immunity to attenuation feature
• Operating Frequencies: 868MHz / 916MHz
• Event Transmission:
Alarm
Tamper Open/Close
Supervision
Battery status
• Bi-Color LED indications
• Up to 500m transmission range in open space
• Remotely configurable

DETECTOR MOUNTING

Direct flat on wall
(Figure 4)
Avoid the following locations:
• Facing direct sunlight.
• Facing areas that may change temperature rapidly.
• Areas where there are air ducts or substantial airflows.

DETECTOR OPENING

Figure 1
Pull up the screw cover
And unscrew the holding screw

DETECTION COVERAGE

Recommended mounting height – 2.1m to 2.3m
This device detects or performs better when provided with
a constant and stable environment.

BRACKET REMOVAL

Figure 2
Tilt out the detector from its bracket

PAIRING PROCESS

For pairing process, please refer to your control panel
instructions.
To pair your device with Shepherd™ panel, please proceed
as follows:
1. Enter in installing mode via the "Installer Webpage"
2. Go to "Zones" and select the zone # you want to learn
3. Add Zone -(Reminder: insert Link Type "ISM", device's
ID, Device Type "Infrared motion detector".
4. Set the Curtain PIR settings and save configuration.
5. Place Battery as instructed in Figure 3..
6. Verify Green & Red are blinking alternately, then the
LED will turn Green on for 3 sec. to indicate device
learned successfully
7. The device should register to the Control Panel.
8. If Green LED continues flashing more than 5 minutes
and stopped. Please check CRT PIR settings details,
remove battery and repeat step 5,6
