Crow SH-DB Instruction Manual

SH-DB
AUDIO SECURITY BURGLAR PREVENTING DEVICE
INSTRUCTION MANUAL
P/N 7101702_A
WALL MOUNTING
Figure 3
Connect power supply 8-36v DC/ 24V AC
PRODUCT FEATURES

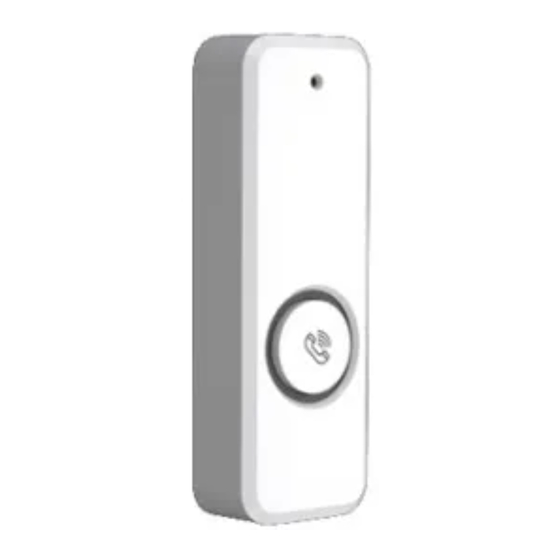

The Crow's SH-DB is a smart fully wireless doorbell burglar
preventing device with two-way audio DECT.
Audio is routed over cellular from the device to the
smartphone for audio verification.
So user can answer to person on the door when he is away
from home.
When used with Crow's IP camera, day and night high
definition images will be sent for video verification.
SH-DB is designed to watch your doorstep anytime while
keeping snapshot history.
It operates outdoors without Wi-Fi or electricity with a 24-hour
battery backup.
•
DECT Universal Standards
•
Push-Button for speed dial
•
8-36 VDC or 12-24V AC supply from wall mount
adaptor
•
Built-in rechargeable 3.7V battery for 24h backup
•
Can use as an intercom system together with the
SH-AVM while the system is in Disarm mode.
•
In ARM mode, pressing the DB button will direct a call to
the user's mobile.
WALL MOUNTING
Figure 4
Remove the top cover
Use supplied screw to mount the bracket on the wall
Check that the base is flat against the wall to facilitate the
unit device insertion into the wall bracket.

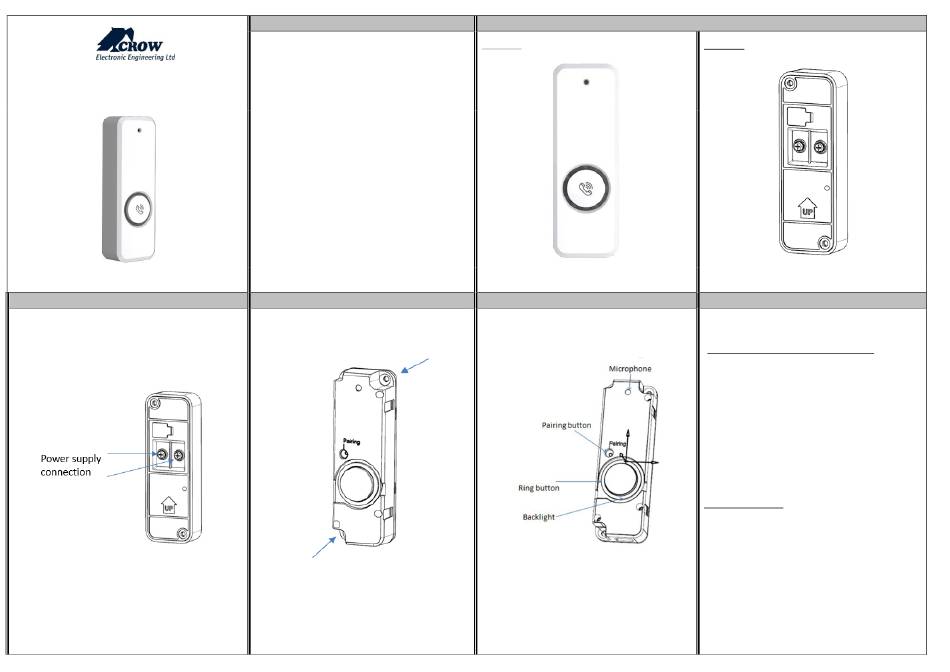

PRODUCT OVERVIEW
Front View:
Figure 1
DEVICE INSTALLATION
Figure 5
Pairing button and Microphone hole locations
Rear View:
Figure 2
PAIRING PROCESS
For pairing process, please refer to your control panel
instructions.
To pair your SH-DB, please proceed as follows:
1. Install the module as indicated on figure 1, 2 and 3.
2. Connect the power supply
3. Log into web installer interface and
"Communication > DECT Learning"
4. Verify DECT is enable state
5. Press and hold the Pairing button on the front side of
the device (figure 5).
6. When the Green LED starts blinking release the pairing
button.
7. While DB Green LED button is flashing on, Press the
button "Learn DECT Device" in communication page.
8. Wait until Pairing Stage 1 & 2 process is starting and
ends with successfully learned message.
9. The device should register to the Control Panel.
Doorbell Assignment
10. Go to Voice Devices level and select the desired
voice device # 1 to 20, click on Add Voice device
button, select from the white list paired devices (red
color are already assigned) and save configuration.
11. DB ready for use
12. Use Shepherd installation manual
