SPORTSPOWER TR-0100-06PDC Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. SPORTSPOWER Manuals
  4. Sports & Outdoors
  5. TR-0100-06PDC
  6. Assembly instructions manual

SPORTSPOWER TR-0100-06PDC Assembly Instructions Manual

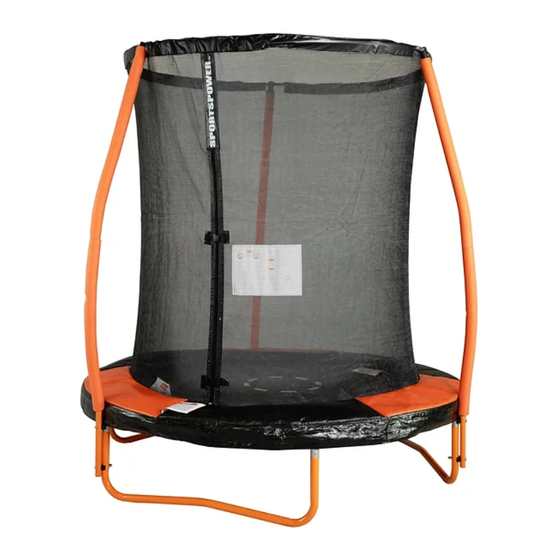

6ft trampoline and enclosure with mini flash litezone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
6FT TRAMPOLINE AND ENCLOSURE WITH MINI
Assembly, Installation, Care, Maintenance, and User Instructions
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Use trampoline only with mature, knowledgeable supervision.
These instructions are important to minimize chances of injury. Please read each of them
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed 110lbs/50kg for this product.
Trampoline must be used with enclosure that is properly installed and maintained
This product is intended for use by children between 3 to 10 years old.
For Customer Service, please call 1-866-370-2131 or visit www.sportspowerltd.net
LEVEL 20, PARKVIEW CENTRE, 7 LAU LI STREET, CAUSEWAY BAY, HONG KONG 
FLASH LITEZONE
TR-0100-06PDC
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
SPORTSPOWER LTD.
Corporate Office 1-800-497-6106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-0100-06PDC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPORTSPOWER TR-0100-06PDC

Summary of Contents for SPORTSPOWER TR-0100-06PDC

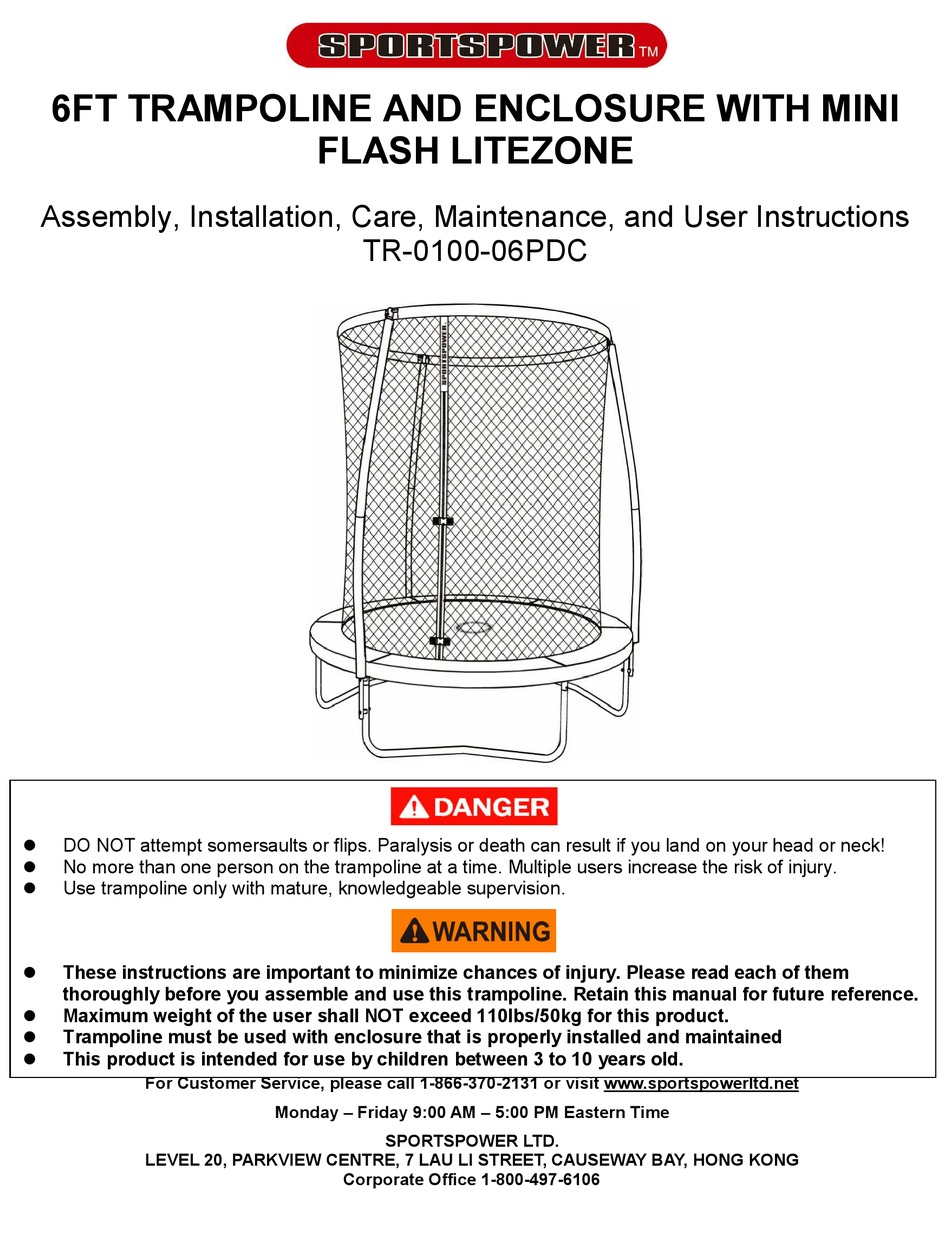

  • Page 1    6FT TRAMPOLINE AND ENCLOSURE WITH MINI FLASH LITEZONE Assembly, Installation, Care, Maintenance, and User Instructions TR-0100-06PDC      DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck! ...
