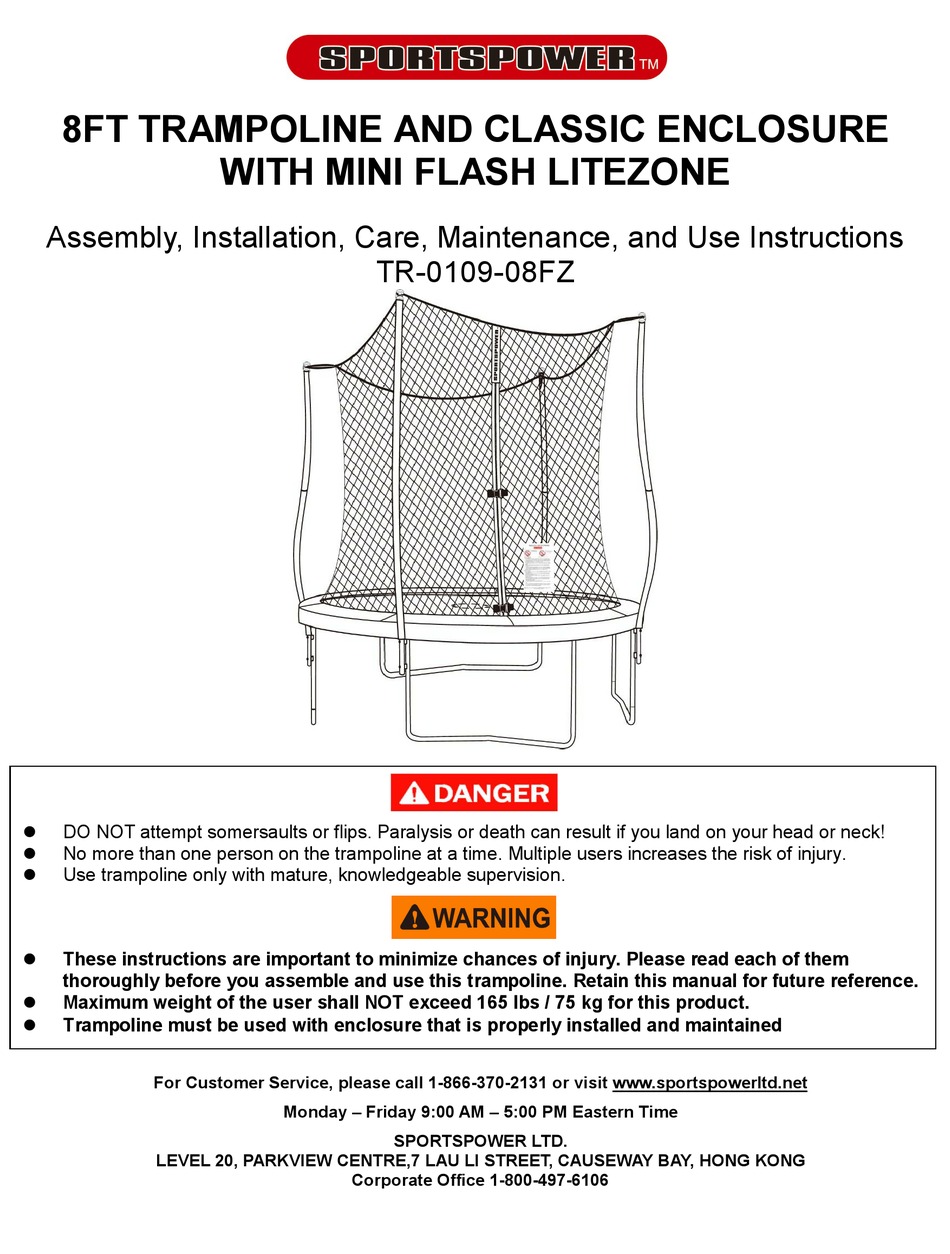

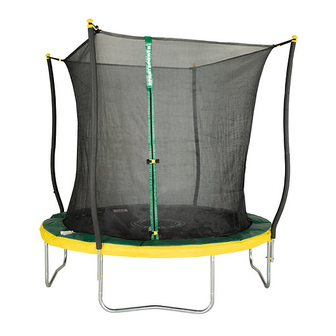

8FT TRAMPOLINE AND CLASSIC ENCLOSURE
Assembly, Installation, Care, Maintenance, and Use Instructions
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
No more than one person on the trampoline at a time. Multiple users increases the risk of injury.
Use trampoline only with mature, knowledgeable supervision.
These instructions are important to minimize chances of injury. Please read each of them
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed 165 lbs / 75 kg for this product.
Trampoline must be used with enclosure that is properly installed and maintained
For Customer Service, please call 1-866-370-2131 or visit www.sportspowerltd.net
LEVEL 20, PARKVIEW CENTRE,7 LAU LI STREET, CAUSEWAY BAY, HONG KONG
WITH MINI FLASH LITEZONE
TR-0109-08FZ
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
SPORTSPOWER LTD.
Corporate Office 1-800-497-6106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-0109-08FZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPORTSPOWER TR-0109-08FZ

Summary of Contents for SPORTSPOWER TR-0109-08FZ

  • Page 1 8FT TRAMPOLINE AND CLASSIC ENCLOSURE WITH MINI FLASH LITEZONE Assembly, Installation, Care, Maintenance, and Use Instructions TR-0109-08FZ  DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!  No more than one person on the trampoline at a time. Multiple users increases the risk of injury.
  • Page 2 NO SOMERSAULTS OR FLIPS – PARALYSIS OR DEATH can result if you No more than ONE user at a time land on your head or neck! (maximum weight - 165 lbs/75 kg). Do not use if in a Do not allow Remove all hard Do not use cast or have...
  • Page 3 Only genuine Sportspower replacement parts sold through our authorized dealer are recommended. Replacement parts from other sources may not have been designed, tested or manufactured to Sportspower standards. Because of this, Sportspower cannot guarantee the performance and safety of the product when non genuine replacement parts are used.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...

  • Page 5: Before You Start To Assemble

    Heavy gloves must be used to protect your hands from pinch points during assembly and goggles must be worn to avoid injuries to the eyes.  Never modify the construction or the design of the product. Do not use any unauthorized Sportspower parts with this trampoline. ...

  • Page 6: Important Warnings

    IMPORTANT WARNINGS  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...
  • Page 7 IMPORTANT WARNINGS  Use trampoline only with mature, knowledgeable adult supervision.  Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...
  • Page 8 This can result in serious injuries and/or product damage. If you see any signs of stretched or damaged springs, do not use the trampoline until replacement springs are properly installed. Please contact our customer service representatives to order original Sportspower replacement parts. ...
  • Page 9 Sportspower authorized replacement netting or pad is installed. Please refer to the Trampoline Net & Pad – Maintenance Requirements section contained in this manual for further details.

  • Page 10: Important Instructions For Enclosure Netting And Mat

    Official Sportspower replacement nets and padding can be purchased by contacting our authorized customer service by toll free number or email which can be found on the website www.sportspowerltd.net.
  • Page 11 Replace the enclosure net and pad earlier if there are any signs of wear, tear, brittleness, cracking, stretching or any other signs of weakness. New enclosure netting and pad can be purchased through SPORTSPOWER’S authorized service center (toll-free numbers and email address can be found on our websitewww.sportspowerltd.net).

  • Page 12: Trampoline And Enclosure Parts List

    TRAMPOLINE AND ENCLOSURE PARTS LIST Trampoline and Enclosure Parts List Trampoline Part Picture Description Quantity Number Trampoline Mat, stitched with Triangle-Rings Frame Pad Top Rail with Leg Sockets Top Rail Leg Base Vertical Leg Extension Vertical Leg Extension (two holes) Spring Trampoline Safety Instruction Placard Spring Loading Tool...

  • Page 13: Hardware Parts List

    HARDWARE PARTS LIST Hardware Parts List Part Picture Description Quantity Number Wrench Gap Spacer Bolt Large Spring Lock Washer Cap Nut Self-Locking Screw Arc Washer Allen Wrench Cord Flash LiteZone End Cap Tube cap...

  • Page 14: Assembly And Installation Instructions

    Before assembly, please ensure that you have all the parts required to assemble the product. If you are missing any parts, please contact our Customer Support agents.  Please do not use unauthorized Sportspower parts to assemble the trampoline. This may damage the integrity of the product and will void the manufacturer’s warranty. ...

  • Page 15: Trampoline Frame Assembly

    TRAMPOLINE FRAME ASSEMBLY Trampoline Frame Assembly BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline. At least two adults are required to assemble this trampoline. Protective gloves should be used during assembly to avoid injuries during installation. Goggles should be worn to avoid injuries to the eyes. Step 1 –...
  • Page 16 TRAMPOLINE FRAME ASSEMBLY Step 2 – Leg Support and Top Rail with Leg Socket Assembly At this point, two people will be needed to assemble the trampoline.  Connect Vertical Leg Extensions (# 6A and # 6B) to Leg Base (# 5) as shown below (the assembled parts will be hereinafter referred to as “Leg Support”).
  • Page 17 TRAMPOLINE FRAME ASSEMBLY Step 3 –Top Rail Assembly  Complete the trampoline frame by inserting all Top Rails (# 4) in between Top Rail with Leg Sockets (# 3) as shown below. DO NOT PLACE HANDS NEAR THE OPENING WHEN CONNECTING THE TUBES.
  • Page 18 TRAMPOLINE FRAME ASSEMBLY Step 4 –Secure the Leg Support to the Top Rail  Secure Vertical Leg Extension (# 6A) to the frame using Self-Locking Screw (# I), Small Spring Lock Washer (# 10) and Allen Wrench (# K) as shown below. If the holes do not match up, rotate Vertical Leg Extension back and forth until the holes are aligned.

  • Page 19: Trampoline Mat Assembly

    TRAMPOLINE MAT ASSEMBLY Trampoline Mat Assembly When attaching the springs, do not place your hands, arms, legs or any other body part close to the connector points (i.e. joints connecting the steel tubes). The connector points can become pinch points as the trampoline springs tighten up.
  • Page 20 TRAMPOLINE MAT ASSEMBLY Step 6 – Spring Assembly  Continue to attach springs in the same manner, ensuring even distribution of tension by attaching springs on the opposite sides of the mat/frame in an alternating manner, i.e. 7 then 31, 19 then 43 as shown below.
  • Page 21 TRAMPOLINE MAT ASSEMBLY Step 7 – Spring Assembly  Continue to attach springs in the same manner, ensuring even distribution of tension by attaching springs on the opposite sides of the mat/frame in an alternating manner, i.e. 4 then 28, 16 then 40, etc as shown.
  • Page 22 TRAMPOLINE MAT ASSEMBLY Step 8 – Spring Assembly  Continue to attach the remaining springs in the same manner as the previous step, i.e. the springs must be placed on opposite sides of the mat in an alternating manner to ensure even distribution of tension. The completed trampoline should look as shown below.

  • Page 23: Frame Pad Assembly

    FRAME PAD ASSEMBLY Frame Pad Assembly Never use the trampoline without the Frame Pad, the Frame Pad reduces the risk of getting injured by hitting the metal frame or springs. Inspect the Frame Pad before each and every use to ensure all exposed metal parts are fully covered by the Frame Pad! Step 9 ...

  • Page 24: Flash Light Zone Assembly

    FLASH LITEZONE ASSEMBLY Flash LiteZone Assembly The Flash LiteZone is a trampoline accessory which is installed underneath the trampoline mat. It flashes a bright light on every bounce to help guide the user to the center of the mat. Protective gloves should be used during assembly to avoid injuries during installation and protective goggles should be worn to avoid injuries to the eyes Ensure that no one is jumping on the trampoline while the Flash LiteZone is being installed as this will increase the chances of injury sustained by the installer.
  • Page 25 FLASH LITEZONE ASSEMBLY Protective gloves should be used during assembly to avoid injuries during installation and protective goggles should be worn to avoid injuries to the eyes. Ensure that no one is jumping on the trampoline while the Flash LiteZone is being installed as this will increase the chances of injury sustained by the installer.

  • Page 26: Trampoline Enclosure Assembly

    TRAMPOLINE ENCLOSURE ASSEMBLY Trampoline Enclosure Assembly BEFORE YOU BEGIN: This trampoline must only be used when the enclosure netting is properly assembled. The trampoline netting  must be checked thoroughly before each use to ensure there are no tears or damages. Please carefully read all the Important Warnings contained in this manual and all warnings on the product before use.
  • Page 27 TRAMPOLINE ENCLOSURE ASSEMBLY Step 11 – Assemble the Enclosure Top Frame  Attach Tube Cap (# R) to Upper Frame Tube with Foam (# A) using Self-Locking Screw (# I) and Allen Wrench (# K) as shown below.  Repeat this step for all of the frame tubes. Diagram 11-1...
  • Page 28 TRAMPOLINE ENCLOSURE ASSEMBLY  Secure the buckles located at the top of the netting enclosure through Tube Cap (# R) as shown below. Hint: • Please make sure the cap holder is facing outward. • Keep some looseness on the strap of the buckles. NOTE: Once the enclosure top frame is assembled, make sure the connection points are covered by the enclosure sleeve.
  • Page 29 TRAMPOLINE ENCLOSURE ASSEMBLY Step 12 – Connect the Enclosure Upper Frame to the Lower Frame Tubes  Connect all four Upper Frame Tube with Foam (# A) to Lower Frame Tube with Foam (# B). Secure with Self-Locking Screw (# I) using Allen Wrench (# K) as shown below. Helpful Tips: One person should stand inside the trampoline to hold the netting in place while another person installs all the frame tubes from the outside.
  • Page 30 TRAMPOLINE ENCLOSURE ASSEMBLY Step 13 – Tie the Enclosure to the Mat  Secure the trampoline netting to the trampoline frame using the Cords (# L). Lift up the frame pad and tie one end of the cord to any one of the triangle-rings on the trampoline mat as shown below. ...
  • Page 31 TRAMPOLINE ENCLOSURE ASSEMBLY Step 14 - Secure the Frame Pad  Wrap and tie the inner elastic straps on the frame pad around the triangle-rings and the outer straps around the trampoline frame as shown below. Diagram 14-1...
  • Page 32 TRAMPOLINE ENCLOSURE ASSEMBLY  For the elastic straps near the leg sockets, wrap them BEHIND the leg sockets and then tie a one-sided bow in front as shown below. Diagram 14-2  Make sure that the knots and bows are tight for all elastic straps. ...
  • Page 33 TRAMPOLINE ENCLOSURE ASSEMBLY Step 16–Close the Enclosure and Attach the Safety Instruction Placard  Close the zipper and buckles located at the entrance of the Enclosure Netting (# M).  Attach Trampoline Safety Instruction Placard (# 8) to the trampoline frame as shown. The zipper and buckles should be closed during use to avoid users falling out of the trampoline, as well as during periods of non-use to restrict access by unauthorized users.

  • Page 34: Disassembly Of The Trampoline And Enclosure

    DO NOT USE THE TRAMPOLINE WHEN THE ENCLOSURE IS REMOVED. Do not make changes or add attachments to the trampoline that are not authorized genuine sportspower parts. The user must carry out changes to the trampoline (e.g. the addition of an attachment) according to the instructions of the manufacturer, particularly those attachments which include instructions on their assembly, necessary measurements and the correct fastening (e.g.

  • Page 35: Care And Maintenance

    Please contact our customer service representatives to order original Sportspower replacement parts.  Please do not use unauthorized Sportspower parts to assemble the trampoline. This may damage the integrity of the product and can cause injuries during use. ...

  • Page 36: Proper Use Instructions

    PROPER USE INSTRUCTIONS Proper Use Instructions Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. Responsibilities of the user The key here is to stay in control of your jumps. DO NOT move onto more complicated, more difficult maneuvers until you have mastered the basic, fundamental bounce.
  • Page 37 PROPER USE INSTRUCTIONS Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death.  Read all instructions before using the trampoline. Warnings and instructions for the care, maintenance and use of this trampoline are included to promote proper and enjoyable use of this equipment.

  • Page 38: Learning The Fundamental Trampoline Skills

    USE INSTRUCTIONS Learning the fundamental trampoline skills The following lessons are suggested for you to learn basic steps and bounces. Before using the trampoline, you should read and understand all warnings. A complete discussion and demonstration of body mechanics and trampoline guidelines should occur between the supervisor and student as well.
  • Page 39 USE INSTRUCTIONS BASIC TRAMPOLINE BOUNCES THE BASIC BOUNCE 1. Start from the standing position, with your feet having shoulder width apart and with head up and eyes on mat 2. Swing arms forward and up in a circular motion 3. Bring feet together while in mid-air and point toes downwards.

  • Page 40: Product Warranty

    PRODUCT WARRANTY Product Warranty Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service conditions for ninety (90) days after the date of purchase. The steel frame on trampolines is warranted for two (2) years after the date of purchase.
  • Page 41 PRODUCT WARRANTY SPORTSPOWER IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
