Installing the RRU on a Metal Pole
a

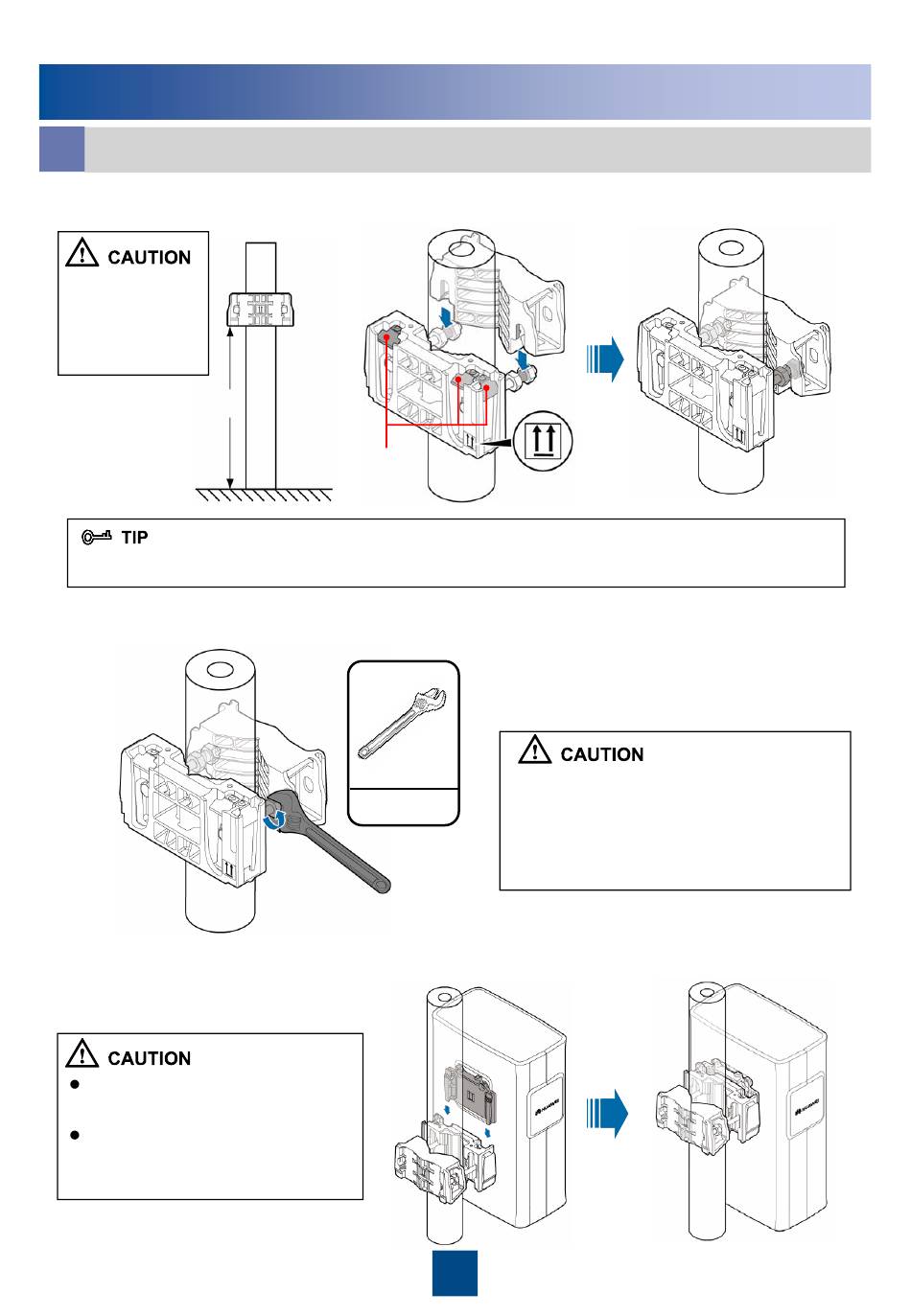

Installing a Single RRU on a Metal Pole
1. Install the main bracket.
When installing the
main bracket,
ensure that the
contact piece on
the bracket is fixed.
1200 mm～1600 mm
You may fit one end of the auxiliary bracket on one dual-nut bolt assembly and then the other end on the
other dual-nut bolt assembly during the installation.
2. Use an adjustable wrench to tighten the nut until the fastening torque is 40 N·m. In
this way, the main and auxiliary brackets are secured on the pole.
3. Install the RRU on the main bracket. When you hear click sound, you can infer that
the RRU is in position.
The weight-bearing capacity of the RF
ports at the bottom of the RRU is low. Do
not place the RRU at its bottom.
During the operation, place the foam
pad or cardboard under the RRU to
prevent any damage to the housing of
the RRU.
All manuals and user guides at all-guides.com
Contact piece
40N•m
8
Fasten the two dual-nut bolt assemblies
alternatively. After the brackets are secure,
use a tape to measure the spacing between
the main bracket and the auxiliary bracket at
the two sides and ensure that the spacing is
the same.
