- Page 1 TYPE 10226.3EdQW 10226.3EdQX 10226.3EdQS MODEL ASC200WH ASC200SS ASC200BL INSTRUCTION MANUAL BUILT-IN ELECTRIC OVEN IO-CBI-0620 / 8069847 (02.2018 / v1)
- Page 2 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Operation ........................... 10 Baking in the oven – practical hints ................13 Test dishes ........................15 Cleaning and maintenance ....................17 Installation instructions ....................20 Specifications ........................23... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... - Page 5 SAFETY INSTRUCTIONS Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock. You should not use steam cleaning devices to clean the appliance. ● Ensure that small items of household equipment, including connection leads, do not touch the hot oven as the insulation material of this equipment is usually not resistant to high temperatures. ● Do not leave the oven unattended when frying. Oils and fats may catch fire due to overheating or boiling over. ● Do not put pans weighing over 15 kg on the opened door of the oven. ● Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
- Page 6 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: Do not uncover the pan too often (a watched pot never boils!).
- Page 7 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpacking, be delivered to a collection and please dispose of all elements recycling centre for electric and of packaging in a way that will...
-
Page 8: Description Of The Appliance

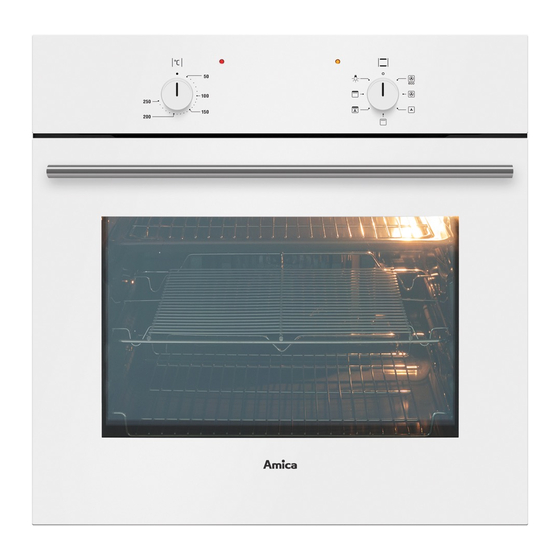

DESCRIPTION OF THE APPLIANCE Oven Indicator Thermostat Lamp L Lamp R Function Selector Thermostat Control Control... - Page 9 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Baking tray Grill grate (drying rack) Grill Rack Wire Shelf *All images are for indication only; please refer to your individual unit for actual item.
-
Page 10: Operation
OPERATION Before using the appliance for the first time First start – preliminary cleaning To remove residues of fat and oil accumulated during the manufacturing process and dust accumulated during storage and transport, the preliminary cleaning of the equipment should be carried out. This way our health is protected and tasty cakes and roasts are provided. - Page 11 OPERATION Oven is off Oven functions and operation. Fan oven The oven can be heated up using the top Using the circular element and the fan heater, the grill or the ultra-fan heater. Opera- with a temperature between 50°C and tion of the oven is controlled by the Function 250°C, this cooking function blows the Selector Control – to set a required function air into and around the oven cavity.
- Page 12 OPERATION Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill heater. Switching on the oven is indicated by two signal lights, R, L, turning on. The R light In order to switch on the grill you need to: turned on means the oven is working.
-
Page 13: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the baking trays which were provided with your cooker; it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;... - Page 14 BAKING IN THE OVEN – PRACTICAL HINTS Type of Oven Temperature Level Time dish functions (min.) °C 155 - 170 25 - 40 160 - 180 2 - 3 45 - 60 2 - 3 60 - 70 230 - 250 14 - 18 160 - 180 120 - 160...
-
Page 15: Test Dishes
TEST DISHES. According to standard EN 60350-1. Baking Type of dish Accessory Level Type Temperature Baking of heating time (min.) Baking tray 160 - 170 25 - 40 Baking tray 155 - 170 25 - 40 Baking tray 155 - 170 25 - 40 Small cakes 2 + 4... - Page 16 TEST DISHES. According to standard EN 60350-1. Grilling Type of dish Accessory Level Type Temperature Time of heating (min.) Wire rack 1,5 - 2,5 White bread toast Wire rack 2 - 3 Wire rack + 4 - wire rack roasting tray 1st side 10 - 15 Beef burgers 3 - roasting...
-
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Important! nance of your cooker you can have a sig- Do not use any abrasive agents, nificant influence on the continuing fault-free harsh detergents or abrasive ob- operation of your appliance. jects for cleaning. Before you start cleaning, the cooker must Only use warm water with a small be switched off and you should ensure amount of dishwashing liquid to... - Page 18 CLEANING AND MAINTENANCE Door removal Removing the inner panel 1. Using a flat screwdriver unhook the up- In order to obtain easier access to the oven per door slat, prying it gently on the sides chamber for cleaning, it is possible to remove (fig. B). the door. To do this, tilt the safety catch part 2. Pull the upper door slat loose. (fig. B, C) of the hinge upwards (fig. A). Close the door lightly, lift and pull it out towards you.
- Page 19 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat Replacement of the oven light bulb (in the lower section of the door). Re- move the inner panel (fig. D). In order to avoid the possibil- 4. Clean the panel with warm water with ity of an electric shock ensure some cleaning agent added.
-
Page 20: Installation Instructions
INSTALLATION INSTRUCTIONS The installation and technical assistance Inserting the oven in the cabinet must only be performed by qualified staff. Carefully read the safety instructions in Make an opening with the dimensions this manual before using the oven. Incor- given in the diagram for the oven to be rect installation, maintenance, assistance fitted. - Page 21 INSTALLATION INSTRUCTIONS Electrical connection Warning: This appliance must be earthed. The appliance must be installed by a com- petent electrician using a double pole control unit of 16 ampere minimum capacity with 3 mm minimum contact separation at all poles. We recommend that the appliance is con- nected by a qualified electrician who is mem- ber of the N.C.E.I.C.
- Page 22 INSTALLATION INSTRUCTIONS Technical assistance In case your oven requires technical assis- tance and/or spare parts, contact the dealer or the authorised technical assistance centre nearest to you. In this case also it is necessary to state all the appliance data on the rating plate, such as: model, serial number, etc, rating plate placed on the back of the oven and on the last page of the instructions booklet or warranty card.
-
Page 23: Specifications
SPECIFICATIONS Type / Model 10226.3EdQW / ASC200WH 10226.3EdQX / ASC200SS 10226.3EdQS / ASC200BL Oven dimensions (H/W/D) 595 x 595 x 575 mm Rated voltage 230 V ~50 Hz Total power 2800 W Fan oven 2000 W Top heater 900 W... - Page 24 The information in the product data sheet is given in accordance with the Commission delegated Regulation (EU) No 65/2014 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of household ovens and range hoods Supplier name Amica S.A. ASC200WH ASC200SS ASC200BL Model identifier 10226.3EdQW...
- Page 25 PRODUCT INFORMATION Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household ovens ASC200WH ASC200SS ASC200BL Model identifier 10226.3EdQW 10226.3EdQX 10226.3EdQS Oven type (electricity or gas)
- Page 28 Amica S.A. ul.Mickiewicza 52, 64-510 Wronki, Poland tel. +48 67 25 46 100, fax +48 67 25 40 320 www.amica.pl...
