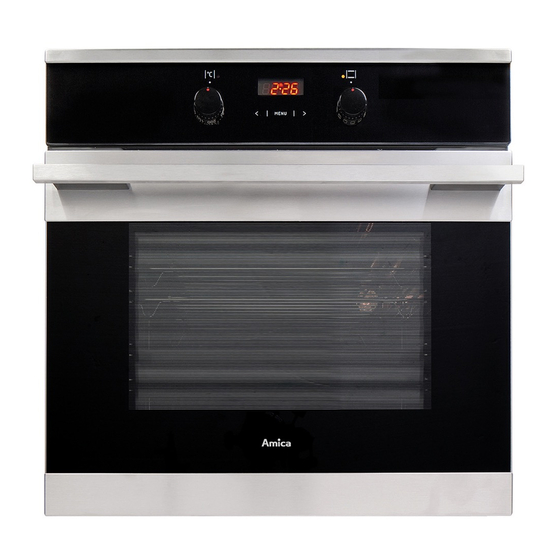

TYPE 10157.3eETsPrDHbJX MODEL ASC360SS/1 INSTRUCTION MANUAL BUILT-IN ELECTRIC OVEN IO-CBI-1336 / 8506494 (06.2019 / v2)
Page 2
DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Operation ........................... 10 Baking in the oven – practical hints ................16 Test dishes ........................19 Cleaning and maintenance ....................21 Installation instructions ....................26 Specifications ........................29...
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or...
Page 5
SAFETY INSTRUCTIONS Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock. During the pyrolytic oven cleaning process the oven cham- ber can reach a very high temperature. Consequently, the appliance outer surfaces can heat up more than usual, so keep children away at all times. Danger of burns! Hot steam may escape when you open the oven door.
Page 6
HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: Do not uncover the pan too often (a watched pot never boils!).
Page 7
DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpacking, be delivered to a collection and please dispose of all elements recycling centre for electric and of packaging in a way that will...
DESCRIPTION OF THE APPLIANCE Oven Indicator Lamp R Thermostat Lamp L Door Lock Lamp Function Selector Thermostat Control Control Electronic Programmer...
Page 9
SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Baking tray Grill grate (drying rack) Grill Rack Wire Shelf *All images are for indication only; please refer to your individual unit for actual item.
OPERATION Before using the appliance for the Important! first time In ovens equipped with the electronic pro- grammer, the time “0.00” will start flashing First start – preliminary cleaning in the display field upon connection to the To remove residues of fat and oil accumulated power supply.
Page 11
OPERATION Electronic programmer Timer The timer can be activated at any time, re- – function symbols gardless of the status of other functions. The timer can be set for from 1 minute to up to 23 – Mode sensor MENU hours and 59 minutes.
Page 12
OPERATION Semi–automatic operation Automatic operation If the oven is to be switched off at a given If the oven is to be switched on for a specified time, then you should: period of time and switched off at a fixed hour then you should set the operation time and Set the oven function knob and the tem- the operation end time: perature regulator knob to the setting at which you want the oven to operate.
Page 13
OPERATION Change the timer beeps The function AUTO is now on; the oven will start operating from the point when the differ- The tone of the timer beeps may be changed ence between the set operation end time and as follows: the operation duration time occurs (e.g. the operation time is set to 1 hour, the operation press sensors <...
Page 14
OPERATION Oven functions and operation. Oven is off Defrost The oven can be heated up using the top and Only fan is on and all heaters are off. bottom heater, the grill or the ultra-fan heater. Operation of the oven is controlled by the Rapid Preheating Function Selector Control – to set a required Ring heater and roaster on. Use to function you should turn the Control to the preheat the oven.
Page 15
OPERATION Top heater, bottom heater and fan Switching on the oven is indicated by two in- This setting is most suitable for baking dicator lamps, R and L. The R lamp turned on cakes. Convection baking (recom- means the oven is working. If the L lamp goes mended for baking).
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the baking trays which were provided with your cooker; it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;...
Page 17
BAKING IN THE OVEN – PRACTICAL HINTS ECO Heating ECO Heating an optimised heating function designed to save energy when preparing food. You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended. Do not change the temperature setting and do not open the oven door during ...
Page 18
BAKING IN THE OVEN – PRACTICAL HINTS Type of Oven Temperature Level Time dish functions (min.) °C 160 - 200 2 - 3 30 - 50 160 - 170 25 - 40 155 - 170 25 - 40 200 - 230 2 - 3 15 - 25 210 - 220...
TEST DISHES. According to standard EN 60350-1. Baking Type of dish Accessory Level Type Temperature Baking of heating time (min.) Baking tray 160 - 170 25 - 40 Baking tray 155 - 170 25 - 40 Baking tray 155 - 170 25 - 40 Small cakes 2 + 4...
Page 20
TEST DISHES. According to standard EN 60350-1. Grilling Type of dish Accessory Level Type Temperature Time of heating (min.) Wire rack 1,5 - 2,5 White bread toast Wire rack 2 - 3 Wire rack + 4 - wire rack roasting tray 1st side 10 - 15 Beef burgers 3 - roasting...
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- ● Oven is equipped with easily removable nance of your cooker you can have a sig- wire shelf supports. To remove them for nificant influence on the continuing fault-free washing, pull the front catch, then tilt the operation of your appliance. support and remove from the rear catch.
Page 22
CLEANING AND MAINTENANCE Door removal Removing the inner panel 1. Using a cross-head screwdriver undo In order to obtain easier access to the oven the screws in the upper door slat (fig. B). chamber for cleaning, it is possible to remove 2. Using a flat screwdriver remove the up- the door. To do this, tilt the safety catch part per door slat, prying it gently on the sides of the hinge upwards (fig. A). Close the door (fig. B, C).
Page 23
CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat Replacement of the oven light bulb (in the lower section of the door). Important! Risk of damage to glass In order to avoid the possibil- panel mounting. Do not lift the glass ity of an electric shock ensure panel up but pull it out.
Page 24
CLEANING AND MAINTENANCE Pyrolytic cleaning Important! During the pyrolytic oven cleaning process the oven chamber can reach a very high Oven pyrolytic self-cleaning. The oven heats temperature. Consequently, the appliance up to a temperature of about 480°C. Grilling or outer surfaces can heat up more than usual, baking residue is burnt into an easy to remove so keep children away at all times.
Page 25
CLEANING AND MAINTENANCE Important! Touch MENU again. The display will When you start the pyrolytic cleaning pro- flash Pdur. cess and inadvertently open the oven door, the process will stop and door lock indica- 88 08 tor will be flashing. To restart the pyrolytic cleaning turn the selector knob to 0and re- enter the desired settings.
INSTALLATION INSTRUCTIONS The installation and technical assistance Inserting the oven in the cabinet must only be performed by qualified staff. Carefully read the safety instructions in Make an opening with the dimensions this manual before using the oven. Incor- given in the diagram for the oven to be rect installation, maintenance, assistance fitted.
Page 27
INSTALLATION INSTRUCTIONS Electrical connection Connection diagram Caution! Voltage of heating elements 230V. Caution! In the event of any connection the safety Warning: This appliance must be earthed. wire must be connected to the PE terminal. All electrical work should be carried out by a suitably qualified and authorised electrician.
Page 28
INSTALLATION INSTRUCTIONS Technical assistance In case your oven requires technical assis- tance and/or spare parts, contact the dealer or the authorised technical assistance centre nearest to you. In this case also it is necessary to state all the appliance data on the rating plate, such as: model, serial number, etc, rating plate placed on the back of the oven and on the last page of the instructions booklet or warranty card.
SPECIFICATIONS Type / Model 10157.3eETsPrDHbJX / ASC360SS/1 Oven dimensions (H/W/D) 595 x 595 x 575 mm Rated voltage 230 V ~50 Hz Total power 2800 W Top heater 900 W Bottom heter 800 W Fan oven 1850 W Grill 1900 W...
Page 30
The information in the product data sheet is given in accordance with the Commission delegated Regulation (EU) No 65/2014 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of household ovens and range hoods Supplier name Amica S.A. ASC360SS/1 Model identifier 10157.3eETsPrDHbJX...
Page 31
PRODUCT INFORMATION Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Domestic ovens ASC360SS/1 Model identifier 10157.3eETsPrDHbJX Oven type (electricity or gas) Electric...
