- Page 1 TYPE 10147.3TsPrDbHaScJXSp MODEL ASC460SS INSTRUCTION MANUAL BUILT-IN ELECTRIC OVEN IO-CBI-0702 / 8072602 (03.2018 / v1)
- Page 2 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Operation ........................... 10 Baking in the oven – practical hints ................17 Test dishes ........................19 Cleaning and maintenance ....................21 Installation instructions ....................27 Specifications ........................30... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... - Page 5 SAFETY INSTRUCTIONS Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock. During the pyrolytic oven cleaning process the oven cham- ber can reach a very high temperature. Consequently, the appliance outer surfaces can heat up more than usual, so keep children away at all times. Danger of burns! Hot steam may escape when you open the oven door.
- Page 6 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: Do not uncover the pan too often (a watched pot never boils!).
- Page 7 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpacking, be delivered to a collection and please dispose of all elements recycling centre for electric and of packaging in a way that will...
-
Page 8: Description Of The Appliance

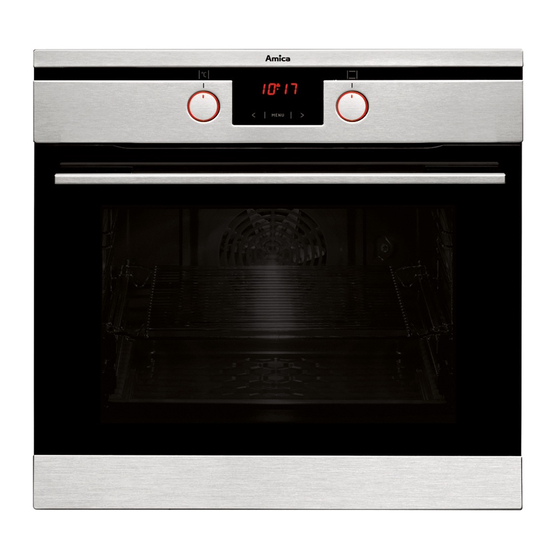

DESCRIPTION OF THE APPLIANCE Electronic Programmer Thermostat Lamp Door Lock Lamp Function Selector Thermostat Control Control... - Page 9 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Baking tray Grill grate (drying rack) Grill Rack Wire Shelf *All images are for indication only; please refer to your individual unit for actual item.
-
Page 10: Operation
OPERATION Before using the appliance for the Important! first time In ovens equipped with the electronic pro- grammer, the time “0.00” will start flashing First start – preliminary cleaning in the display field upon connection to the To remove residues of fat and oil accumulated power supply. - Page 11 OPERATION Electronic programmer Timer The timer can be activated at any time, re- gardless of the status of other functions. The – function symbols timer can be set for from 1 minute to up to 23 hours and 59 minutes. – Mode sensor To set the timer you should: MENU <...
- Page 12 OPERATION Semi–automatic operation Automatic operation If the oven is to be switched off at a given If the oven is to be switched on for a specified time, then you should: period of time and switched off at a fixed hour then you should set the operation time and Set the oven function knob and the tem- the operation end time: perature regulator knob to the setting at which you want the oven to operate.
- Page 13 OPERATION Change the timer beeps The function AUTO is now on; the oven will start operating from the point when the differ- The tone of the timer beeps may be changed ence between the set operation end time and as follows: the operation duration time occurs (e.g. the operation time is set to 1 hour, the operation press sensors <...
- Page 14 OPERATION Oven functions and operation. Oven is off Light The oven can be heated up using the top and The oven light will be turned on. bottom heater, the grill or the ultra-fan heater. Operation of the oven is controlled by the Pyrolytic cleaning.
- Page 15 OPERATION Bottom heater Switching on the oven is indicated by Ther- This function radiates the heat from the mostat Lamp. If the Lamp goes out, it means the oven has reached the set temperature. bottom element. Baking of cakes from the bottom until done (moist cakes If a recipe recommends placing dishes in a with fruit stuffing).
- Page 16 Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill heater. In order to switch on the grill you need to: Set the Function Selector Control to the position marked grill. Heat the oven for approx. 5 minutes (with the oven door shut).
-
Page 17: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the baking trays which were provided with your cooker; it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;... - Page 18 BAKING IN THE OVEN – PRACTICAL HINTS Type of Oven Temperature Level Time dish functions (min.) °C 160 - 200 2 - 3 30 - 50 160 - 170 25 - 40 155 - 170 25 - 40 200 - 230 2 - 3 15 - 25 210 - 220 45 - 60 160 - 180 2 - 3...
-
Page 19: Test Dishes
TEST DISHES. According to standard EN 60350-1. Baking Type of dish Accessory Level Type Temperature Baking of heating time (min.) Baking tray 160 - 170 25 - 40 Baking tray 155 - 170 25 - 40 Baking tray 155 - 170 25 - 40 Small cakes 2 + 4 Baking tray 2 - baking tray 155 - 170 25 - 50... - Page 20 TEST DISHES. According to standard EN 60350-1. Grilling Type of dish Accessory Level Type Temperature Time of heating (min.) Wire rack 250 1,5 - 2,5 White bread toast Wire rack 250 2 - 3 Wire rack + 4 - wire rack roasting tray 1st side 10 - 15 Beef burgers 3 - roasting...
-
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- ● Oven is equipped with easily removable nance of your cooker you can have a sig- wire shelf supports. To remove them for nificant influence on the continuing fault-free washing, pull the front catch, then tilt the operation of your appliance. support and remove from the rear catch. - Page 22 CLEANING AND MAINTENANCE Oven have stainless steel sliding tel- Replacement of the oven light bulb escopic runners attached to the wire shelf supports. The telescopic runners should In order to avoid the possibil- be removed and cleaned together with ity of an electric shock ensure the wire shelf supports.
- Page 23 CLEANING AND MAINTENANCE Door removal Removing the inner panel 1. Using a cross-head screwdriver undo In order to obtain easier access to the oven the screws in the upper door slat (fig. B). chamber for cleaning, it is possible to remove 2. Using a flat screwdriver remove the up- the door. To do this, tilt the safety catch part per door slat, prying it gently on the sides of the hinge upwards (fig. A). Close the door (fig. B, C).
- Page 24 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat (in the lower section of the door). Important! Risk of damage to glass panel mounting. Do not lift the glass panel up but pull it out. Remove the inner panel (fig. D). 4. Clean the panel with warm water with some cleaning agent added.
- Page 25 CLEANING AND MAINTENANCE Pyrolytic cleaning Important! During the pyrolytic oven cleaning process the oven chamber can reach a very high Oven pyrolytic self-cleaning. The oven heats temperature. Consequently, the appliance up to a temperature of about 480°C. Grilling or outer surfaces can heat up more than usual, baking residue is burnt into an easy to remove so keep children away at all times.
- Page 26 CLEANING AND MAINTENANCE Important! Touch MENU again. The display will When you start the pyrolytic cleaning pro- flash Pdur. cess and inadvertently open the oven door, the process will stop and door lock indica- 88 08 tor will be flashing. To restart the pyrolytic cleaning turn the selector knob to 0and re- enter the desired settings.
-
Page 27: Installation Instructions
INSTALLATION INSTRUCTIONS The installation and technical assistance Inserting the oven in the cabinet must only be performed by qualified staff. Carefully read the safety instructions in Make an opening with the dimensions this manual before using the oven. Incor- given in the diagram for the oven to be rect installation, maintenance, assistance fitted. - Page 28 INSTALLATION INSTRUCTIONS Electrical connection Warning: This appliance must be earthed. The appliance must be installed by a com- petent electrician using a double pole control unit of 16 ampere minimum capacity with 3 mm minimum contact separation at all poles. We recommend that the appliance is con- nected by a qualified electrician who is mem- ber of the N.C.E.I.C.
- Page 29 INSTALLATION INSTRUCTIONS Technical assistance In case your oven requires technical assis- tance and/or spare parts, contact the dealer or the authorised technical assistance centre nearest to you. In this case also it is necessary to state all the appliance data on the rating plate, such as: model, serial number, etc, rating plate placed on the back of the oven and on the last page of the instructions booklet or warranty card.
-
Page 30: Specifications
SPECIFICATIONS Type / Model 10147.3TsPrDbHaScJXSp / ASC460SS Oven dimensions (H/W/D) 595 x 595 x 575 mm Rated voltage 230 V ~50 Hz Total power 2800 W Top heater 900 W Bottom heter 800 W Fan oven 1850 W Grill 1900 W Full grill 2800 W Basic Information: The product meets the requirements of European standards EN 60335- 1; EN60335-2-6. The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1. These values are defined with a standard workload a with the functions active:... - Page 31 PRODUCT FICHE The information in the product data sheet is given in accordance with the Commission delegated Regulation (EU) No 65/2014 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of household ovens and range hoods Supplier name Amica S.A. ASC460SS Model identifier 10147.3TsPrDbHaScJXSp Energy efficiency index (EEI cavity) 106,1 Energy efficiency class...
- Page 32 PRODUCT INFORMATION Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco - design requirements for household ovens, hobs and range hoods Domestic ovens ASC460SS Model identifier 10147.3TsPrDbHaScJXSp Oven type (electricity or gas) Electric Appliance weight [kg] 32,4 Number of cavities Source of heat for each cavity (electricity or gas)
- Page 36 Amica S.A. ul.Mickiewicza 52, 64-510 Wronki, Poland tel. +48 67 25 46 100, fax +48 67 25 40 320 www.amica.pl...
