Kogan KAMESHWFI6A User Manual

Kogan KAMESHWFI6A User Manual

Ax1800 whole-home mesh wi-fi 6 dual-band system (1 pack)
Hide thumbs Also See for KAMESHWFI6A:
Table of Contents

Advertisement

Quick Links

Download this manual
AX1800 WHOLE-HOME MESH
WI-FI 6 DUAL-BAND SYSTEM
(1 PACK)
KAMESHWFI6A

Advertisement

Table of Contents
loading

Related Manuals for Kogan KAMESHWFI6A

Summary of Contents for Kogan KAMESHWFI6A

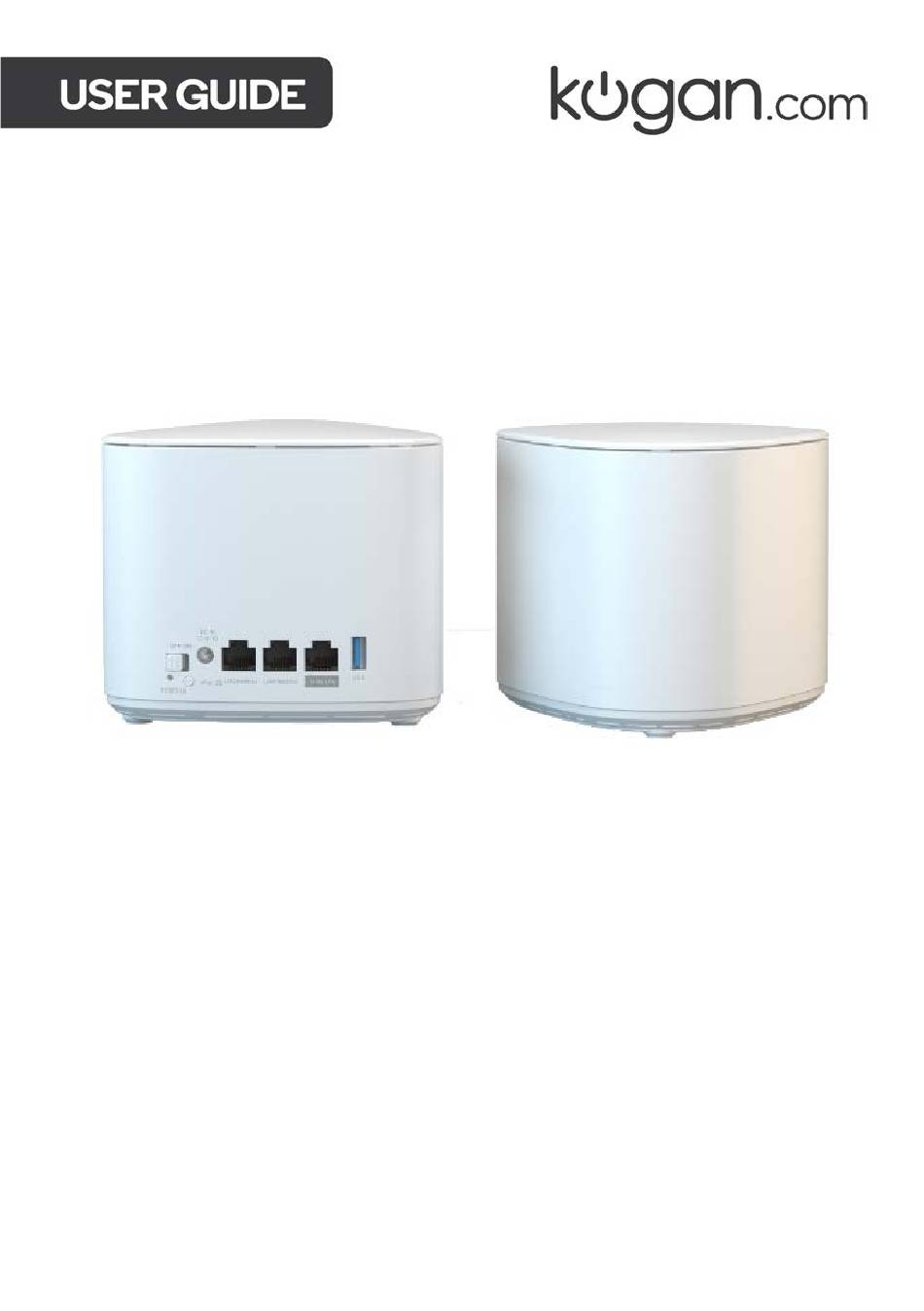

  • Page 1 AX1800 WHOLE-HOME MESH WI-FI 6 DUAL-BAND SYSTEM (1 PACK) KAMESHWFI6A...
  • Page 3 OVERVIEW LED indicator DC power input Power switch Reset button Pair button LAN ports USB port (x2) Touch-link pad WAN port...

  • Page 4: Installation

    INSTALLATION Install the Kogan Mesh App Download the Kogan Mesh App on your mobile device by searching for “Kogan Mesh” in App Store or Google Play or by scanning the OR code. Then, install the App.
  • Page 5 Connect the Primary node: The first node you set up functions as the primary node, while the rest are referred to as the secondary nodes. Internet Ethernet jack Modem Power off your modem and remove its battery (if any). Use the included Ethernet cable to connect to a LAN port on your modem to the WAN/LAN port on one of the nodes.
  • Page 6 The SSID and password are specified on the bottom label of any node. Run the Kogan Mesh App and follow the onscreen instructions to connect the primary node to the internet. After the primary node is connected to the internet,...
  • Page 7 Connect the secondary nodes to the internet Place each node: • In a high and open area. • Ensure that there are less than two walls between any two nodes. • Keep your nodes away from electronics with strong interference, such as microwave ovens, induction cookers and refrigerators.
  • Page 8 REGISTERING After completing the setup and installation using the Kogan Mesh App, a login prompt page appears. You can authorize the Kogan Mesh App to use Google+, alternatively press the “Other” button to create a login using your email address.
  • Page 9 If you miss the page above, tap on the upper-left corner and tap Login. Then choose one type of account to login. To Register an account Run the Kogan Mesh App and tap in the upper-right corner. Tap Login. Tap Register on the upper-right corner.

  • Page 11: Management Type

    MANAGEMENT TYPE This whole home mesh Wi-Fi system supports the Kogan Mesh App for local and remote management. You can choose either of them as needed. Local Management Local management indicates that you can use the Kogan Mesh App to manage your network after connecting your smart phone to the Wi-Fi network.
  • Page 12 MY WI-FI After completing the internet settings, you can view the status of your nodes, real-time upload/download speed and connected devices and manage your network. My Profile Wi-Fi Name Real-time download speed Real-time upload speed Node name Total connected devices Advanced Settings...
  • Page 13 To check or manage your nodes Tap the Wi-Fi name in the upper-right corner to enter the following page. All nodes in a network share the same Wi-Fi name. Wi-Fi Name Tap here to add manageable devices. To view details of the internet settings Tap the icon on the home page of the App.
  • Page 14 To view details of the nodes Tap the one of the node icons on the home page of the App to see details of the corresponding node. Choose this to delete the node from your Wi-Fi network. Choose this to change the location information of the node.
  • Page 15 To view the connected devices Tap the icon on the home page of the App. If you want to check the details of a device or manage more closely, choose the device. This indicates the frequency band of the Wi-Fi network the device connects.
  • Page 16 Choose this to rename the device, such as “Jack’s iPhone”. Choose this to create a group or add the connected device to a group for the parental control function. Choose this to check the details of the connected device. Choose this to blacklist the device. The devices in the blacklist cannot access the internet via the nova network.
  • Page 17 MY PROFILE Tap the icon in the upper-left corner of the home page (My Wi-Fi) page to enter the following page. Choose this to log in or register a account. Choose this to see FAQ or send feedback. Choose this to clear the cache for better performance.

  • Page 18: Wireless Settings

    WIRELESS SETTINGS In this section, you can change the Wi-Fi name and password of your network. To change your Wi-Fi name and password Choose Settings > Wireless Settings to enter the configuration page. Change the Wi-Fi name and password as required. Tap Save.

  • Page 19: Guest Network

    GUEST NETWORK The Guest Network function allows you to create a separate network for your guests to secure the main network. Procedure: Choose Settings > Guest Network to enter the configuration page. Set the button to the enabled state Change the Wi-Fi name, password and validity period as required. Tap Save.

  • Page 20: Parental Control

    PARENTAL CONTROL The Parental Control function allows you to create a healthy time session for internet access for your family members. Procedure: Choose Setting > Parental Control to enter the configuration page. Create a group. • Tap Add Group. • Enter a group name, which is Family in this example and tap Next. •...
  • Page 21 to change the rules. indicates that the devices in the group are allowed to access the internet. indicates that the devices in the group are not allowed to access the internet.
  • Page 22 Specify a period for the rule. • Choose the group. • Tap Period. • Tap Add Period. • Specify a Period Name, Start Time, End Time and the dates from when the rule takes effect. • Tap Save.

  • Page 23: Internet Settings

    Generally, you complete the internet settings by following the quick setup wizard of the Kogan Mesh App when you setup the nodes the first time. If your internet connection type or parameters are changed, you can set them again here to enable your nodes to access the internet.
  • Page 24 Setting up PPPoE Choose Settings > Internet Settings to enter the configuration page. Tap Connection Type. Select PPPoE. Enter the PPPoE username and password provided by your ISP. If a service name and a server name are provided, tap Advanced and enter them. Tap Save.
  • Page 25 Setting up DHCP Choose Settings > Internet Settings to enter the configuration page. Tap Connection Type. Select DHCP. Tap Save. Setting up Static IP Address Choose Settings > Internet Settings to enter the configuration page. Tap Connection Type. Select Static IP Address. Enter IP Address, Subnet Mask, Default Gateway and Primary DNS Server.
  • Page 26 Setting up Bridge Ensure that the one of the nodes in your network is connected to your router with internet accessibility using an Ethernet cable. Choose Settings > Internet Settings to enter the configuration page. Tap Connection Type. Select Bridge. Tap Save.
  • Page 27 The QoS function prioritizes gaming and web browsing activities. To enable the QoS function Choose Settings > QoS to enter the configuration page. Set the button to the enabled state Enter download and upload speed based on your bandwidth value. If you don’t know the value, tap Online Test or ask your ISP.
  • Page 28 Note: The maximum number of the nodes supported is 7. To add another nova node into your existing nova network. Choose Settings > Add Kogan Mesh to enter the configuration page. Follow the on-screen guide to complete the settings.

  • Page 30: Fast Roaming

    FAST ROAMING The Fast Roaming function lets you enjoy uninterrupted internet service when moving around your house. To enable the Fast Roaming function Choose Settings > Fast Roaming to enter the configuration page. Set the button to the enabled state...
  • Page 31 SMART ASSISTANT With this function enabled, the mobile device used to do the setup, such as your smart phone, is connected to 2.4GHz Wi-Fi network for 30 minutes. This is to allow the mobile device to discover and set up smart home devices that only support 2.4GHz Wi-Fi networks. To enable the Smart Assistant function Choose Settings >...

  • Page 32: Port Forwarding

    PORT FORWARDING The Port Forwarding function enables users to access your LAN resources, such as resources on the web server or FTP server, through the internet. Procedure: Choose Settings > Port Forwarding to enter the configuration page. Tap Add rule. Select the device to which the rule applies.
  • Page 33 After completing the settings, internet users can visit “Protocol name:/ /WAN port IP address of the nova node: External port” to access LAN resources. Notes: • Ensure that the WAN IP address of the node is a public IP address and the internal port you entered is correct.
  • Page 34 UPNP After the UPnP function is enabled, it can automatically enable ports for UPnP-supported programs, such as P2P and gaming software, in the internal network for a smoother network experience. To enable/disable the UPnP function: Choose Settings > UPnP to enter the configuration page. Set the button to the enabled state or the disabled state as required.

  • Page 35: Lan Settings

    LAN SETTINGS The LAN Settings function allows you to change the IP addresses assigned to all devices that are connected to the network. To change the LAN IP address of the node: Choose Settings > Lan Settings to enter the configuration page. Select a LAN IP address for the node.
  • Page 36 If clients connected to the network cannot access the websites using the domain names, but the IP address works, it may be due to a DNS resolution problem. You can try changing the DNS settings to solve the problem. To change the DNS settings: Choose Settings >...

  • Page 37: Firmware Upgrade

    FIRMWARE UPGRADE Update the firmware whenever the App prompts a new firmware version is available. To update the firmware: Choose Settings > Firmware Upgrade to enter the configuration page. Tap Detect Latest Firmware. icon appears if a new firmware version is detected. Tap Update now to upgrade these nodes.
  • Page 38 Note: Do not remove the power supply of the nodes when upgrading.

  • Page 39: Maintenance Schedule

    MAINTENANCE SCHEDULE The Maintenance Schedule function makes the nodes reboot at a specified time to keep the nodes in good condition. To set up the Maintenance Schedule function: Choose Settings > Maintenance Schedule to enter the configuration page. Set the button to the enabled state Select a System Reboot Time.
  • Page 40 ACCOUNT AUTHORIZATION You can authorize your family members to manage your network. An authorized account has the same permission as the bound account except for authorizing other accounts. To authorize another account: Choose Settings > Account Authorization to enter the configuration page. Tap Add an account.
  • Page 41 Tap here to authorize another account. Tap here to delete the authorized account.
  • Page 42 Q1: How can I remove a node from my Wi-Fi network? A1: Tap the node on the Kogan Mesh App, tap ... in the upper-left corner and choose Delete. Note: Removing operation restores the node to factory settings. Q2: Can I add another new set of nodes to expand my network coverage? A2: Yes.

  • Page 43: Operation

    OPERATION LED Indicator Description Solid purple The device is being activated. Solid blue Internet is connected. Primary node Touch link is in progress. (router) Flashing blue Router is being paired with other nodes. Slowly flashing red No access to the Internet. Rapidly flashing red The device is disconnected.
  • Page 44 LAN wired connection If your wireless signal is weak due to a complex environment, (too many obstructions etc.) you can connect the secondary node(s) through LAN (local area network) wired connection. Power off your modem and remove its battery (if any). Connect an ethernet cable (not included) to a LAN port on the primary node.
  • Page 45 Touch-link settings To access the Touch-link network configuration: Log in to 92.168.10.1 or ap.setup.com on a browser, then choose “Advanced” and select “Guest Wi-Fi”. The default Guest Wi-Fi Mode is Touch-Link. The connection duration can be set to 30s, 120s and 240s, the default is 120s.
  • Page 46 Q1. Why doesn't the login page appear after entering http://ap.setup? • Ensure your computer is set to obtain IP address automatically. • Ensure you have entered the URL correctly. • Reboot your device and try again. Q2. What can I do if I cannot access the Internet? •...
  • Page 47 NOTES...
  • Page 48 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
