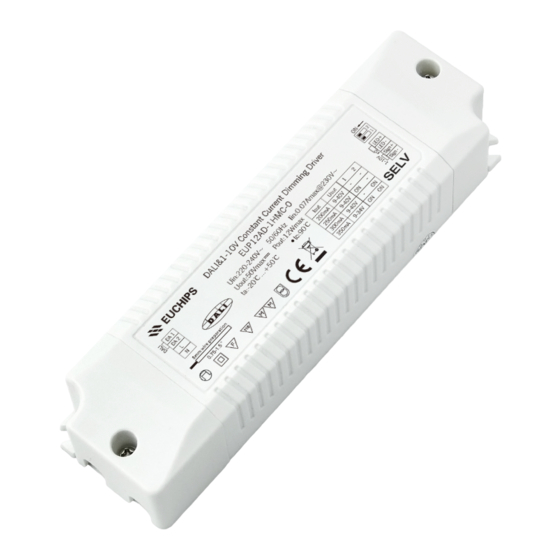

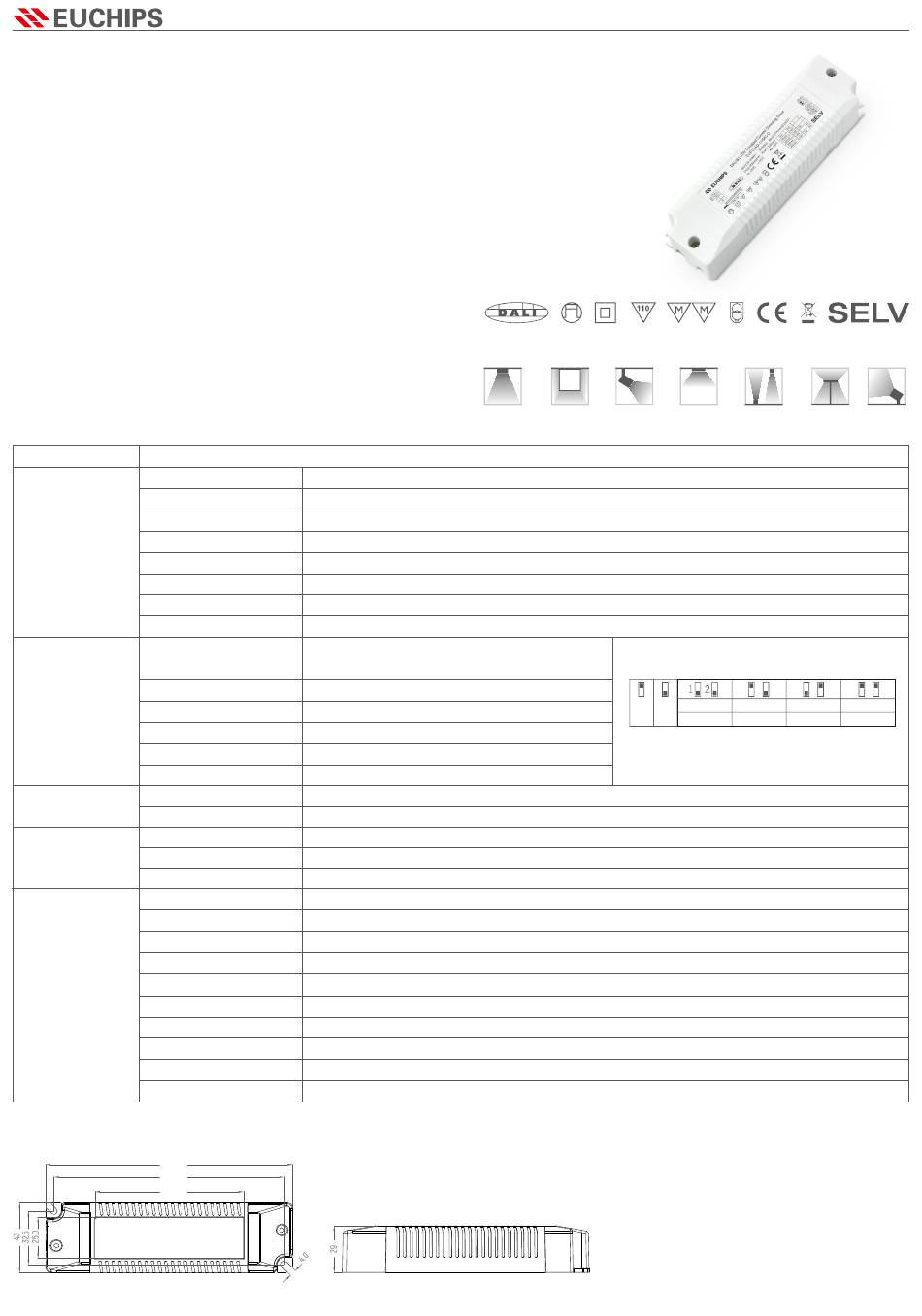

EUCHIPS EUP12AD-1HMC-0 Quick Start Manual

EUP12AD-1HMC-0
(Product No.:100100061101)
Summary
EUP12AD-1HMC-0 is a 12W AC/DC constant current mode output LED driver featuring the multiple levels
selectable by DIP switch , complies with DALI standard protocol IEC 62386,and provides multiple
dimming function (DALI,1-10V active signal ,PWM, adjustable resistance, and Touch DIM) to achieve a
smooth dimming effect.
Product Features
·Single channel output, output current level selectable by DIP S.W.
·Support a variety of dimming mode（DALI/1-10V active signal/adjustable resistance/
PWM/Touch DIM）
·Built-in active PFC function
·Class 2 power supply. Full protective plastic housing
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, over temperature
·Suitable for indoor LED lighting application, such as down light, spot light,panel light, and so on
Technical Paramaters
Model
EUP12AD-1HMC-0
Efficiency
Voltage
Frequency Range(Hz)
Power Factor
Input
THD(full load)
AC Current(max)
Standby power
Inrush Current(max)
Current(mA)/Voltage (VDC)
Power(W)
Ripple Current
Output
Channel
Current Tolerance
No load output voltage
Turn on delay Time
Dimming Type
Function
Priority order
Short Circuit
Protection Over Load
Over Temperature
Working Temp.
Storage Temp., Humidity
tc
Material
Others
IP Rating
Lifetime
Warranty Condition
Switch Cycle
Packing(weight)
Dimension
Dimension(mm)
150.0
140.5
90.5
User's manual: 2019-9
Application
Downlight
>85%@230VAC,Full load
220VAC-240VAC
50/60Hz
≥0.95@230VAC,Full load
<10%@230VAC, Full load
0.07Amax@230VAC
<0.5W
Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC
200mA/9-40VDC/8W 250mA/9-40VDC/10W
300mA/9-40VDC/12W 350mA/9-34VDC/11.9W
<3%
1
±5%
50V Max
<1.5s, at230Vac
DALI/1-10V active signal/adjustable resistance/PWM/Touch DIM
DALI>(1-10V active signal/adjustable resistance/PWM)> Touch DIM
Close output, recovers automatically after fault removed
When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
Shut down the output, recovers automatically when temp. back to normal.
-20℃~50℃
-40℃~85℃, 20-90%RH
90℃
PC
IP20
50,000h@tc:80℃
5 Years
>100,000 tims
Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H)
150*43*29mm（L*W*H）
1/2
DALI&0/1-10V Constant Current Dimming Driver
Panel Light Spotlight Ceiling Light
Current Selection Table
200mA
ON OFF
9-40V
Remark: Function default setting is: 200mA (@switch are all
OFF state)
Decorative Light Floor Light Flood Light
250mA 300mA 350mA
9-40V 9-40V 9-34V
www.euchips.com
