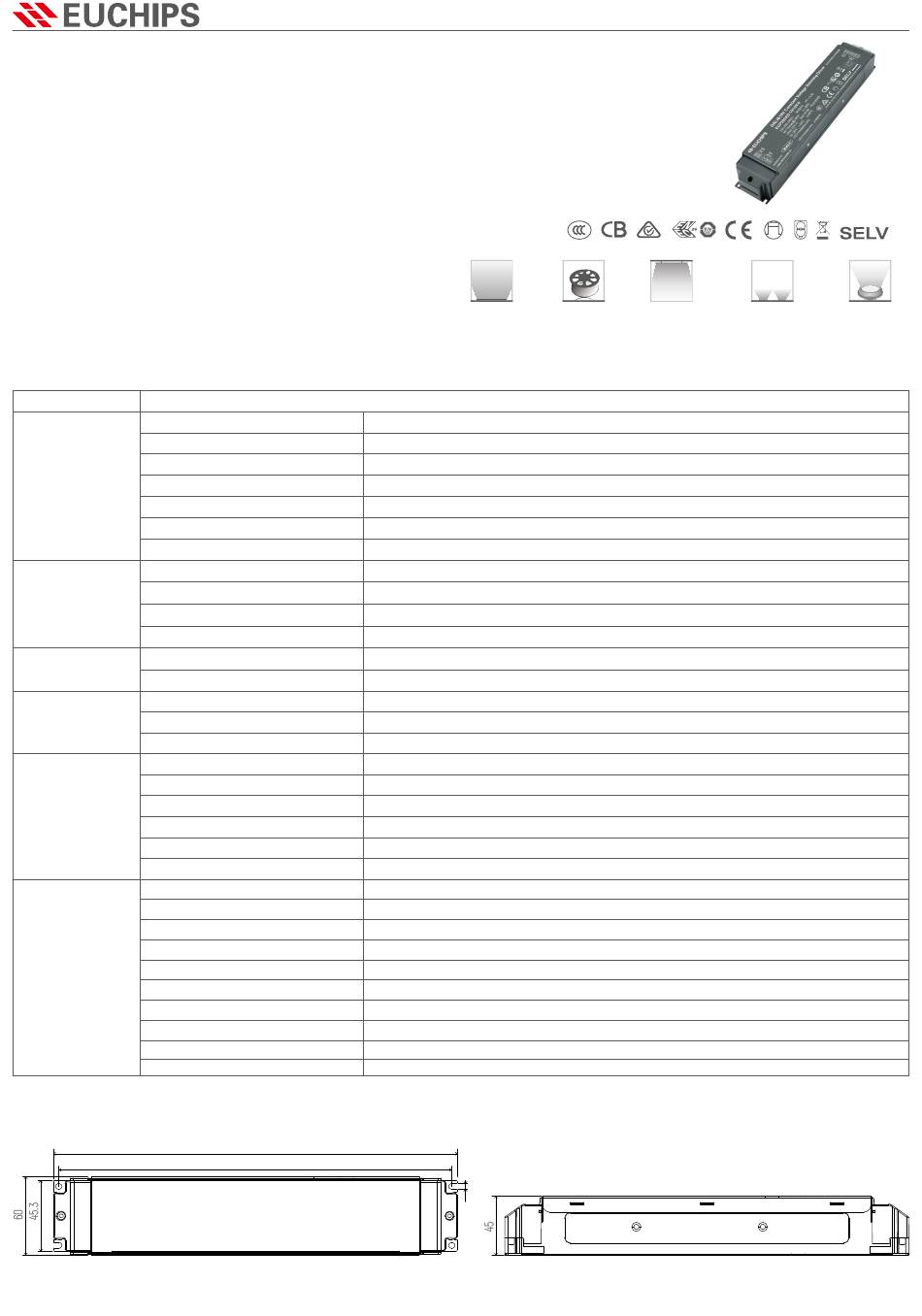

EUCHIPS EUP200AD-1H12V-0 Quick Start Manual

EUP200AD-1H12V-0
(Product No.:100200001101)
Summary
EUP200AD-1H12V-0 is a constant voltage mode output LED driver. This driver complies
with DALI standard protocol IEC 62386,and provides multiple dimming function (DALI,0/1-10V
active signal ,PWM, adjustable resistance, and Touch DIM) to achieve a smooth dimming effect.
Product Features
·Single channel constant voltage output
·Support a variety of dimming mode（DALI/0/1-10V active signal/adjustable resistance/PWM/Touch DIM）
·High range of input voltage 220VAC ~ 240VAC
·Built-in active PFC function
·Dimming effect smooth, no flicker
·Over temperature protection; Over voltage protection; Short circuit protection
·Suitable for indoor LED lighting application, such as LED strips, spot light, wall
washer,and so on
Technical Paramaters
Model
EUP200AD-1H12V-0
Efficiency
Voltage
Frequency Range(Hz)
Input
Power Factor
THD(full load)
AC Current(max)
Inrush Current(max)
Current / Voltage / Power
R & N (Max)
Output
Channel
Voltage Accuracy
Dimming Type
Function
Dimming Range
Over voltage
Protection
Over temperature
Short Circuit
Surge
Withstand Voltage
Safety& DALI Standard
EMC Safety Standards
EMC Eission
EMC Immunity
Working Temp.
Storage Temp., Humidity
tc
Material
IP Rating
Others
Lifetime
Warranty Condition
Switch Cycle
Packing(weight)
Dimension
Dimension(mm)
User's manual: 2019-9
>88%@230VAC,Full load
220VAC-240VAC
50/60Hz
≥0.95@115VAC,Full load
<10%@230VAC, Full load
1Amax@230VAC
Cold start,28A(twidth=1250us measured at 50% Ipeak) @230VAC
16.6A/12VDC/200W
200mVp-p
1
±3%
DALI/Touch DIM/1-10V/Adjustable resistance /PWM
0.1%-100% Dimming to off
Close the output, restart to recover since fault condition is removed for 10s
Close the output, restart to recover since fault condition is removed for 10s
Hiccup, recovers after fault condition is removed
L-N:1KV
I/P-O/P: 3000VAC/1min/5mA
IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0
EN61347, GB19510
EN50515, EN61000-3-2
EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
-20℃~50℃
-40℃~85℃, 20-90%RH
90℃
Metal
IP20
50,000h@tc:80℃
5 years
>100,000 times
Net weight: 860g±5%/PCS; 10PCS/Carton;9.1kg±5%/Carton; Carton Size: 333*268*150mm(L*W*H)
310*60*45mm（L*W*H）
310
300
Application
Wall Washer LED Strip Light
4.2
1/2
DALI&0/1-10V Constant Voltage Dimming Driver
LED Tube Underground Light
www.euchips.com
AR111 Venture Light
