DALI Constant Voltage Dimming Driver
Summary

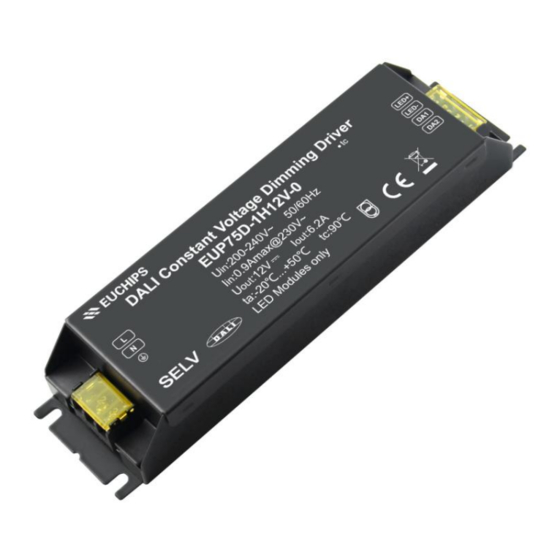

EUP75D-1H12V-0 is a constant voltage mode output LED driver and complies with DALI standard protocol IEC
62386. This driver can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Product Features
Single channel constant voltage output,6.2A Max
Meet DALI protocol IEC 62386
Support Touch DIM function
High input voltage of 200VAC ~ 240VAC
Dimming effect smooth, no flicker
Over load protection; over voltage protection; short circuit protection
IP20, suitable for indoor LED lighting application
EUP75D-1H12V-0 User Manual V03.1
EUP75D-1H12V-0
SHANGHAI EUCHIPS INDUSTRIAL CO.,LTD
1
www.euchips.com
Advertisement
Table of Contents
Related Manuals for EUCHIPS EUP75D-1H12V-0
Summary of Contents for EUCHIPS EUP75D-1H12V-0

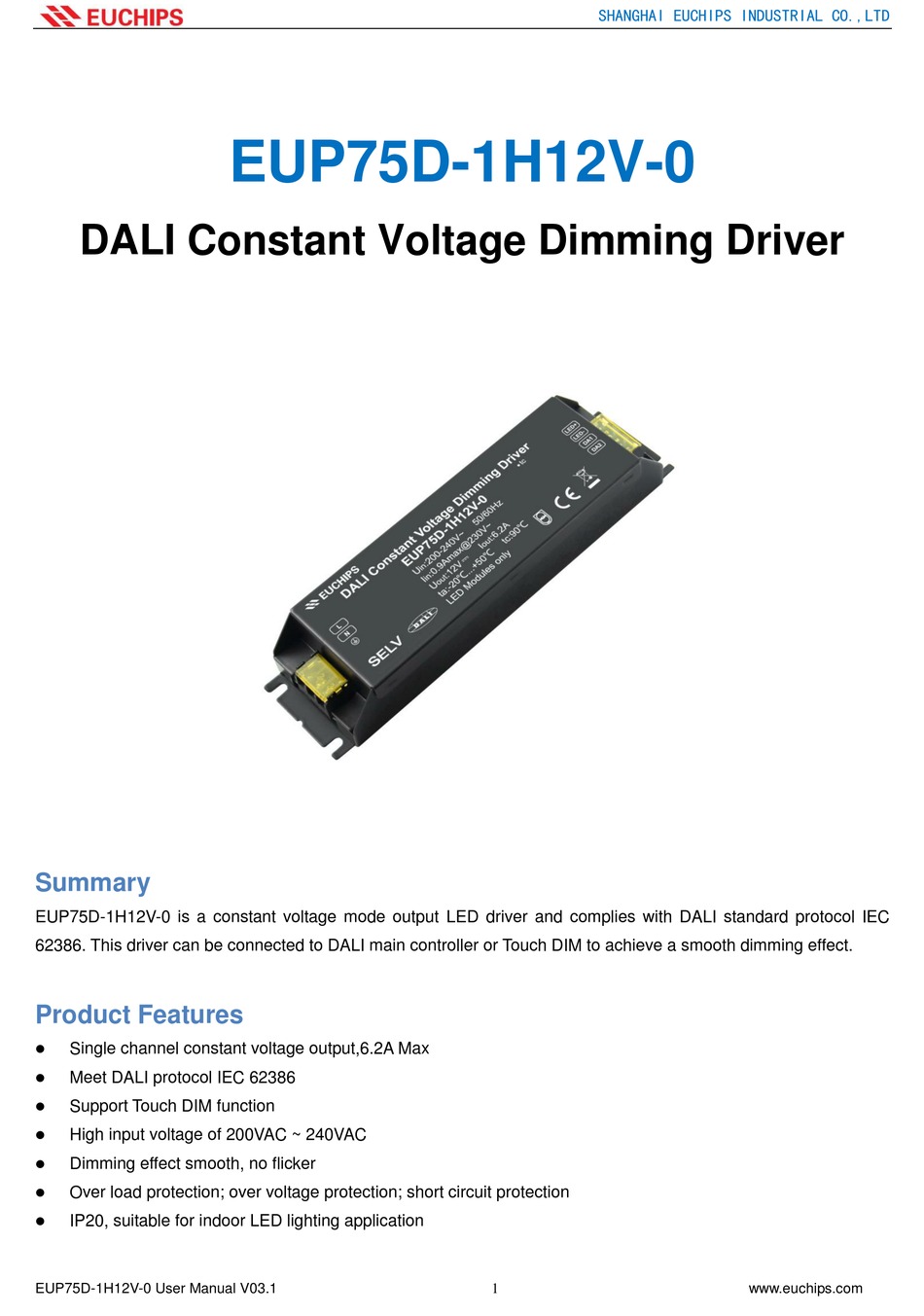

- Page 1 DALI Constant Voltage Dimming Driver Summary EUP75D-1H12V-0 is a constant voltage mode output LED driver and complies with DALI standard protocol IEC 62386. This driver can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
- Page 2 Hiccup, recovers after fault condition is removed Function Dimming mode DALI, Touch DIM Dimension 204*54*33 mm（L*W*H） G.W. 415g Packing size 382*222*215 mm（L*W*H）,30pcs/13.5kg/Carton Others IP rating IP20 Working temp. -20℃ ~ 50℃ Relative humidity 20~90% RH Dimension (mm) EUP75D-1H12V-0 User Manual V03.1 www.euchips.com...
- Page 3 SHANGHAI EUCHIPS INDUSTRIAL CO.,LTD Wiring Diagram Dimming Curve DALI Diagram Touch DIM diagram EUP75D-1H12V-0 User Manual V03.1 www.euchips.com...
- Page 4 7. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights. 8. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself. EUP75D-1H12V-0 User Manual V03.1 www.euchips.com...
