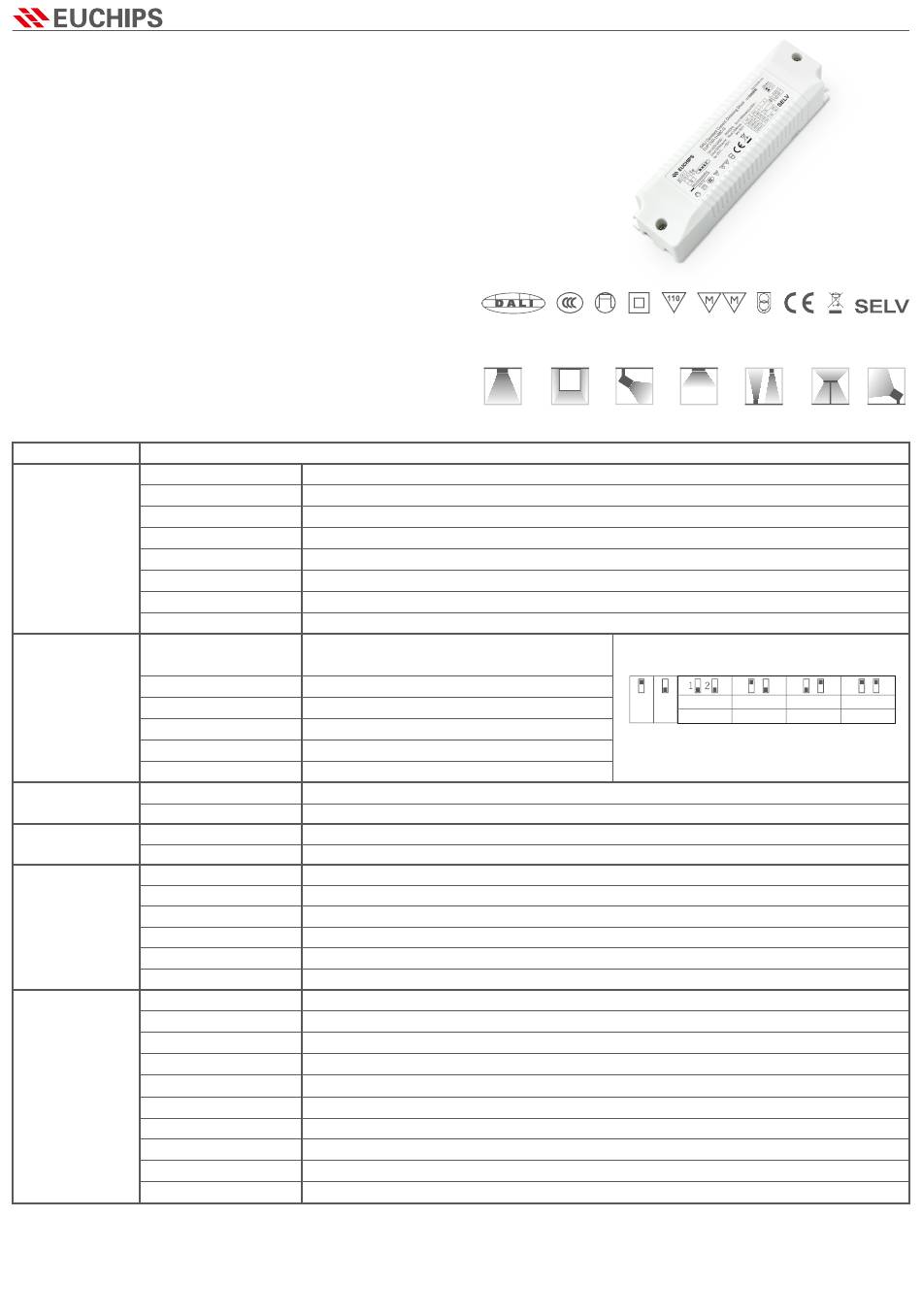

EUCHIPS EUP15D-1HMC-0 Manual

EUP15D-1HMC-0
(Product No.:102100281101)

Summary

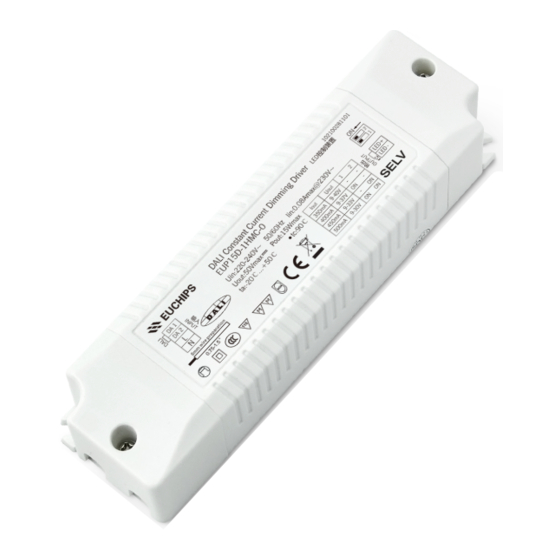

EUP15D-1HMC-0 is a 15W AC/DC constant current mode output LED driver featuring the multiple levels
selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP15D-1HMC-0 can
be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.

Product Features

· Single channel output, output current level selectable byDIP S.W.
· Meet DALI Protocol IEC 62386
· Support Touch-DIM function
· High efficiency up to 85%
· Built-in active PFC function
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load
· Suitable for indoor LED lighting application, such as down
light, spot light, and so on
Technical Paramaters
Model
EUP15D-1HMC-0
Efficiency
Voltage
Frequency Range(Hz)
Power Factor
Input
THD(full load)
AC Current(max)
Standby power
Inrush Current(max)
Current(mA)/Voltage (VDC)
Power(W)
Ripple Current
Output Channel
Current Tolerance
No load output voltage
Turn on delay Time
Dimming Type
Function
Dimming Range
Short Circuit
Protection
Over Load
Surge
Withstand Voltage
Safety
DALI Standard
&
Safety Standards
EMC
EMC Eission
EMC Immunity
Working Temp.
Storage Temp., Humidity
tc
Material
IP Rating
Others
Lifetime
Warranty Condition
Switch Cycle
Packing(weight)
Dimension
User's manual: 2019-9

Application

Downlight
>85%@230VAC,Full load
220VAC-240VAC
50/60Hz
≥0.95@230VAC,Full load
<10%@230VAC, Full load
0.08Amax@230VAC
<0.5W
Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC
350mA/9-40VDC/14W 400mA/9-37VDC/14.8W
450mA/9-33VDC/14.85W 500mA/9-30VDC/15W
<3%
1
±5%
50V Max
<1.5s, at230Vac
DALI /Touch DIM
1%-100% Dimming to off
Close output, recovers automatically after fault removed
When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
L-N:1KV
I/P-O/P: 3000VAC/1min/5mA
IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0
EN61347, GB19510
EN55015, EN61000-3-2
EN61000-4-2,3,4,5,6,8,11; EN61547
-20℃~50℃
-40℃~85℃, 20-90%RH
90℃
PC
IP20
50,000h@tc:80℃
5 Years
>100,000 tims
Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H)
150*43*29mm（L*W*H）
1/2
Panel Light Spotlight Ceiling Light

Current Selection Table

350mA
ON OFF
9-40V
Remark: Function default setting is: 350mA (@switch are all
OFF state)
DALI Constant Current Dimming Driver
Decorative Light Floor Light Flood Light
400mA 450mA 500mA
9-40V 9-40V 9-34V
www.euchips.com
