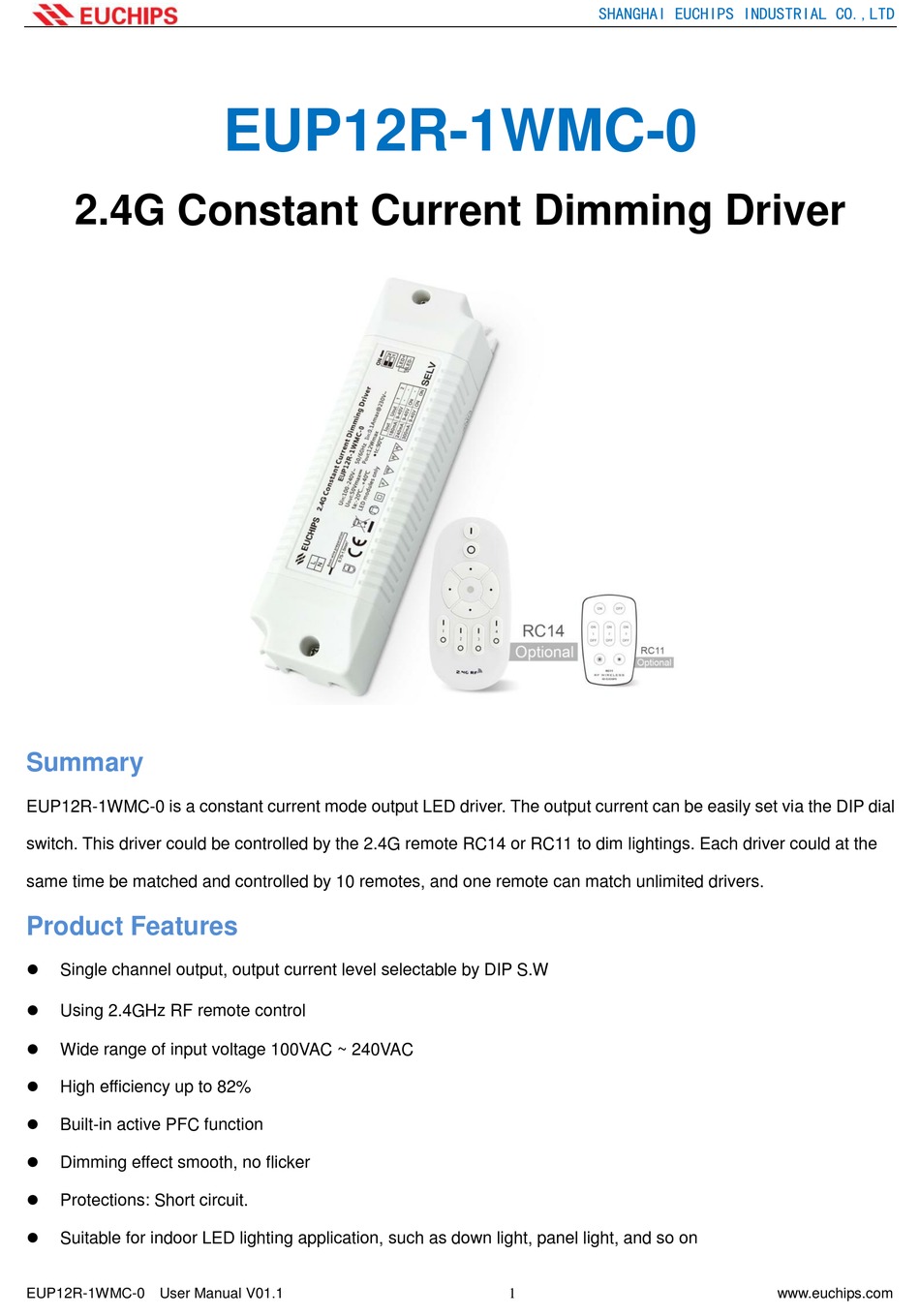

2.4G Constant Current Dimming Driver
Summary

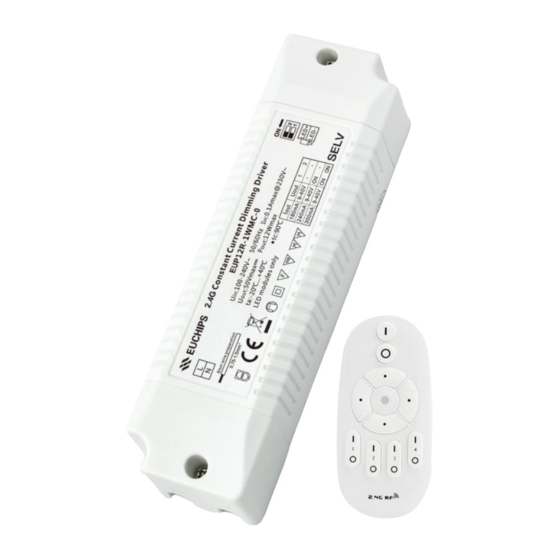

EUP12R-1WMC-0 is a constant current mode output LED driver. The output current can be easily set via the DIP dial
switch. This driver could be controlled by the 2.4G remote RC14 or RC11 to dim lightings. Each driver could at the
same time be matched and controlled by 10 remotes, and one remote can match unlimited drivers.
Product Features
Single channel output, output current level selectable by DIP S.W
Using 2.4GHz RF remote control
Wide range of input voltage 100VAC ~ 240VAC
High efficiency up to 82%
Built-in active PFC function
Dimming effect smooth, no flicker
Protections: Short circuit.
Suitable for indoor LED lighting application, such as down light, panel light, and so on
EUP12R-1WMC-0 User Manual V01.1
EUP12R-1WMC-0
SHANGHAI EUCHIPS INDUSTRIAL CO.,LTD
1
www.euchips.com
Advertisement
Related Manuals for EUCHIPS EUP12R-1WMC-0
Summary of Contents for EUCHIPS EUP12R-1WMC-0
- Page 1 Summary EUP12R-1WMC-0 is a constant current mode output LED driver. The output current can be easily set via the DIP dial switch. This driver could be controlled by the 2.4G remote RC14 or RC11 to dim lightings. Each driver could at the same time be matched and controlled by 10 remotes, and one remote can match unlimited drivers.
- Page 2 Others Working temp. -20℃ ~ 40℃ Relative humidity 20~90% RH Dimension(mm) Current Selection Table EUP12R-1WMC-0 is a multi-current dimming driver, output current level selectable by DIP S.W., as the following: Current DIP-1 DIP-2 180mA 240mA 300mA Remark: Function default setting is: 180mA (@switch are all OFF state) EUP12R-1WMC-0 User Manual V01.1...
- Page 3 6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights. 7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself. 2.4G Remote control RC14(Optional) EUP12R-1WMC-0 User Manual V01.1 www.euchips.com...
- Page 4 After the code is cleared, the method of setting the group is totally the same as the principle of "matching the code and grouping" Remark：The remote should not put in the area with large-scale metal or near strong electromagnetic wave region; otherwise the communication distance will be seriously affected. EUP12R-1WMC-0 User Manual V01.1 www.euchips.com...
