BalanceBox 650 Installation Manual

Floor support
Hide thumbs Also See for 650:

Advertisement

Quick Links

Installation manual
®
BalanceBox
650

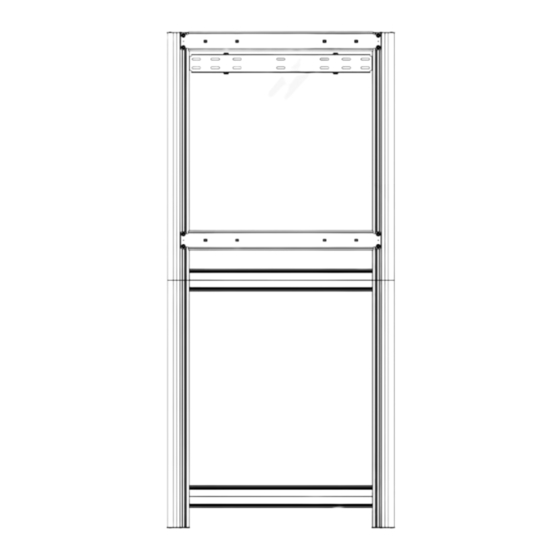

Floor Support
item number: 481A14001
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 650 and is the answer not in the manual?

Questions and answers

Summary of Contents for BalanceBox 650

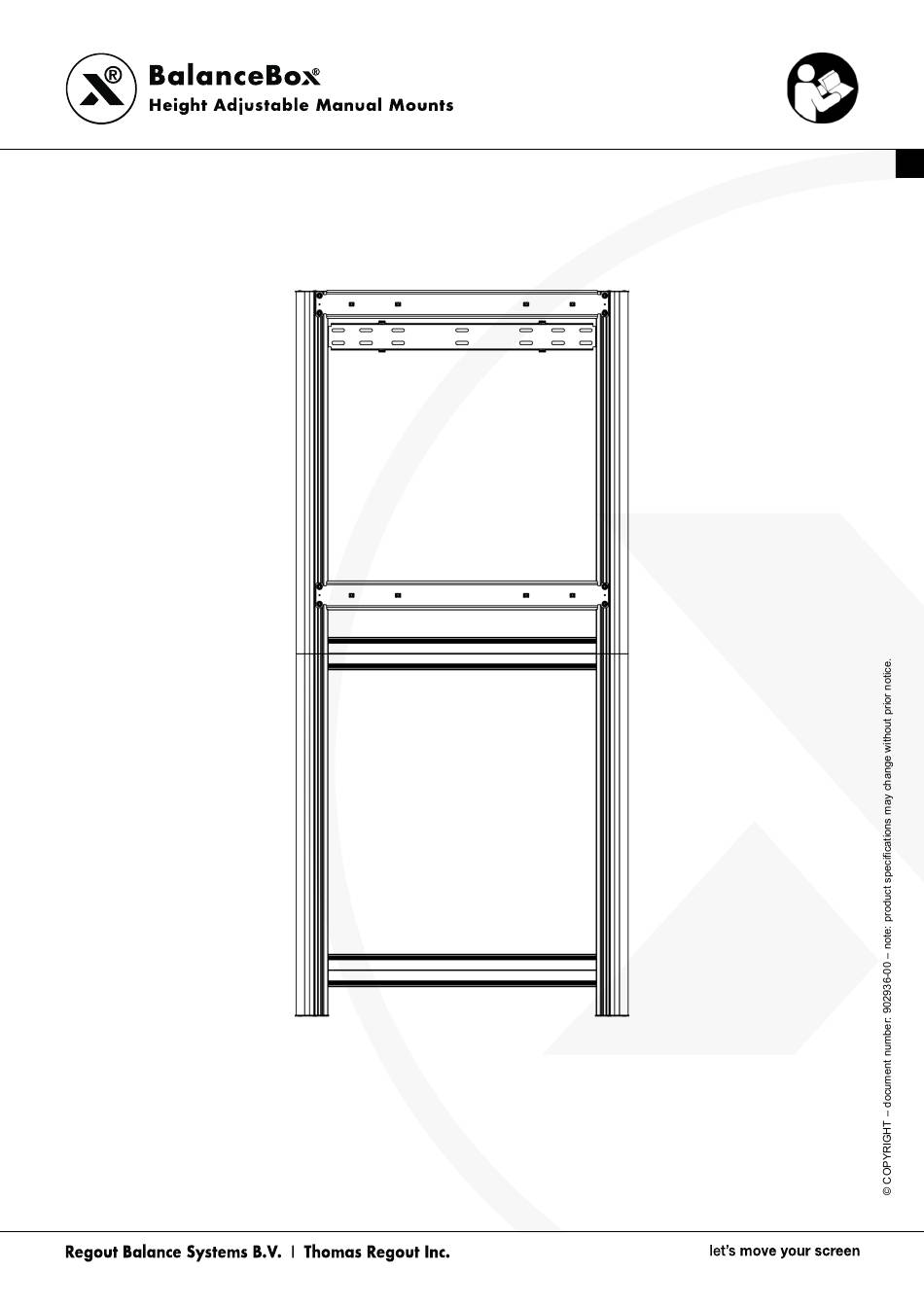

  • Page 1 Installation manual ® BalanceBox Floor Support item number: 481A14001...
  • Page 2 ® BalanceBox 650 Floor Support General Warnings Tools...
  • Page 3: Content Of The Box

    ® BalanceBox 650 Floor Support Content of the box (2x) E (1x) E (1x) H (4x) G (3x) C (2x) D (2x) B (2x) A...
  • Page 4 ® BalanceBox 650 Floor Support Content of Bag with Screws [E] (8x) J (8x) K (20x) L (20x) M * 2x spare (14x*) N [1:1] Assemble the profiles...
  • Page 5 ® BalanceBox 650 Floor Support Mount 4x plastic spring [N] on each wall bracket [C] (12x) N (3x) C...
  • Page 6 ® BalanceBox 650 Floor Support Insert 6 screws [M] in each profile as shown (12x) M (6x) M (6x) M...
  • Page 7 ® BalanceBox 650 Floor Support Place all 3 wall brackets [C] over the screws and mount each wall bracket with 4 nuts [L] Make sure the middle wall bracket connects the aluminum profiles. (12x) L Tighten: 25 Nm 18 ft-Lbs...
  • Page 8 ® BalanceBox 650 Floor Support Insert 4 screws [M] in each profile as shown. (8x) M...
  • Page 9 BalanceBox 650 Floor Support Place 2 interface brackets [D] over the screws and mount each interface bracket with 4 nuts [L] ® Tighten the nuts by hand. The height setting of the BalanceBox 650 will follow. Tighten: 25 Nm 18 ft-Lbs...
  • Page 10 ≥ 2 ≥ 2 ® Define how high the BalanceBox 650 needs to be. Use the mounting height calculator on the website. ® Depending on the BalanceBox 650 version the interface brackets need to be mounted as shown below. Loosen the nuts in order to adjust the height of the interface brackets. After adjusting tighten the nuts well.
  • Page 11 ® BalanceBox 650 Floor Support Mount the wall bracket to the lower interface bracket [D] of the floor support. Use 4x screw [J] Tighten well. Tighten: 25 Nm (4x) J 18 ft-Lbs...
  • Page 12 Make sure all covers of the BalanceBox 650 are removed according manual. ® ® Mount the BalanceBox 650 onto the floor support. Place the BalanceBox 650 onto the wall bracket. ® Use 4 screws [J] to secure the BalanceBox 650 at the top.
  • Page 13 Use 2x screw included with the BalanceBox 650. Tighten: 10 Nm 7.4 ft-Lbs ® After mounting the BalanceBox 650, place all covers back according to the manual. ® ® BalanceBox 650 Mk.1 (Grey): BalanceBox 650 Mk.2 (Black): 484A07, 484A08, 484A09, 484A10...
  • Page 14 ® BalanceBox 650 Floor Support Place 2 covers [E] on the wall brackets [C] that are visible...
  • Page 15 ® BalanceBox 650 Floor Support ® For mounting the VESA bracket #481A70 to the BalanceBox 650, please follow manual 902916 (including with 481A70) 902916...
  • Page 16 Regout Balance Systems B.V. Thomas Regout Inc. Industrieweg 40 145 Bluffs Court 6219 NR Maastricht Canton, GA 30114 The Netherlands...
