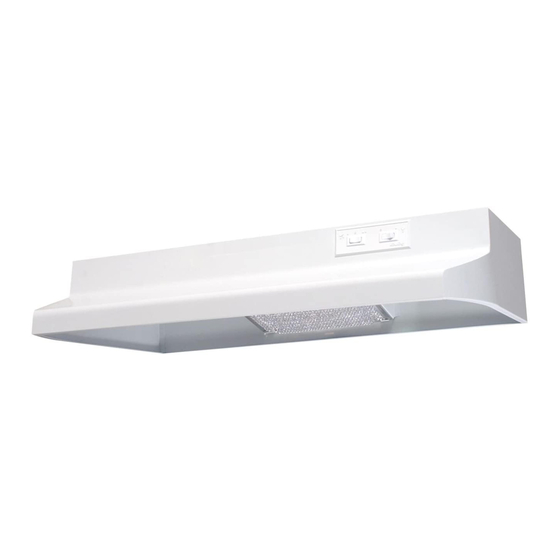

Advantage series ductless range hood 120 volts, 2.1 amps, 60 hz
Hide thumbs Also See for Range Hood AD series:

Advertisement

Quick Links

• Dimensions

Overall bottom projection - 18
Overall top projection -12"
Height - 6". Available widths: 21", 24", 30" & 36"

• Hood Body

23 gauge cold rolled steel, auto welded, coated with a baked
enamel finish.

• Motor

2 speed, single coil, thermally protected, permanently lubricated.
Rated 120 volts, 60 hz., 2.1 amps. Complete with 200˚C lead wires.

• Lighting

Single 60 watt cook light capacity

• Ducting Options

Ductless - combination grease/charcoal filter included.

• Fan Blade

One piece polymeric, electronically balanced blade. 6
diameter with 5 paddles.

• Electrical connection

Hood top -
7 / 8
" electrical knockout.
Hood back -
7 / 8
" electrical knockout.
PROJECT
LOCATION
CONTRACTOR
FAN
MODEL
CFM
NUMBER NUMBER
C
US
Specifications subject to change without notice.
Advantage Series Ductless Range Hood
120 Volts, 2.1 amps, 60 hz.
3 / 8
"
(bulb not included).
(Model RF55)
5 / 8
"
IN
RPM
WATTS
AMPS
W.C.
AD SERIES
AD SERIES
7 / 8
"
6
11 / 16
5
"

• Filters

UL rated, class 2 filter.
Combo Grease/Charcoal: RF55 - 8

• Available Finishes

White, Biscuit, Almond, Black & Stainless Steel.
ARCHITECT
ENGINEER
SUBMITTED BY
SONES
QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
RANGE HOODS
12"
20
7 / 8
", 23
7 / 8
",
29
7 / 8
", 35
7 / 8
"
7 / 8
"x10
3 / 8
"
.
(included)
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
6
3 / 8
"
Updated 6-07
