Vega VEGABAR 87 Quick Setup Manual

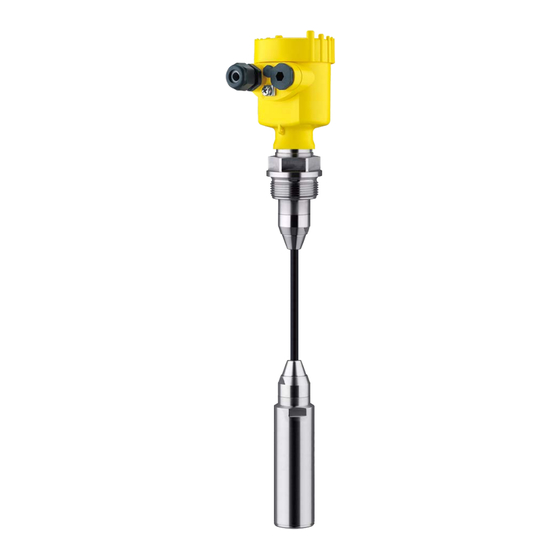

Submersible pressure transmitter with metal measuring cell
Hide thumbs
Also See for VEGABAR 87:
- Operating instructions manual (84 pages) ,
- Quick setup manual (20 pages) ,
- Operating instructions manual (84 pages)
Related Manuals for Vega VEGABAR 87
Summary of Contents for Vega VEGABAR 87

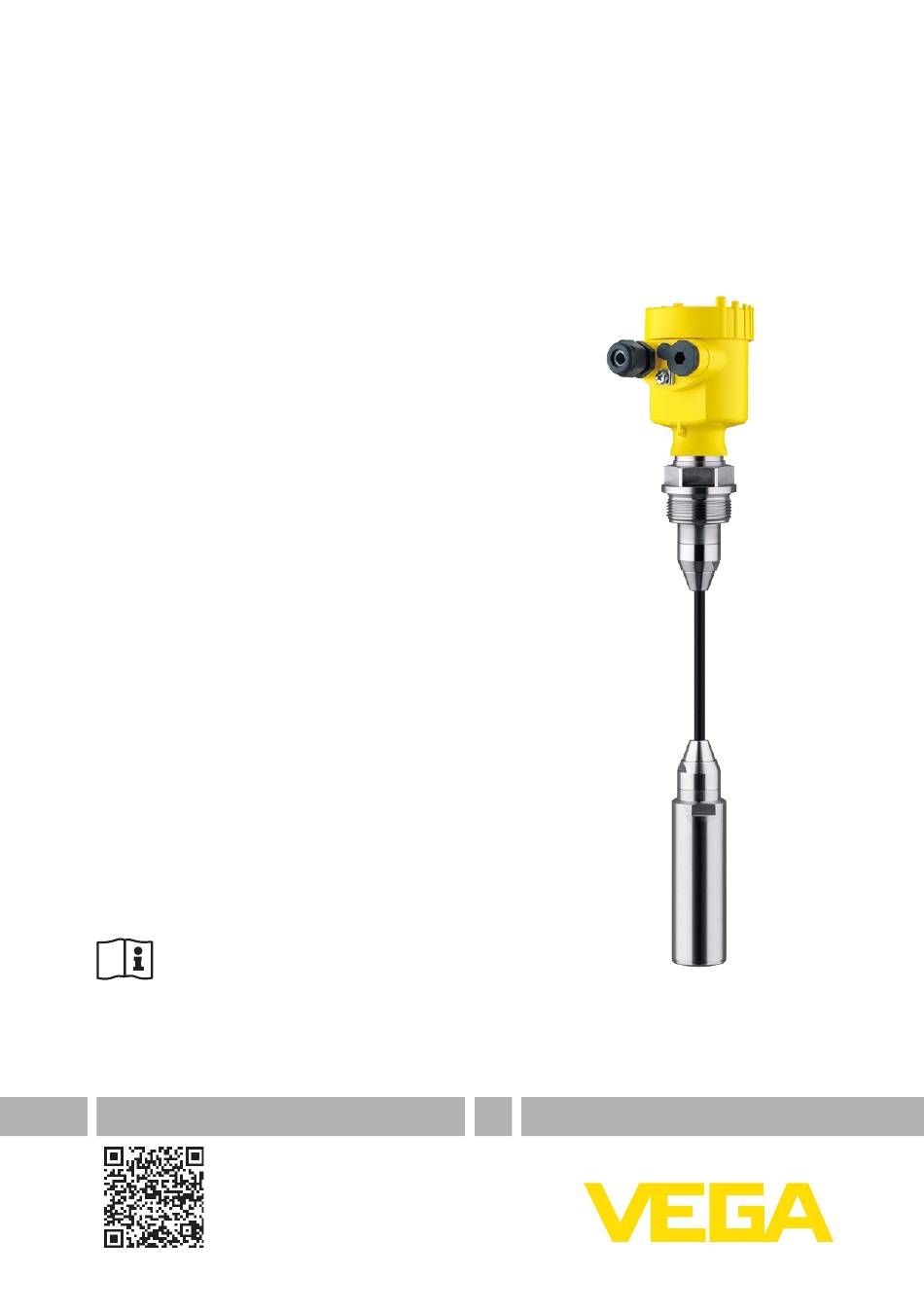

- Page 1 Quick setup guide Submersible pressure transmitter with metal measuring cell VEGABAR 87 Profibus PA Document ID: 46328...
-
Page 2: Table Of Contents
Operating Instructions Manual as well as the Safety Manual that comes with instruments with SIL qualification. These manuals are available on our homepage. Operating instructions VEGABAR 87 - Profibus PA: Document- ID 45047 Editing status of the quick setup guide: 2023-09-06... -
Page 3: For Your Safety
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use Model VEGABAR 87 is a pressure transmitter for level and gauge measurement. You can find detailed information about the area of application in chapter "... -
Page 4: Namur Recommendations
The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter " Packaging, transport and storage" • Chapter " Disposal" VEGABAR 87 • Profibus PA... -
Page 5: Product Description
To find order data, documents or software related to your device, you have the following options: • Move to " www.vega.com" and enter in the search field the serial number of your instrument. • Scan the QR code on the type label. -
Page 6: Mounting
Aluminium - single chamber Stainless steel single chamber (electropolished) Plastic double chamber Aluminium, stainless steel double chamber housing (precision casting) Filter element With the following instruments a blind plug is installed instead of the filter element: VEGABAR 87 • Profibus PA... - Page 7 3 Mounting • Instruments in protection IP66/IP68 (1 bar) - ventilation via capillar- ies in non-detachable cable • Instruments with absolute pressure VEGABAR 87 • Profibus PA...
-
Page 8: Connecting To The Bus System
7. Check the hold of the wires in the terminals by lightly pulling on them 8. Connect the shielding to the internal ground terminal, connect the external ground terminal to potential equalisation VEGABAR 87 • Profibus PA... -
Page 9: Single Chamber Housing
Electronics compartment 6 7 8 Fig. 4: Electronics compartment - double chamber housing Internal connection to the connection compartment Contact pins for the display and adjustment module or interface adapter Selection switch for bus address VEGABAR 87 • Profibus PA... - Page 10 6 7 8 Fig. 5: Connection compartment - double chamber housing Voltage supply, signal output For display and adjustment module or interface adapter For external display and adjustment unit Ground terminal for connection of the cable screening VEGABAR 87 • Profibus PA...
-
Page 11: Set Up With The Display And Adjustment Module
The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 6: Installing the display and adjustment module in the electronics compart- ment of the single chamber housing VEGABAR 87 • Profibus PA... -
Page 12: Parameter Adjustment - Quick Setup
126. This means that the sensor address can be changed via the display and adjustment module. Measurement loop name In this menu item you assign a suitable measurement loop name. Permitted are names with a maximum of 19 characters. VEGABAR 87 • Profibus PA... - Page 13 Enter the percentage value and the corresponding value for the max. level. Min. adjustment In this menu item you carry out the min. adjustment for level Enter the percentage value and the corresponding value for the min. level. The quick setup is finished. VEGABAR 87 • Profibus PA...
-
Page 14: Parameter Adjustment - Extended Adjustment
5 Set up with the display and adjustment module VEGABAR 87 always measures pressure independently of the pro- Parameterization example cess variable selected in the menu item " Application". To output the selected process variable correctly, an allocation of the output signal to 0 % and 100 % must be carried out (adjustment). -
Page 15: Menu Overview
Adjustment Zero/Min. adjustment 0.00 bar 0.00 % Span/Max. adjustment Nominal measuring range in bar 100.00 % Linearisation Linear, cylindrical tank, … user-defined Linear Parameter only active if the instrument is connected to the Secondary sensor VEGABAR 87 • Profibus PA... - Page 16 Delivery status, basic settings Copy instrument settings Read from sensor, write into sensor Scaling Scaling size Volume in l Scaling format 0 % corresponds to 0 l 100 % corresponds to 100 l Special parameters Service-Login No reset VEGABAR 87 • Profibus PA...
- Page 17 5 Set up with the display and adjustment module Info Menu item Parameter Device name VEGABAR 87 Instrument version Hardware and software version Factory calibration date Date Profibus Ident Number Identification number of the instrument on a Profibus system Sensor characteristics Order-specific characteristics VEGABAR 87 • Profibus PA...
-
Page 18: Set Up With Smartphone/Tablet, Pc/Notebook Via Bluetooth
PIN in the adjustment menu of the sensor, e.g. to " 1111": 1. Go to setup via the extended operation 2. Lock operation by changing sensor PIN 3. Enable operation by entering the sensor PIN once more VEGABAR 87 • Profibus PA... -
Page 19: Connecting
Bluetooth-capable instru- ments in the area. PC/Notebook Start PACTware and the VEGA project assistant. Select the device search via Bluetooth and start the search function. The device auto- matically searches for Bluetooth-capable devices in the vicinity. - Page 20 6 Set up with smartphone/tablet, PC/notebook via Bluetooth App view Fig. 10: Example of an app view - Setup sensor adjustment VEGABAR 87 • Profibus PA...
-
Page 21: Supplement
Operating voltage U 9 … 32 V DC Operating voltage U with lighting 13.5 … 32 V DC switched on Number of sensors per DP/PA segment coupler, max. IP66/IP68 (0.2 bar), only with absolute pressure. VEGABAR 87 • Profibus PA... - Page 22 Notes VEGABAR 87 • Profibus PA...
- Page 23 Notes VEGABAR 87 • Profibus PA...
- Page 24 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2023 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
