Summary of Contents for Zanussi ZEV6341FBA
- Page 1 User Manual ZEV6341FBA...
-
Page 2: Table Of Contents
Children aged 3 years and under must be kept away from this • appliance when it is in operation at all times. General Safety WARNING: The appliance and its accessible parts become hot • during use. Care should be taken to avoid touching heating www.zanussi.com... -
Page 3: Safety Instructions
• Follow the installation instruction supplied make sure that the space, between the with the appliance. bottom of the appliance and the upper • Keep the minimum distance from the other drawer, is sufficient for air circulation. appliances and units. www.zanussi.com... - Page 4 • Do not put a hot pan cover on the glass and contactors. surface of the hob. • The electrical installation must have an • Do not let cookware to boil dry. isolation device which lets you disconnect www.zanussi.com...
-
Page 5: Product Description

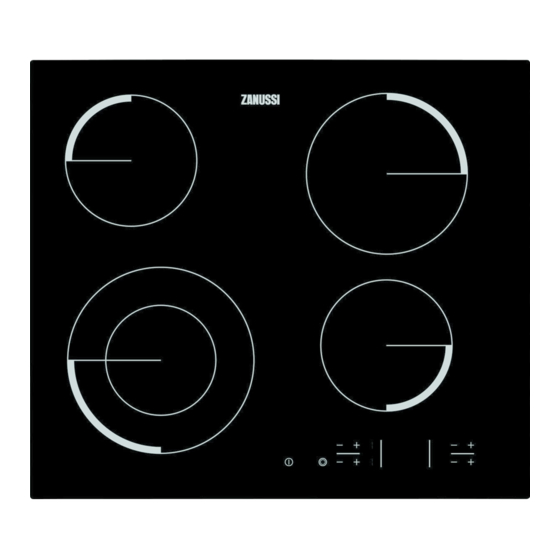

• Disconnect the appliance from the electrical • Use original spare parts only. supply before maintenance. • Do not use water spray and steam to clean the appliance. Product description Cooking surface layout Cooking zone Control panel 145 mm 180 mm 145 mm 120/210 120/210 www.zanussi.com... - Page 6 The cooking zone operates. There is a malfunction. + digit A cooking zone is still hot (residual heat). The Child Safety Device function operates. Automatic Switch Off function operates. Residual heat indicator WARNING! There is a risk of burns from residual heat. www.zanussi.com...
-
Page 7: Daily Use
WARNING! Cookware made of enamelled steel Refer to Safety chapters. and with aluminium or copper bottoms can cause the colour change on the glass-ceramic Cookware surface. The bottom of the cookware must be as thick and flat as possible. www.zanussi.com... -
Page 8: Care And Cleaning
• Use a special cleaner applicable for the shiny metallic discoloration. Clean the hob surface of the hob. with a moist cloth and non-abrasive • Use a special scraper for the glass. detergent. After cleaning, wipe the hob dry with a soft cloth. www.zanussi.com... -
Page 9: Troubleshooting
There is a dark area on the multiple zone. The sensor fields become hot. The cookware is too large or you Put large cookware on the rear put it too near to the controls. zones if possible. www.zanussi.com... -
Page 10: Installation
The rating plate is on the bottom of the hob. Serial number ......Built-in hobs Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards. www.zanussi.com... - Page 11 Assembly min. 500mm R 5mm min. 50mm min. 55mm min. 12 mm min. 28 mm min. 20 mm www.zanussi.com...
-
Page 12: Technical Data
You can not use the protection box if you install the hob above an oven. Technical data Rating plate Model ZEV6341FBA PNC 949 595 618 01 Typ 60 HAD 03 AO 220 - 240 V 50 - 60 Hz Made in Germany Ser.Nr. -
Page 13: Energy Efficiency
Energy efficiency Product information according to EU 66/2014 Model identification ZEV6341FBA Type of hob Built-In Hob Number of cooking zones Heating technology Radiant Heater Diameter of circular cooking Left front 21.0 cm zones (Ø) Left rear 14.5 cm Right front 14.5 cm... - Page 14 www.zanussi.com...
- Page 15 www.zanussi.com...
- Page 16 www.zanussi.com/shop...
