Summary of Contents for Zanussi ZEV6340FBA

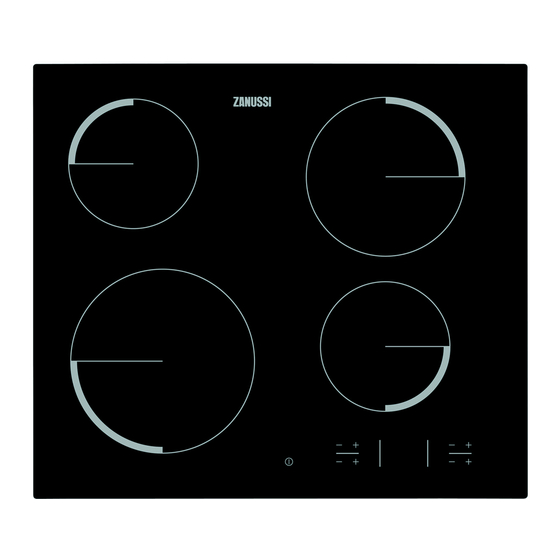

- Page 1 User Manual GETTING STARTED? EASY. ZEV6340FBA EN User Manual...
-
Page 2: Safety Information
SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. -
Page 3: Safety Instructions
CAUTION: The cooking process has to be supervised. A short • term cooking process has to be supervised continuously. WARNING: Danger of fire: Do not store items on the cooking • surfaces. Metallic objects such as knives, forks, spoons and lids should •... - Page 4 • Make sure that a shock protection is installed. • When you place food into hot oil, it may splash. • Use the strain relief clamp on the cable. WARNING! Risk of fire and explosion • Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance •...
-
Page 5: Product Description
• Contact your municipal authority for information SERVICE on how to discard the appliance correctly. • To repair the appliance contact an Authorised • Disconnect the appliance from the mains Service Centre. supply. • Use original spare parts only. • Cut off the mains electrical cable close to the appliance and dispose of it. -
Page 6: Daily Use
HEAT SETTING DISPLAYS Display Description The cooking zone is deactivated. The cooking zone operates. There is a malfunction. + digit A cooking zone is still hot (residual heat). The Child Safety Device function operates. Automatic Switch Off function operates. RESIDUAL HEAT INDICATOR WARNING! There is a risk of burns from residual heat. -
Page 7: Offsound Control (Deactivation And Activation Of The Sounds)
two front cooking zones for 4 seconds. comes on and on the right front zone display on. Deactivate the hob with comes on. Touch of the front left zone to choose one of the following: To override the function for only one cooking •... -
Page 8: Care And Cleaning
Time Heat setting Use to: Hints (min) 4 - 5 Steam potatoes. 20 - Use max. ¼ l water for 750 g of potatoes. 4 - 5 Cook larger quantities of food, 60 - Up to 3 l liquid plus ingredients. stews and soups. - Page 9 WHAT TO DO IF... Problem Possible cause Remedy You cannot activate or operate The hob is not connected to an Check if the hob is correctly the hob. electrical supply or it is con- connected to the electrical nected incorrectly. supply.
-
Page 10: Before The Installation
Problem Possible cause Remedy E6 comes on. The second phase of the pow- Check if the hob is correctly er supply is missing. connected to the electrical supply. Remove the fuse, wait one minute, and insert the fuse again. IF YOU CANNOT FIND A SOLUTION... the hob correctly. - Page 11 ASSEMBLY min. 500mm R 5mm min. 50mm min. 55mm min. 12 mm min. 28 mm min. 20 mm...
-
Page 12: Technical Data
You can not use the protection box if you install the hob above an oven. TECHNICAL DATA RATING PLATE Model ZEV6340FBA PNC 949 492 175 01 Typ 60 HAD 54 AO 220 - 240 V 50 - 60 Hz Made in Romania Ser.Nr. -
Page 13: Energy Efficiency
ENERGY EFFICIENCY PRODUCT INFORMATION ACCORDING TO EU 66/2014 Model identification ZEV6340FBA Type of hob Built-In Hob Number of cooking zones Heating technology Radiant Heater Diameter of circular cooking Left front 21.0 cm zones (Ø) Left rear 14.5 cm Right front 14.5 cm... - Page 16 WWW.ZANUSSI.COM/SHOP...
