tibelec ST16C Instructions Manual page 11

4
Automatic function
5mm
H05RN-F 2G1mm2
10mm
5

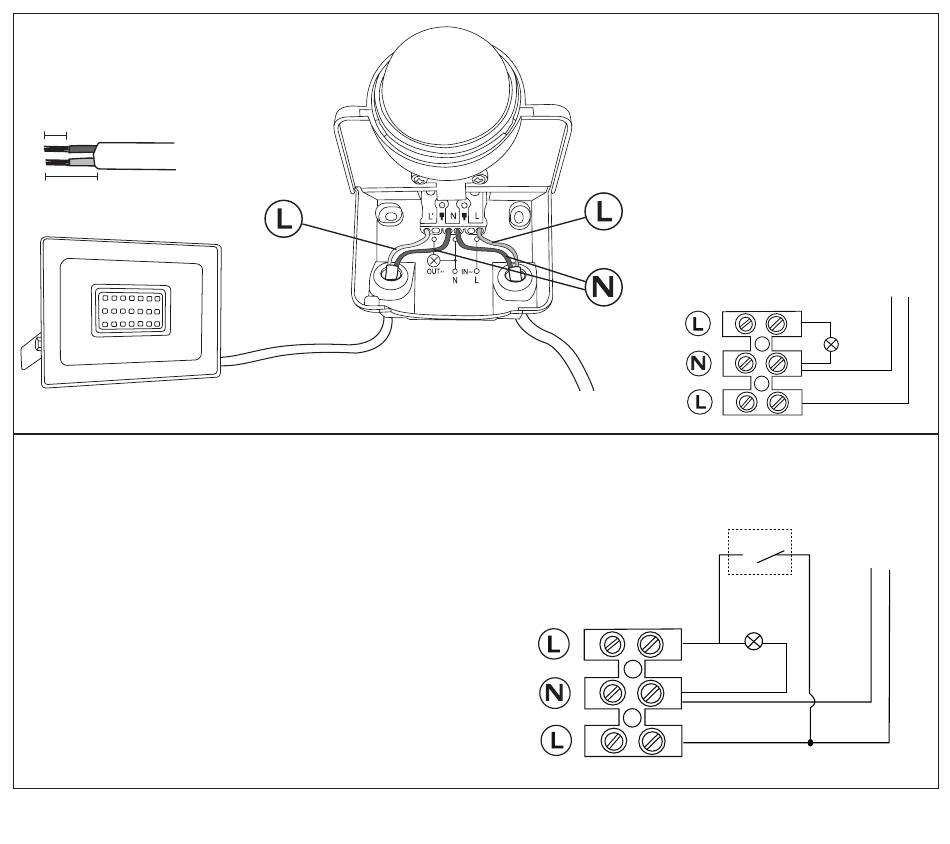

Automatic and manual function
With this connection, the light
fixture can be operated in automatic
or manual mode, also called forced
or continuous operation. You can
install your light fixture on a
"single switch" to switch on/off
manually (temporarily, for a dinner
party on the terrace for example)
instead of using the detector.
'
With this connection, the
light fixture is controlled by
the detector. All motion
within the area covered by
the detector triggers the
light.
red
rouge
230V
blue
bleu
brown
marron
'
red
rouge
blue
bleu
marron
brown
'
lamp
lampe
Continuous operation
Interrupteur
switch
marche continue
220/240V
220/240V
