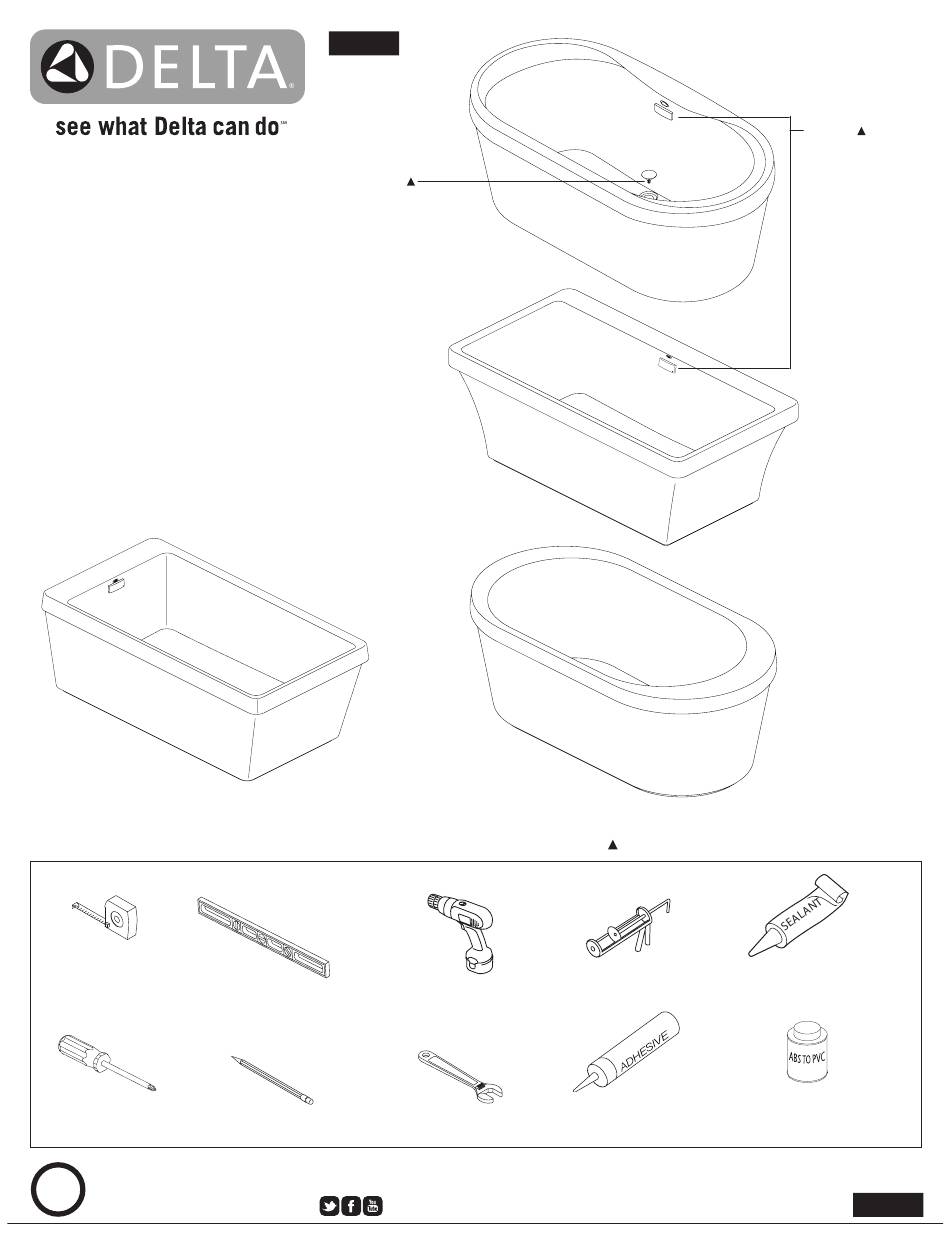

SYNERGY
B14416-6032-WH
B14416-6836-WH
®
EVERLY
B14451-6032-WH
B14451-6736-WH
ARATA™
B14627-6032-WH
BYRON™
DB256406-6032-WH
READ ALL INSTRUCTIONS PRIOR TO INSTALLATION
LEA TODAS LAS INSTRUCCIONES ANTES DE INSTALAR
LISEZ TOUTES LES INSTRUCTIONS AVANT D'ENTREPRENDRE L'INSTALLATION
?
www.deltafaucet.com
1-877-430-5315
consumercare@deltafaucet.com
07/01/2020
100381
RP84653
Toe Tap Drain
Desagüe que se
abre y cierra pre-
sionando con pié
Renvoi à pression
1
Specify Finish /Especifíque el Acabado /Précisez le Fini
Kitchen & Bath Sealant
Sellador para cocinas y baños
Composé d'étanchéité pour la
cuisine et la salle de bain
ABS to PVC Adhesive
Adhesive
Adhesivo de ABS a PVC
Adhesivo
Colle de transition ABS-
Colle
PVC
RP84654
Overflow Cover
Tapa para el drenaje
del rebosadero
Cache trop-plein
100381
100381 Rev. D
