Delta B501LF Series Manual

Delta B501LF Series Manual

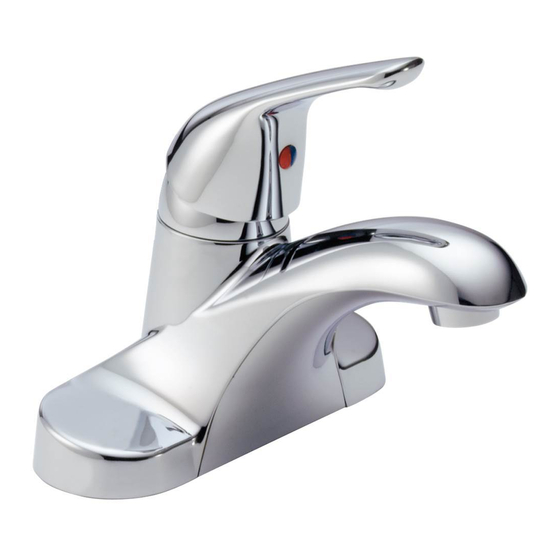

Single handle lavatory faucet
Hide thumbs Also See for B501LF Series:

Advertisement

Model/Modelo/Modèle
B501LF/B510LF/B512LF
B510LF-PPU
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your Delta faucet
you will need:
・To READ ALL the instructions completely before
beginning.
・To READ ALL warnings, care and maintenance
information.
・To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
・LEER TODAS las instrucciones completamente
antes de empezar.
・LEER TODAS los avisos, cuidados, e información
de mantenimiento.
・Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
・LIRE TOUTES les instructions avant de débuter.
・LIRE TOUE LES les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
・Acheter le bon nécessaire de raccordement.
www.deltafaucet.com
SINGLE HANDLE LAVATORY FAUCET
86607
LLAVE DE LAVAMANOS DE UNA
MANIJAS
ROBINET À UNE MANETTE POUR
LAVABO
B501LF
86607
1
B510LF
B511LF-PPU
3/32" (2.38mm)
B512LF
?
06/22/2020 Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B501LF Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta B501LF Series

  • Page 1 B501LF B511LF-PPU You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin: 3/32" (2.38mm) For easy installation of your Delta faucet you will need: ・To READ ALL the instructions completely before beginning. ・To READ ALL warnings, care and maintenance information.
  • Page 2 Slide washers (1) in place under sink and between nuts, SHUT OFF WATER SUPPLIES. with slotted openings around tubes. Secure faucet to sink by tightening nuts (2) with a wrench. Place gasket (1) on bottom of new faucet. Assemble nuts (2) to Continue to either step 3 metal pop-up installation or step 4 studs.
  • Page 3 Metal Pop-Up installation Apply silicone to underside of flange (1). Insert body (2) into sink. Remove stopper (1) and flange (2). Screw nut (3) all the way down. B. Screw flange (1) into body (2). Pivot hole (3) must face faucet. Pull Push washer (4) and gasket (5) down.
  • Page 4 Install Pop-Up Assembly Apply silicone to underside of flange (1). Insert body (2) into sink. Remove stopper (1) and flange (2). Screw nut (3) all the way down. Push Screw flange onto body. Pivot hole (3) must face back of sink. black gasket (4) down.
  • Page 5 CONNECT TO WATER SUPPLIES. FLUSH SYSTEM/CHECK FOR LEAKS. Remove aerator (1) and turn faucet handles (2) all the way on. Turn on (HOOK-UPS NOT PROVIDED). Determine which type of connection you will be making. hot and cold water supplies (3) and flush water lines for one minute. (1) Ball nose risers (3/8"...
  • Page 6 Maintenance If leak persists: SHUT OFFWATER SUPPLIES Replace Ball Assembly (3). When replacing a part, follow the illustrated instructions provided on the back of the Repair Part Kit. If faucet exhibits very low flow: A. Remove and clean Aerator (4), or If faucet leaks from under handle: B.
  • Page 7 CLEANING AND CARE Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. WARNING: SCRUBBING BUBBLES BATHROOM CLEANER and LYSOL BASIN TUB AND TILE CLEANER must not be used on the clear...
  • Page 8 Indianapolis, IN 46280 St. Thomas, Ontario, Canada N5P 4L1 Delta seller by a purchaser who owns but does not live in the residential dwelling in which the faucet is initially installed, such as in a rented or Attention: Customer Solutions Attention: Customer Service leased single unit or multi-unit detached home (duplex or townhome), or a condominium, apartment building or community living center.
