INSTALLATION AND OPERATING INSTRUCTIONS
CEILING/WALL VENTILATION FAN
READ AND SAVE THESE INSTRUCTIONS
GENERAL SAFETY INFORMATION
1. Make sure that the supply voltage is DC 12V, 1A
2. Follow all local electrical and safety codes, as well
as the Nation Electrical Code (NEC) and the
Occupation Safety and Health Act (OSH Act).
3. Always disconnect the power source before
working on or near the ventilating fan, motor or
junction box.
4. Protect the power cord from sharp edges, oil,
grease, hot surfaces, chemicals or other objects.
5. Do not kink the power cord.
6. Do not install the unit where ducts are configured
as shown in Fig. A.
7. Provide suction parts with proper ventilation.
8. This unit is UL listed for use over a bathtub or
shower when installed in a GFCI protected branch
circuit.
9. These ventilating fans are intended for
residential usage only.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have any questions,
contact the manufacturer.
2. Before servicing or cleaning the unit, switch the
power off at the service panel and lock the
service disconnecting means to prevent the
power from being switched on accidentally.
When the service disconnecting means cannot
be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
2. Installation work and electrical wiring must
be done by qualified person(s) in
accordance with all applicable codes and
standards, including fire -rated construction.
3. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment
manufacturer's guideline and safety standards
such as those published by the National Fire
Protection Association (NFPA), and the
American Society for Heating Refrigeration and
Air Conditioning Engineers (ASHRAE) and the
local code authorities.
4. When cutting or drilling into walls or ceiling s,
do not damage electrical wiring and other
hidden utilities.
Ducted ventilating fans must always be vented
5.
to the outdoors.
6. If this unit is to be installed over a tub or
shower, it must be marked as appropriate for
the application and be connected to a GFCI
10. Not to be installed in a ceiling thermally insulated
to a value greater than R50. (This is required
for installation in Canada only).
Turning angle too large Duct shrink
Too many elbows Elbow near the body
Body
Fig. A
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
2. Not for use in cooking areas. (Fig. B)
3. This product must be properly grounded
To reduce the risk of injury to persons, install
4.
the fan at least 7 feet (2.1m) above the floor.
Fig. B
SUPPLIED ACCESSORIES
Part name Appearance
Grille
Screw

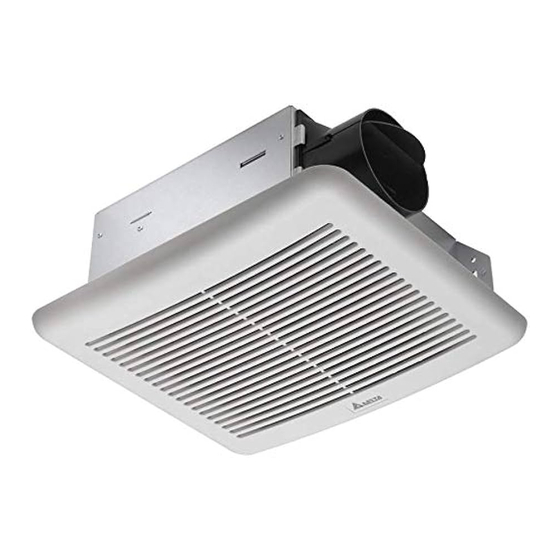

MODEL SLM70-LVDC
DIMENSIONS
SPECIFICATIONS
Voltage
Model
(V)
No.
SLM70-
12V
LVDC
DC
Note: Design and specifications subject to change
without notice.
OPERATION
1. Variable Speed Model: SLM70-LVDC
Use fan switch recommended on page 3 to
apply power to the fan.
MAINTENANCE WARNING:
Disconnect the power source before working on the unit.
Routine maintenance must be done every year.
Quantity
CAUTION:
1. Never use gasoline, benzene, thinner or any
other such chemicals for cleaning the
ventilating fan.
2. Do not allow water to enter the motor.
3. Do not soak resin parts in water over 60°C (140°F).
CLEANING
1. Pull down the spring to remove the grille.
2. Wash and clean the grille. (Use non-
abrasive kitchen detergent, wipe dry with a
new cloth.)
3. Remove dust and dirt from the ventilating
fan using a vacuum cleaner.
4. Using a cloth dampened with kitchen
detergent, remove any dirt from ventilating
fan. Wipe dry with a new cloth. Replace grill.
Page 1.
Air
Frequency
Power Weight
Flow
Note
(W) (lb.)
(Hz) @
0.1SP
(CFM)
Variable
N/A 11 70 3.65
Speed
