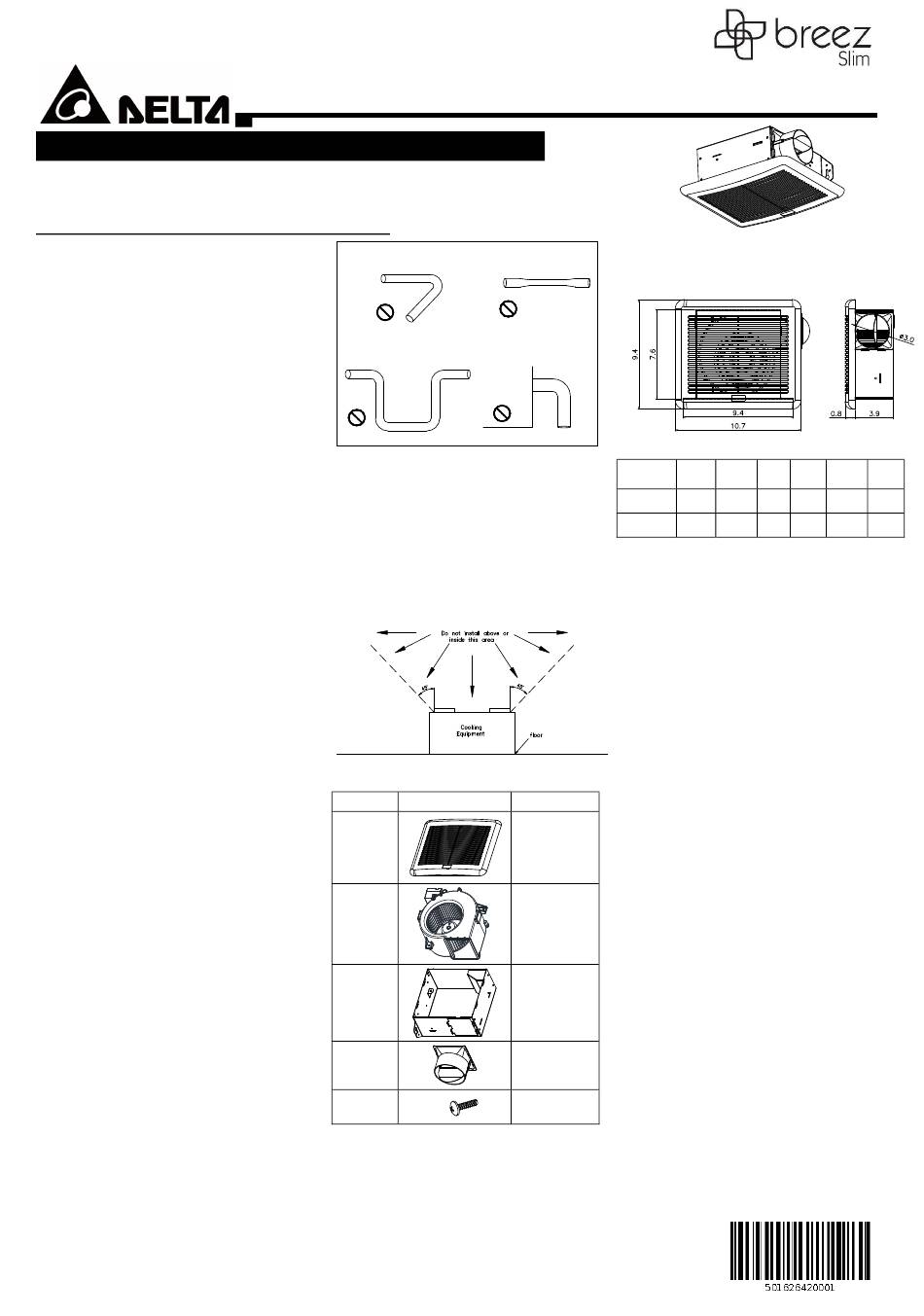

INSTALLATION AND OPERATING INSTRUCTIONS

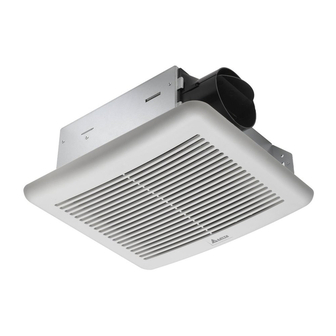

CEILING/WALL VENTILATION FAN
READ AND SAVE THESE INSTRUCTIONS
General Safety Information
1. Make sure that the electric service supply voltage is
AC 120V, 60Hz.
2. Follow all local electrical and safety codes, as well
as the National Electrical Code (NEC) and the
Occupational Safety and Healthy Act (OSH Act).
3. Always disconnect the power source before
working on or near the ventilating fan, motor or
junction box.
4. Protect the power cord from sharp edges, oil,
grease, hot surfaces, chemicals or other objects.
5. Do not kink the power cord.
6. Do not install the unit where ducts are configured
as shown in Fig. A.
7. Provide suction parts with proper ventilation.
8. This unit is UL listed for use over a bathtub or
shower when installed in a GFCI protected branch
circuit.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact
the manufacturer.
2. Before servicing or cleaning the unit, switch the
power off at the service panel and lock the service
disconnecting means to prevent the power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,
to the service panel.
3. Installation work and electrical wiring must be
done by qualified person(s) in accordance with all
applicable codes and standards, including fire-
rated construction.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer's
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating Refrigeration and Air Conditioning
Engineers (ASHRAE) and the local code
authorities.
5. When cutting or drilling into the wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
6. Ducted ventilating fans must always be vented to
the outdoors.
7. If this unit is to be installed over a tub or shower, it
must be marked as appropriate for the application
and be connected to a GFCI (Ground Fault Circuit
Interrupter) – protected branch circuit.
8. Do not use this unit with any other solid-state
control device. Solid-state controls devices may
cause harmonic distortion, which can cause a
motor humming noise.
9. NEVER place a switch where it can be reached
from a tub or shower.
10. Not to be installed in a ceiling thermally insulated
to a value greater than R50. (This is required for
installation in Canada only).
Turning angle too large
Too many elbows
Body
Fig. A
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
2. Not for use in cooking area. (Fig. B)
3. This product must properly connect to the
grounding conductor of the supply circuit.
4. To reduce the risk of injury to persons, install the
fan at least 8.2 feet (2.5m) above the floor.
Cooking area
Fig. B
SUPPLIED ACCESSORIES
Part name Appearance
Grille
Fan
Housing
Duct
Screw
(M4x12)
Duct shrink
DIMENSIONS
Elbow near the body
SPECIFICATIONS
Series No.
SLM50
SLM70
Note: Design and specifications are subject to change
without notice.
Operation
1. Single Speed Model: SLM50
Single speed control mode: Turn the power
switch to operate ON/OFF.
2. Single Speed Model: SLM70
Single speed control mode: Turn the power
switch to operate ON/OFF.
MAINTENANCE WARNING:
Disconnect the power source before working on the unit.
Routine maintenance must be done every year.
CAUTION:
Quantity
1. Never use gasoline, benzene, thinner or any other
such chemicals for cleaning the ventilating fan.
1
2. Do not allow water to enter the motor.
3. Do not soak resin parts in water over 140
°C ).
CLEANING
1. Pull down the spring to remove the grille.
1
2. Wash and clean the grille. (Use non-abrasive
kitchen detergent and wipe dry with a new cloth.)
3. Remove dust and dirt from the ventilating fan
using a vacuum cleaner.
1
4. Using a cloth dampened with kitchen detergent,
remove any dirt from the ventilating fan. Wipe dry
with a new cloth.
5. Replace the grille.
1
3
SERIES NO: SLM70
MODEL NO: SLM70-V2
Air Flow
Voltage Frequency Power Weight
@ 0.1SP
(V) (Hz) (W) (lb.)
(CFM)
120 60 8 50 3.65
120 60 13 70 3.65
o F (60
Note
Single
Speed
Single
Speed
