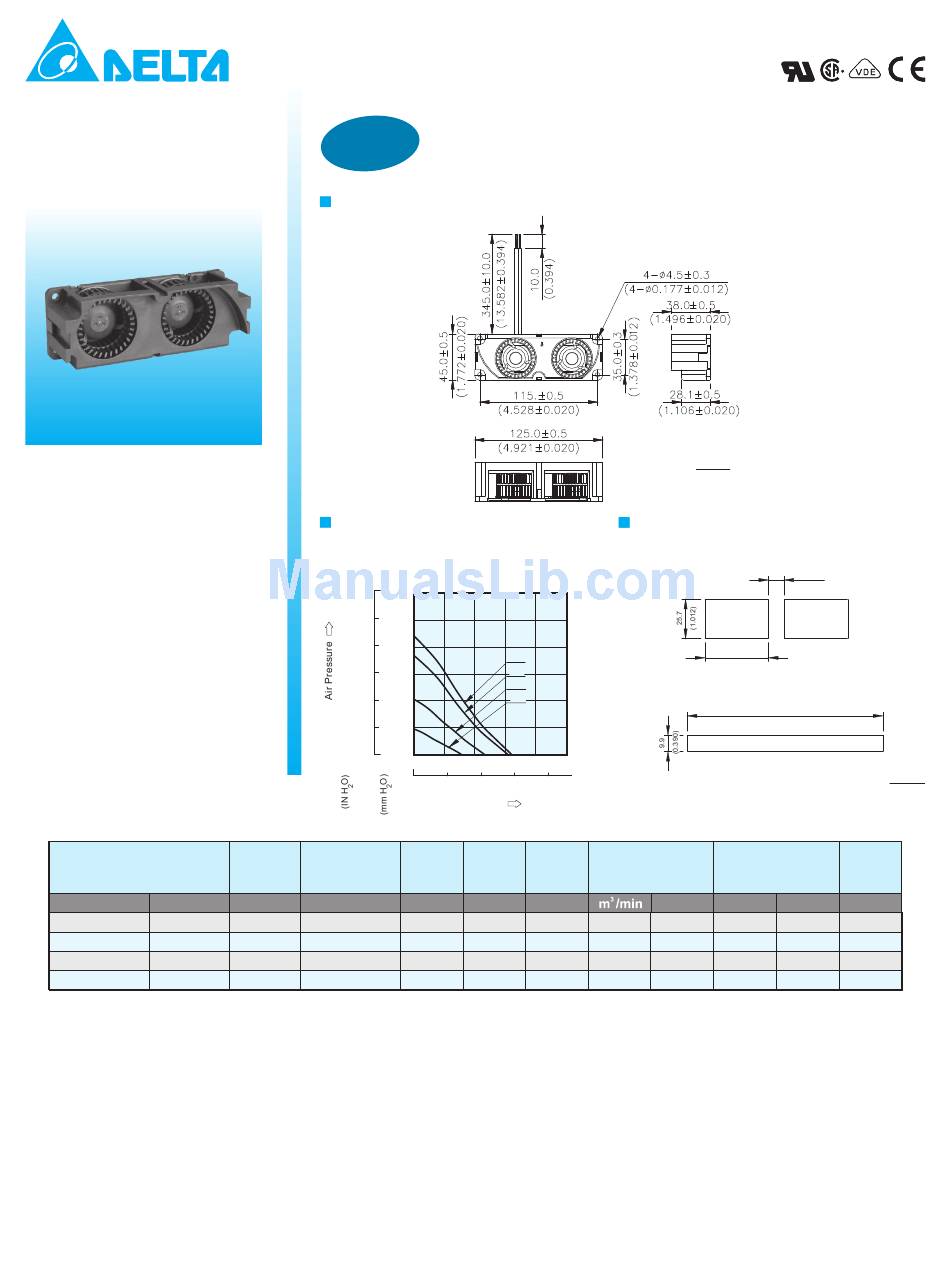

Delta SFB0212H Specification Sheet

* Bearing Type
Ball Bearings
* Material
Impeller & Frame : Plastic(UL 94V-0)
* Lead Wires :
UL 1007 AWG #24 OR Equivalent
Red Wire Positive(+)
Black Wire Negative(-)
* Weight : 110g (3.88 OZ)
MODEL
PART NO. FUNCTION
SFB0212L -R00 / -F00
SFB0212M -R00 / -F00
SFB0212H -R00 / -F00
SFB0212HH -R00 / -F00
* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
SFB
DIMENSIONS DRAWING
P & Q CURVE
0.96
24.0
0.80
20.0
0.64
16.0
0.48 12.0
0.32
8.0
0.16 4.0
0
0
0
0
Operating
Rated Input
Voltage
Voltage Current
Range
VDC VDC Amp
12 5.5 to 13.8 0.22
12 5.5 to 13.8 0.36
12 5.5 to 13.8 0.42
12 5.5 to 13.8 0.62
125 x 38 x 45 MM SERIES
(AT RATED VOLTAGE)
SFB0212X
HH
H
M
L
3
0.2 0.6 0.8 1.0
0.4 (M /MIN)
(CFM)
7.5 15.0 22.5 29.5
Air Flow
Input
Speed
Power
Watt R.P.M.
2.64 3600 0.312
4.32 5000 0.462
5.04 6400 0.614
7.44 7000 0.655
136
mm
UNIT:
(INCH)
MOUNTING PANEL CUTOUT
OUTLET SIDE
11.0
(0.433)
44.0(2X)
(1.732(2X))
INLET SIDE
120.0
(4.724)
Maximum Maximum
Air Flow Air Pressure
CFM mmH O IN H
2
11.02 3.79 0.149
16.32 8.24 0.324
21.68 14.78 0.582
23.13 16.32 0.643
