5.3 Visual configuration tool description

In order to facilitate the user to test and configure the module quickly and efficiently, a PC
configuration tool is provided. The user can use this tool software to connect the serial port of the
module, read and configure the parameters of the module, and receive the detection results reported
by the module. Data, and real-time visual display, which greatly facilitates the use of users.
How to use the host computer tool:
1. Use the USB to serial port tool to connect the module serial port correctly;
2. Select the corresponding serial port number in the host computer tool, set the baud rate to
256000, select the engineering mode, and click to connect the device;
3. After the connection is successful, click the Start button, and the graphical interface on the right
will display the test results and data;
4. After connecting, when the start button is not clicked, or click stop after starting, the mode
parameter information can be read or set;
Note: The parameters cannot be read and configured after clicking start, and configuration can only
be performed after stopping.

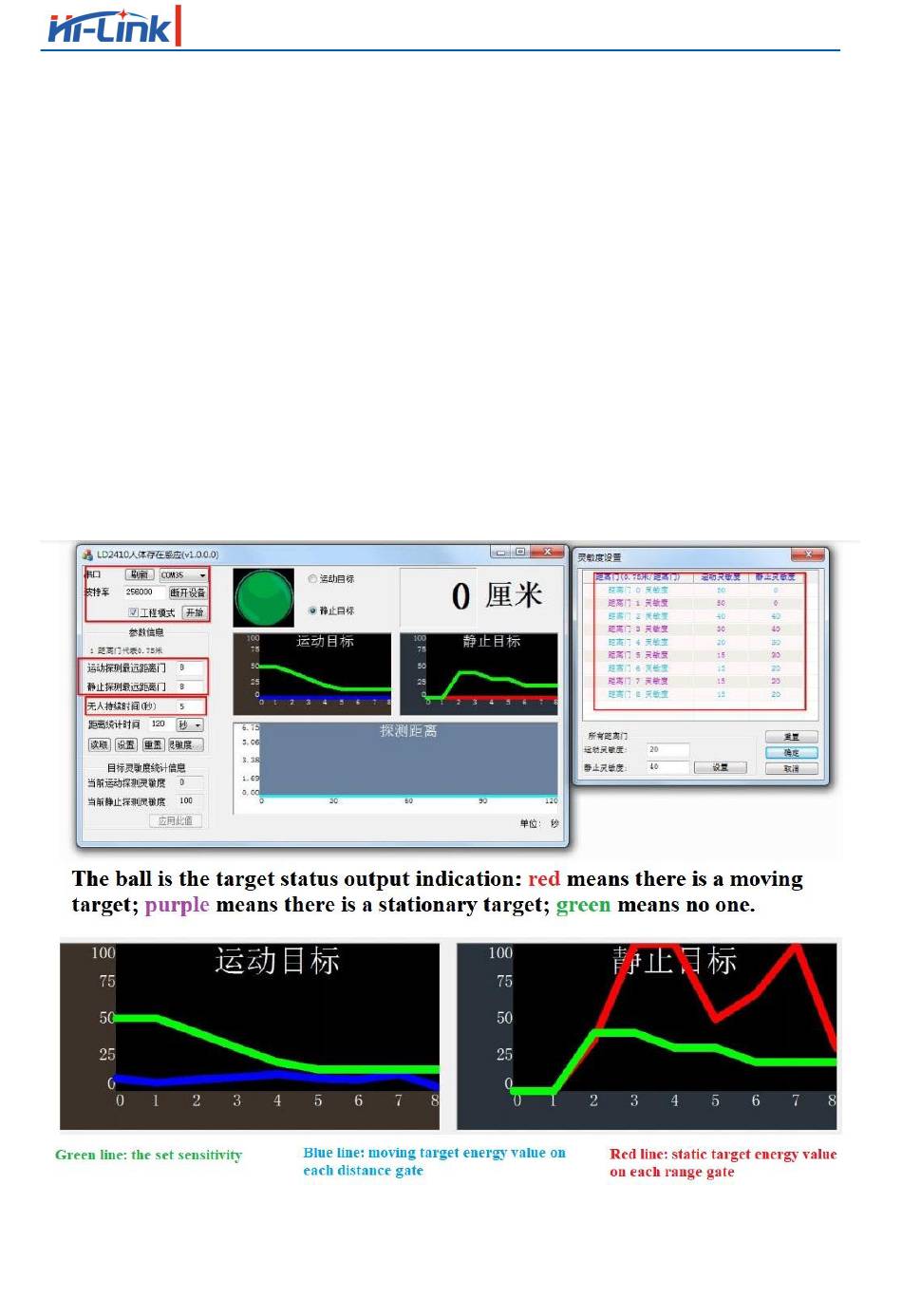

The interface and common functions of the host computer tool are as follows:
