5.4 Mounting method and sensing range
Ceiling
Radar
High 2.6~3m

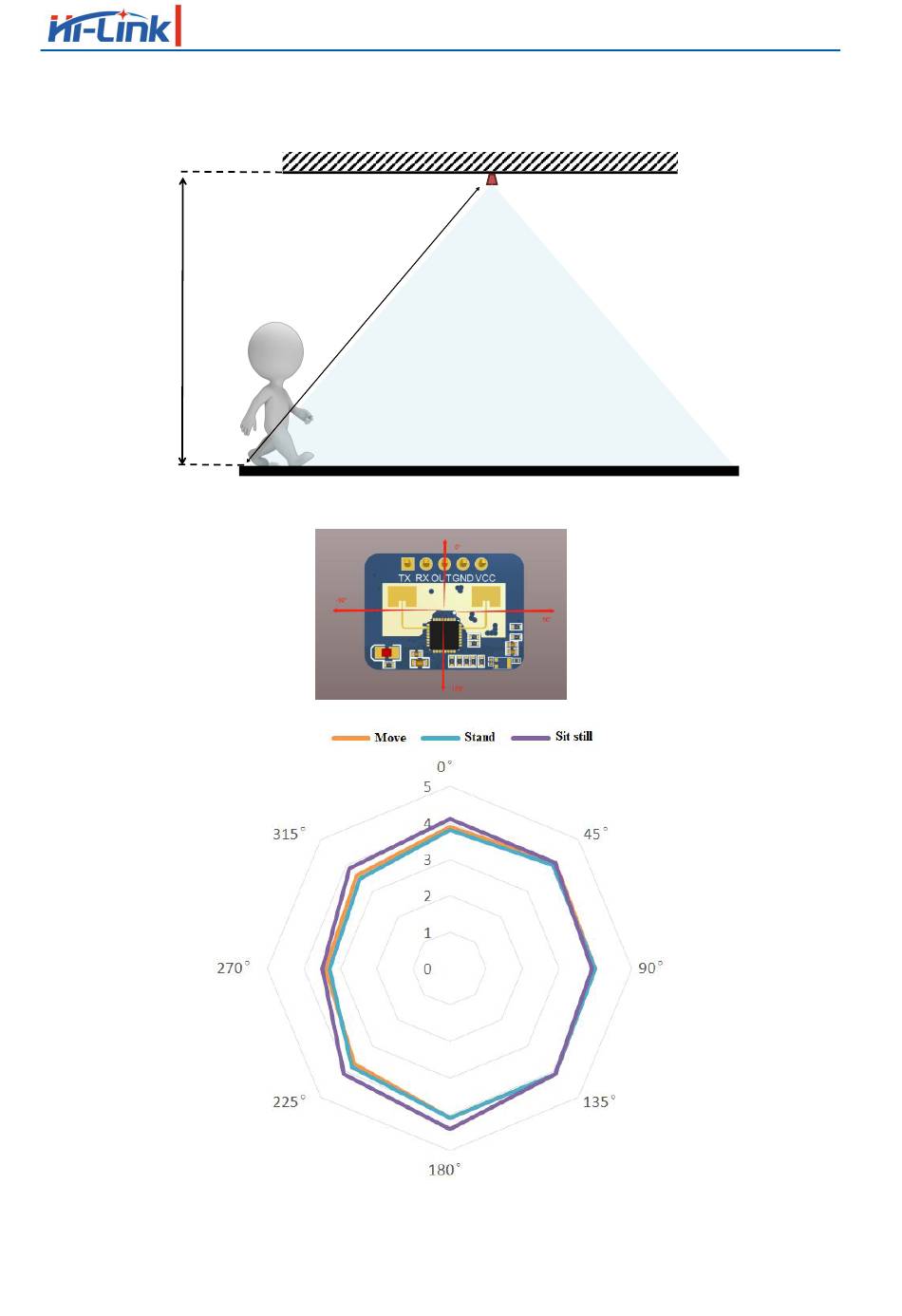

Figure 7 Schematic diagram of ceiling-mounted installation
(distance unit: meters, angle unit: degrees)
Figure 8 Schematic diagram of the detection range (the ceiling height is 3 meters)
