Wall
Radar
High 1.5~2m
5m
(distance unit: meters, angle unit: degrees)

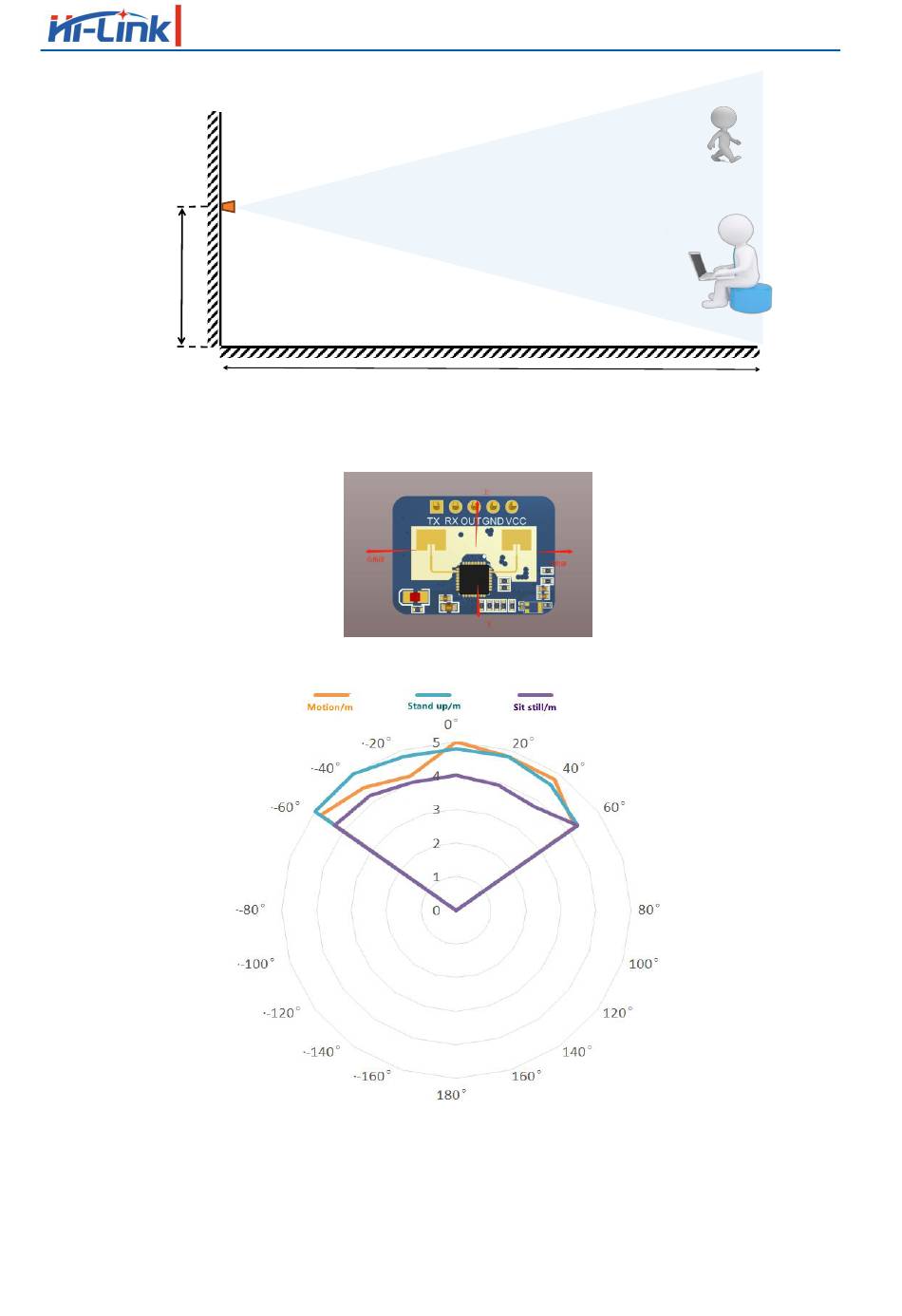

Figure 9 Schematic diagram of wall-mounted installation
Figure 10 Schematic diagram of the detection range (the height of the wall is 1.5 meters)
