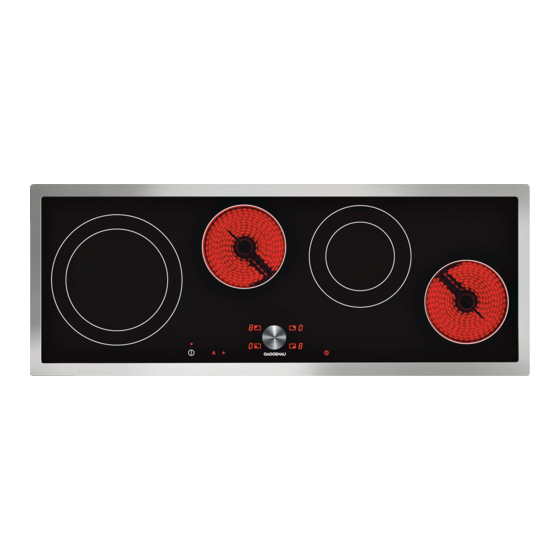

- Page 1 Gaggenau Instruction manual Electronic Cooktop CE 490...
-
Page 3: Table Of Contents
Table of contents Safety notes Child lock Before use Activating the child lock Safety when cooking Deactivating the child lock Damage to the cooktop Removable twist knob Options menu Accessing the options menu Operating for the first time Settings of the options menu Causes of damage Cleaning and care Pots and pans... -
Page 4: Safety Notes
Safety notes Before use Damage to the cooktop Read the instruction manual carefully before Caution! If there are fractures, breaks or cracks in operating the cooktop. Only then will you be able to the glass ceramic, there is a risk of electric shock. operate your cooktop safely and correctly. -
Page 5: Operating For The First Time
Operating for the first time Causes of damage Remove the packaging from the appliance and Pots and pans dispose of it according to local regulations. Rough pan bases scratch the glass ceramic. Be careful to remove all accessories from the packaging. -
Page 6: Features Of Your New Cooktop
Features of your new cooktop Cooking zones CE 490 ø 14.5 cm ø 12 cm / 18 cm ø 18 cm / 23 cm ø 14.5 cm... -
Page 7: Control Panel
Control panel Display for • heat setting 1 - 9 • stand-by 0 • residual heat • cooking zone combination • timer Touch keys for Twist pad with Touch key and • main switch magnetic twist knob display for timer •... -
Page 8: Operating Principle
Operating principle Main switch Twist pad with magnetic twist knob The electronics in the control panel are switched on The twist pad is the area in which you select the using the main switch. Touch the l symbol until the cooking zones with the magnetic knob and can set cooking zone displays show . -
Page 9: Operation
Operation Switching on and off Touch the l main switch symbol. A signal is sounded. The cooking zone displays show . Now the cooktop is ready for use. The cooktop switches off automatically if no further inputs are made within approximately 20 seconds. By touching the l main switch symbol at any time the cooktop can be quickly switched off. -
Page 10: Main Switch With Memory Function
Main switch with memory function The heating and timer settings remain stored for 5 seconds after the cooktop has been switched off. If you switch the cooktop off accidentally and would like to restore the previous settings: Within 5 seconds, touch the l symbol. The cooking zone display flashes the previous settings. -
Page 11: Tips On Saving Energy
Tips on saving energy Use good quality saucepans and pots with thick, even bases. Select the correct saucepan size for each cooking zone. The diameter of the bases of the saucepans and pots should match the size of the cooking zone. Note: Ovenware manufacturers often give the diameter of the top of the saucepan. -
Page 12: Cooking Zone Combination
Cooking zone combination Combination of the dual size cooking zone The cooktop must be switched on by the main switch. Select the cooking zone. To do this, slide the magnetic knob in the direction of the corresponding cooking zone symbol. comes on in the cooking zone display. -
Page 13: Settings Table
Settings table Setting Cooking method Examples Boiling Water Searing Meat Heating Fat, liquids Boiling Soup, sauce 9 - 8. Blanching Vegetables 8 - 6 Roasting Meat, potatoes 6 - 5 Roasting Fish 7 - 6 Baking Pancakes, egg dishes Boiling in open pot Pasta, liquids 6 - 5 Browning... -
Page 14: Timer
Timer With the timer you can program an automatic switch-off time between 1 and 90 minutes in 1- minute-steps for a cooking zone (automatic switch-off). You can set a time value for every cooking zone. Setting an automatic switch-off time The cooktop must be switched on by the main switch. -
Page 15: Changing A Time Value
Changing a time value Select the cooking zone. Touch the q symbol. Use the twist knob to change the duration. Erasing a time value Select the cooking zone. Touch the q symbol. Set the duration to 00. The display goes out after a few seconds. -
Page 16: Quick Boil Timer
Quick boil timer All cooking zones feature a quick boil timer. When the quick boil timer is activated, the set cooking level is boosted for several minutes. This ensures that the continued cooking temperature of the food is reached faster. The appliance switches automatically to the set cooking level after the quick boil time has elapsed. -
Page 17: Child Lock
Child lock You can prevent the cooktop from being switched on unintentionally, i.e. children cannot switch on the cooking zones. Note To activate the child lock you have to make the child lock function available in the options menu first (see options menu). -
Page 18: Options Menu
Options menu Using the options menu, you can customize the following functions of your cooktop: • cooking zone combination • key tones • child lock • reset all parameters • selection time for cooking zones Accessing the options menu Switch on the cooktop using the main switch. Do not select a cooking zone. -
Page 19: Settings Of The Options Menu
Settings of the options menu • Cooking zone combination, individually adjustable for each cooking zone with combination feature. First select the desired cooking zone with combination feature. Then touch the d symbol to choose the setting: every time the cooktop is switched on the combination feature has to be activated if desired. - Page 20 • Selection time for cooking zones 5 seconds or unlimited: if you select a cooking zone, you have to set the cooking level within the selection time. By setting the selection time to umlimited you can change the cooking level at any time without selecting the cooking zone again.
-
Page 21: Cleaning And Care
Cleaning and care Caution! Do not clean the cooktop using high Iridiscent discoloration can be caused by the use of pressure cleaners or steam jets. unsuitable cleaning agents or abrasion from the bases of some pots. These do not interfere with the Caution, risk of burns! Before cleaning, wait operation of the glass ceramic cooktop. -
Page 22: Useful Hints
If you select a low heat setting, the heat will switch the Gaggenau after-sales service. off more often than at higher heat settings. Even at Please quote the E number (product number) and the highest setting the heat switches on and off. -
Page 23: Trouble Shooting
Switch the cooktop off are not successful in remedying the fault with the and, after a few minutes, on again using the aid of the list below, then contact your Gaggenau household fuse or the circuit breaker in the fuse box after-sales service. - Page 24 Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 D-81739 München www.gaggenau.com...
