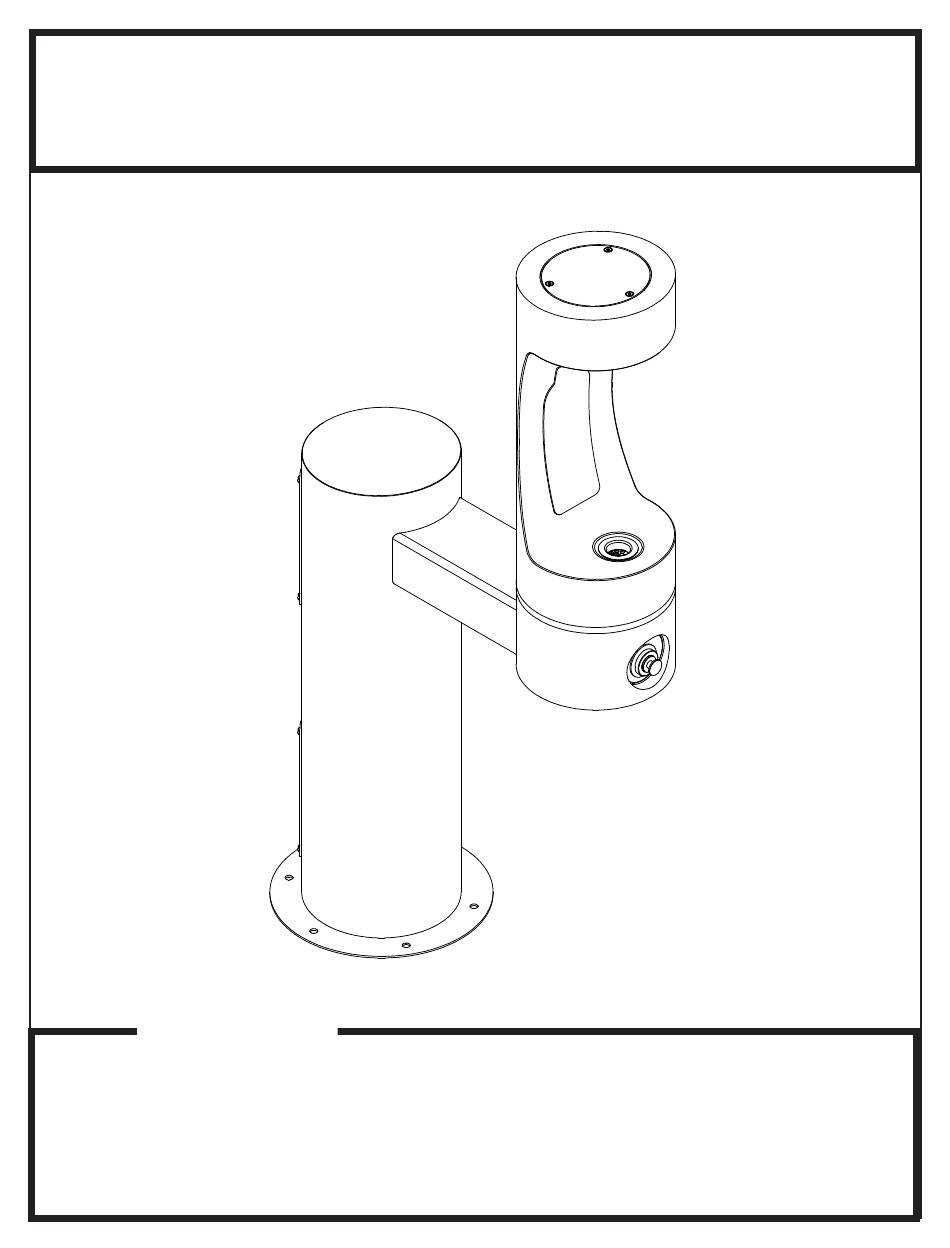

Owners Manual
Model 4410BFFR Tubular Bottle Filler Fountain
with Sanitary Freeze Resistant Single Valve Control Assembly
E
G
C
H
A
INSTALLER
4410BFFR Fountains are among the easiest to install Fountains on the market today. To assure
you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, leave
these instructions with the Fountain for future reference.
PAGE 1
1000004253 (Rev. B - 03/20)

Advertisement

loading
Need help?

Need help?

Do you have a question about the LK4410BFFR FTN A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elkay LK4410BFFR FTN A Series

  • Page 1 4410BFFR_FTN_A LK4410BFFR_FTN_A Owners Manual Model 4410BFFR Tubular Bottle Filler Fountain with Sanitary Freeze Resistant Single Valve Control Assembly INSTALLER 4410BFFR Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS 1/8"...
  • Page 2: Installation Instructions

    4410BFFR_FTN_A LK4410BFFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING.
  • Page 3 4410BFFR_FTN_A LK4410BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4410BFFR FTN. WHEN USING THE SANITARYFR1 VALVE 4" PVC 1/4 BEND 1-1/2" DRAIN TUBE (SUPPLIED BY INSTALLER) (SUPPLIED BY INSTALLER) 4" PVC PIPE (SUPPLIED BY INSTALLER) CONCRETE SLAB CLEANOUT PLUG FOR ACCESS 4"...
  • Page 4 4410BFFR_FTN_A LK4410BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4410BFFR FTN. WHEN USING THE SANITARYFR1 VALVE 14" 356mm (6) 1/2" (13mm) DIA. HOLES EQUALLY SPACED ON A 1-1/4 DRAIN TUBE 12" ( 305mm ) BOLT CENTER SUPPLIED WITH FTN. AIR GAP ASSY. SUPPLIED WITH VALVE 29"...
  • Page 5 4410BFFR_FTN_A LK4410BFFR_FTN_A FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 3 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN Step 1 - Insert the 1/8” O.D. tube (Label A) into the connector (provided with fountain). Insert the 1/8” O.D. tube coming from the fountain push button actuator into the connector.
  • Page 6 4410BFFR_FTN_A LK4410BFFR_FTN_A 3, 11 FIG. 4 FIG. 5 1000004253 (Rev. B - 03/20) PAGE 6...
  • Page 7: Parts List

    4410BFFR_FTN_A LK4410BFFR_FTN_A The Following Items are included with the SanitaryFR1 Valve PARTS LIST ITEM NO. DESCRIPTION PART NO. 110175443890 Hex Nut - 3/8-16 45806C Single Valve 50986C Regulator Holder 56082C Regulator Nut 56092C Poly Tubing - 1/4” (Cut To Length) - To Bubbler 56123C Poly Tubing - 1/8”...
  • Page 8: Troubleshooting And Maintenance

    4410BFFR_FTN_A LK4410BFFR_FTN_A TROUBLESHOOTING AND MAINTENANCE Insufficient Bubbler Flow: Check that the shut-off valve is wide open. Verify minimum 20 PSI supply pressure. Clean inlet strainer screen located in the valve body. Clean rubber orifice in flow control located below frost line in bushing between barb fitting and valve. No Flow: Check for leaks in the air tubing going from the push button to the valve. Make sure the air tubing compression nut is hand tight. Disconnect air tube from push button. Place finger over air outlet. Push button to test diaphragm. Tighten diaphragm cap screws. Replace diaphragm if necessary.
  • Page 9 4410BFFR_FTN_A LK4410BFFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING.
  • Page 10 4410BFFR_FTN_A LK4410BFFR_FTN_A 21, 22 52 OR SEE NOTE 5 Included with Sanitary Valve 1000004253 (Rev. B - 03/20) PAGE 10...
  • Page 11 *select color option to complete part number PRINTED IN U.S.A. FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR CALL TECHNICAL SERVICES AT 1.800.834.4816 Halsey Taylor – halseytaylor.com 1333, BUTTERFIELD ROAD, DOWNERS GROVE, ILLINOIS 60515 Elkay – elkay.com PAGE 11 1000004253 (Rev. B - 03/20)
