Elkay LK4430BF1 Mounting Instructions

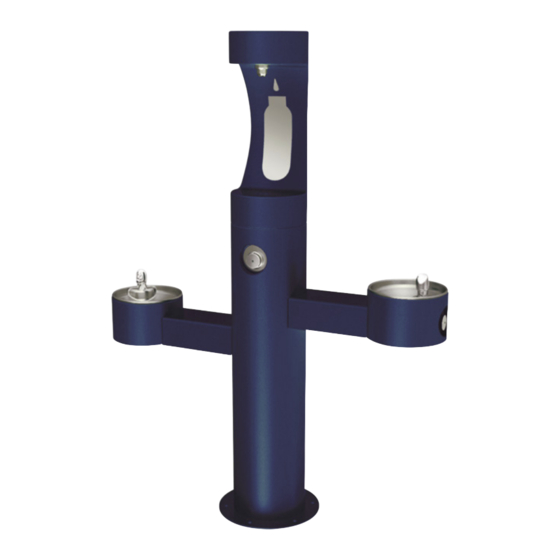

Outdoor Tri-Level Tubular
Bottle Filling Station/Fountain
Model LK4430BF1
(Single Bottle Filler & 2 Fountain Basins)
MOUNTING INSTRUCTIONS and
PLUMBING CONNECTIONS
Mount on a smooth, flat, finished surface with adequate sup-
port (300 lb. load maximum. Secure unit with six 3/8" minimum
screws or anchor bolts (not provided). Refer to rough-in.
Water supply 3/8" O.D. unplated copper tube. Waste 1-1/2" IPS.
Trap and service stop not included.
Operating Pressures: Supply wate:: 20 - 105 psi maximum.
ACTUAL PRODUCT CONFIGURATION WILL VARY BASED ON MODEL ORDERED.
1U = Upper Position; 1M = Middle Position; 1L = Lower Position
MODEL LK4430BF1U SHOWN BELOW
FRONT VIEW
3"
76mm
14 9/16"
371mm
44"
1118mm
B
30"
762mm
B
8"
203mm
LEGEND
A = 3/8" O.D. UNPLATED COPPER TUBE CONNECT - SHUT OFF VALVE BY OTHERS
B = ACCESS PANEL ( 8" X 10" )
C = REMOVABLE BOTTOM COVER
19-30A
(5/13)
r
34 7/16"
C
875mm
19"
ORIFICE
483mm
HEIGHT
33 5/16"
1-1/2"
846mm
DRAIN
27"
686mm
7 15/16"
201mm
ROU GH - I N D I M E N SI ON S
O
SIDE VIEW
19"
483mm
A
FINISHED FLOOR
2222 Camden Court
Oak Brook, IL 60523
elkayusa.com
TOP VIEW
12"
305mm B.C.
14"
O
356mm
48"
1219mm
64"
1626mm
29 3/4"
756mm
ORIFICE
HEIGHT
C
28 7/16"
723mm
22 1/8"
562mm
Printed in U.S.A.
©2013 Elkay
®
1/2"
O
13mm HOLES (6 PL)
BACK VIEW
10"
O
254mm
