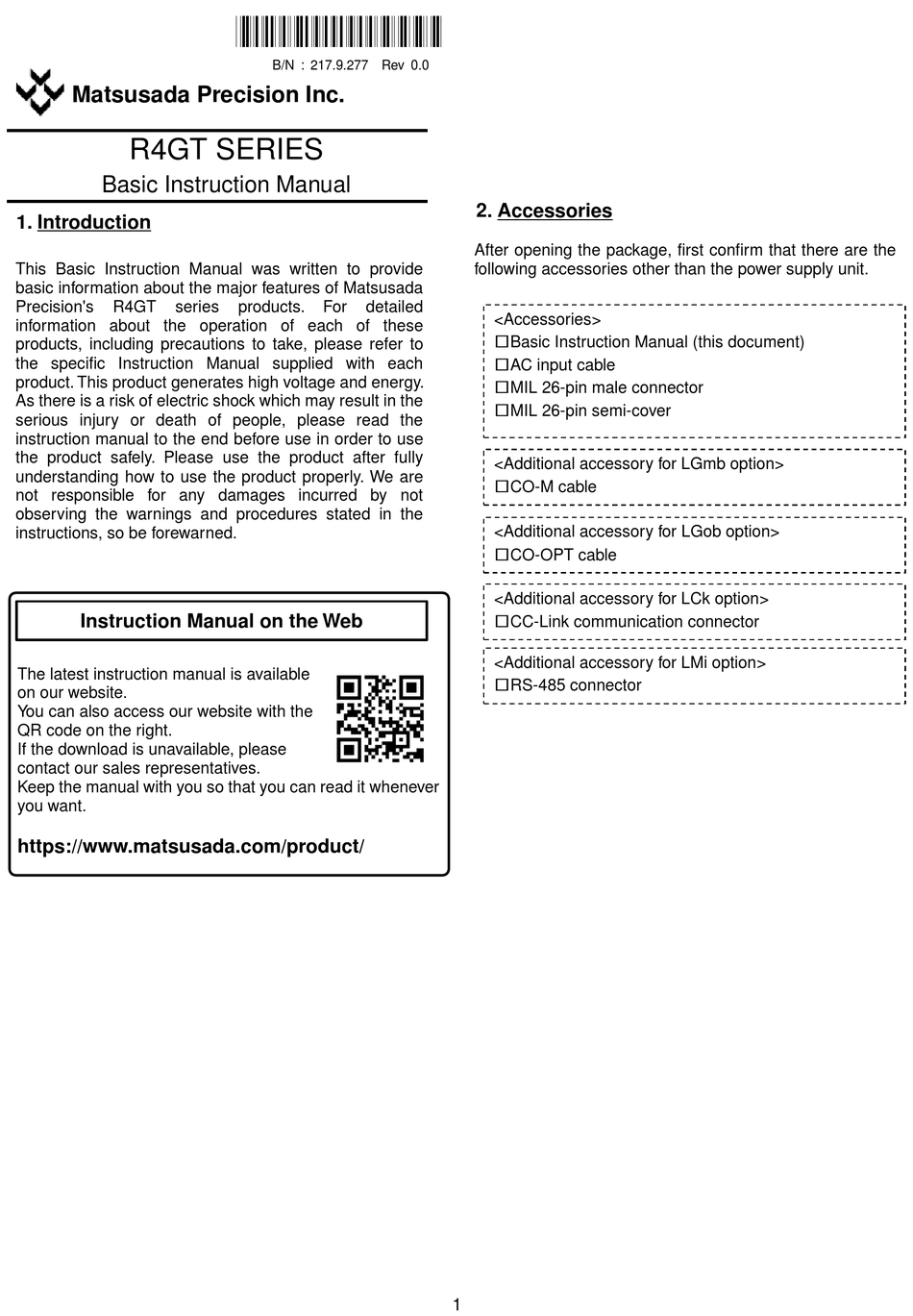

Matsusada Precision R4GT Series Basic Instruction Manual

Matsusada Precision Inc.
R4GT SERIES
Basic Instruction Manual
1. Introduction
This Basic Instruction Manual was written to provide
basic information about the major features of Matsusada
Precision's R4GT series
information about the operation of each of these
products, including precautions to take, please refer to
the specific Instruction Manual supplied with each
product. This product generates high voltage and energy.
As there is a risk of electric shock which may result in the
serious injury or death of people, please read the
instruction manual to the end before use in order to use
the product safely. Please use the product after fully
understanding how to use the product properly. We are
not responsible for any damages incurred by not
observing the warnings and procedures stated in the
instructions, so be forewarned.
Instruction Manual on the Web
The latest instruction manual is available
on our website.
You can also access our website with the
QR code on the right.
If the download is unavailable, please
contact our sales representatives.
Keep the manual with you so that you can read it whenever
you want.
https://www.matsusada.com/product/
*217.9.277**
B/N : 217.9.277 Rev 0.0
products. For detailed
2. Accessories
After opening the package, first confirm that there are the
following accessories other than the power supply unit.
<Accessories>
□Basic Instruction Manual (this document)
□AC input cable
□MIL 26-pin male connector
□MIL 26-pin semi-cover
<Additional accessory for LGmb option>
□CO-M cable
<Additional accessory for LGob option>
□CO-OPT cable
<Additional accessory for LCk option>
□CC-Link communication connector
<Additional accessory for LMi option>
□RS-485 connector
1
