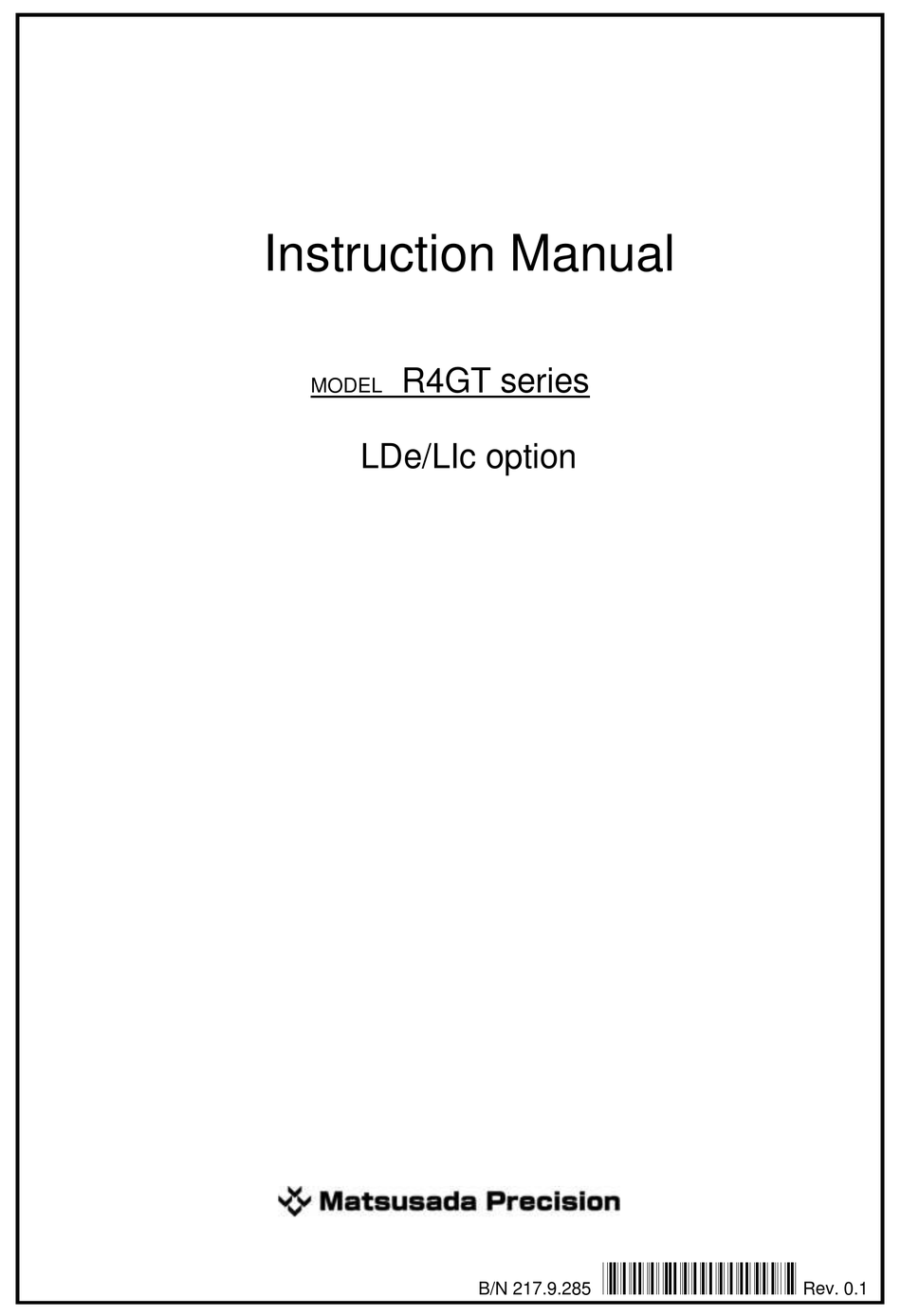

Instruction Manual
R4GT series
MODEL
LDe/LIc option
*217.9.285*
B/N 217.9.285
Rev. 0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R4GT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Matsusada Precision R4GT Series

Summary of Contents for Matsusada Precision R4GT Series

  • Page 1 Instruction Manual R4GT series MODEL LDe/LIc option *217.9.285* B/N 217.9.285 Rev. 0.1...
  • Page 2 ◆ No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of Matsusada Precision. ◆ No patent liability is assumed with respect to the use of the information contained herein.
  • Page 3 Matsusada Precision R4GT series LDe, LIc option...
  • Page 4 Indicates the possible danger of death if Bistable push button switch you drink it and burns or blindness if it attaches. Indicates the possible danger of exposure Alternative Current to radiation. Matsusada Precision R4GT series LDe, LIc option...
  • Page 5 It may result in electric shock or fire.  Regarding the input voltage Check the page describing the input terminals and input voltage in the instruction manual. Do not provide any voltage out of the specifications. Matsusada Precision R4GT series LDe, LIc option...
  • Page 6 In order to avoid electric shock, ground the terminals to discharge using a short-circuit grounding apparatus and check the voltage again. The terminals here mean all terminals like input and output terminals and terminals for communications and remote controls. Matsusada Precision R4GT series LDe, LIc option...
  • Page 7 It requires to be replaced at regular intervals to extend the lifetime. For the replacement, contact us. (It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of electric shock.) Matsusada Precision R4GT series LDe, LIc option...

  • Page 8: Table Of Contents

    Stop Setting by Current Integration Value ................23 5-2-3 Current Integration Value Display Unit Setting ..............23 6 Using with Digital Control ..........................24 Multi-command ........................24 Command ..........................24 6-2-1 Command List ........................24 6-2-2 Command Description ......................26 Matsusada Precision R4GT series LDe, LIc option...

  • Page 9: Introduction

    ・ Be sure to turn off the power of all equipment that makes up the system before you change anything in the system. Matsusada Precision R4GT series LDe, LIc option...

  • Page 10: Start-Up Menu (Lde Option Only)

    By turning the current setting dial, the pulse sequence function can be switched ON/OFF. When “PLS” is displayed, the pulse sequence function ON/OFF can be set. VOLTAGE REMOTE Using the current OUTPUT CURRENT OVP/ setting dial, the pulse sequence function is LOCK switched on/oFF. Matsusada Precision R4GT series LDe, LIc option...
  • Page 11 Using the “OVP/OCP switch (press and hold)”, “s”/“m”/“h” can be switched. Press OVP/OCP switch to change OFF time. VOLTAGE REMOTE Using the current setting OUTPUT Press OVP/OCP. CURRENT OVP/ dial, OFF time setting can be changed. LOCK Matsusada Precision R4GT series LDe, LIc option...
  • Page 12 Using the current OVP/ CURRENT setting dial, repetition Press LOCK. LOCK number can be changed. LOCK switch (press and hold):Registration of various settings Various settings are registered. REMOTE OUTPUT OVP/ Press and hold LOCK. LOCK Matsusada Precision R4GT series LDe, LIc option...
  • Page 13 Using the voltage setting ON ramp time. VOLTAGE dial, ON ramp time setting can be changed. REMOTE Press SET. OUTPUT CURRENT Using the current setting OVP/ dial, each ON ramp time LOCK setting can be changed. Matsusada Precision R4GT series LDe, LIc option...
  • Page 14 “CC”: Ramp operation is set to CC only. Press LOCK switch to set ramp operation to any of CVCC/CV/CC. VOLTAGE REMOTE OUTPUT Using the current OVP/ Press LOCK. CURRENT setting dial, ramp LOCK operation setting can be changed. Matsusada Precision R4GT series LDe, LIc option...
  • Page 15 2 Start-Up Menu (LDe Option only) LOCK switch (press and hold):Registration of various settings Various settings are registered. REMOTE OUTPUT OVP/ Press and hold LOCK. LOCK Matsusada Precision R4GT series LDe, LIc option...

  • Page 16: Using Lde Option

    押下 押下 Pulse sequence starts. パルスシーケンス開始 パルスシーケンス停止 OFF 時間 OFF time ON 時間 ON time １サイクル 1 cycle Pulse sequence is stopped at specified repetition number 指定回数で停止か、OUTPUT 押下により停止します。 or by pressing OUTPUT switch. Matsusada Precision R4GT series LDe, LIc option...

  • Page 17: Example Of Using Pulse Sequence Function

    1.0 s. REMOTE OUTPUT OVP/ Press OVP/OCP. LOCK Press When the number of repetitions is set to 0., ON/OFF OUTPUT. sequence is repeated until OUTPUT switch is pressed. 1.0 sec 2.0 sec 1 cycle Matsusada Precision R4GT series LDe, LIc option...
  • Page 18 Press OVP/OCP. OVP/ LOCK Press Pulse sequence stops. OUTPUT. 1.0 sec 2.0 sec When the number of repetitions is set to 2, ON/OFF sequence is repeated twice and then stopped automatically. 1 cycle Matsusada Precision R4GT series LDe, LIc option...
  • Page 19 Register pulse to 1.0 s. sequence setting. REMOTE REMOTE Press SET. OUTPUT OVP/ OUTPUT OVP/ Press and hold LOCK. LOCK LOCK Set “con” time to 1.0 s. REMOTE Press SET. OUTPUT OVP/ LOCK Matsusada Precision R4GT series LDe, LIc option...
  • Page 20 1.0V Memory “a” Memory “b” Memory “c” When the number of repeats is set to 1 cycle 2, ON/OFF sequence is repeated * Each memory outputs ON time. twice and then stopped automatically. Matsusada Precision R4GT series LDe, LIc option...

  • Page 21: Features Of Ramp Function

    OUTPUT LED OUTPUT. OUTPUT. goes off. 押下 押下 消灯 ON ランプ動作開始 OFF ランプ動作開始 Start of ON ramp operation Start of OFF ramp operation ON ランプ時間 OFF ランプ時間 ON ramp time OFF ramp time Matsusada Precision R4GT series LDe, LIc option...

  • Page 22: Example Of Using Ramp Function

    Press and hold LOCK. LOCK LOCK Set “oFF” time to 1.0 s. REMOTE OUTPUT OVP/ Press OVP/OCP. LOCK OUTPUT LED Press Press goes off. 1.0 sec OUTPUT. OUTPUT. 1.0 sec ON ramp operation OFF ramp operation Matsusada Precision R4GT series LDe, LIc option...
  • Page 23 Press Press OUTPUT. OUTPUT 4.0 sec 1.0 sec 2.0 sec 3.0 sec 5.0 sec 6.0 sec 7.0 sec 8.0 sec to stop. ramp pulse ramp pulse operation operation operation operation 1 cycle Matsusada Precision R4GT series LDe, LIc option...
  • Page 24 “CVCC” (both). LOCK Set “bon” ramp REMOTE time to 1.0 s. OUTPUT OVP/ LOCK Press LOCK. REMOTE Press SET. OUTPUT Register ramp OVP/ setting. LOCK REMOTE OUTPUT OVP/ Press and hold LOCK. LOCK Matsusada Precision R4GT series LDe, LIc option...
  • Page 25 Memory B transition ramp time Memory B output time メモリ C 移行ランプ時間 メモリ C 出力時間 Memory C transition ramp time Memory C output time Roff OFF ランプ時間 Toff OFF 時間 OFF ramp time OFF time Matsusada Precision R4GT series LDe, LIc option...

  • Page 26: Using For Particular Purpose

    Refer to the section of master/slave connection in the instruction manual of this product. Example of Operation Master マスタ機 (Pulse sequence setting) （パルスシーケンス設定） Slave 1 スレーブ機１ (Ramp setting) （ランプ設定） Slave 2 スレーブ機２ (Trigger delay setting) （ディレイトリガ設定） Slave 3 スレーブ機３ (Pulse sequence setting) （パルスシーケンス設定） Matsusada Precision R4GT series LDe, LIc option...

  • Page 27: Lic Option

    Due care should be taken. ・ When OUTPUT ON (OUTPUT LED is on), note that both voltage and current are output. Matsusada Precision R4GT series LDe, LIc option...

  • Page 28: Present Current Integration Value/Time Display

    (Note that, when the numbers exceed 9999.999 in the preset unit, the display is fixed to 9999.999.) Whole number of previous current integration value “b” to indicate previous current integration value Numbers after the decimal point of previous current REMOTE integration value OUTPUT OVP/ LOCK Matsusada Precision R4GT series LDe, LIc option...

  • Page 29: Cumulative Current Integration Value Display

    (Note that, when the numbers exceed 9999.999 in the preset unit, the display is fixed to 9999.999.) Whole number of cumulative current integration value “a” to indicate cumulative current integration value Numbers after the decimal point of cumulative current REMOTE integration value OUTPUT OVP/ LOCK Matsusada Precision R4GT series LDe, LIc option...

  • Page 30: Ovp/Ocp Switch

    OFF: Unused CURRENT REMOTE s: Second OUTPUT Using the current setting OVP/ m: Minute dial, time setting can be H: Hour LOCK changed.Using the voltage setting dial, ＯＮ time setting can be changed. Matsusada Precision R4GT series LDe, LIc option...

  • Page 31: Stop Setting By Current Integration Value

    By turning the current setting dial, the unit can be set to any of Ah (Ah)/An(Am)/AS (As). Current integration VOLTAGE value display unit setting Ah/Am/As CURRENT Using the current setting dial, the REMOTE unit of current integration value OUTPUT OVP/ display can be changed. LOCK Matsusada Precision R4GT series LDe, LIc option...

  • Page 32: Using With Digital Control

    RTON? Check normal ON ramp time. RTOFF? Check OFF ramp time. RTx? Check transition ramp time of each memory in multi-set function + pulse sequence function. RMOD? Check the ramp operation mode. Matsusada Precision R4GT series LDe, LIc option...
  • Page 33 Check the setting of current integration value to stop output. integration value Check of AHU? Check the setting of the unit of current integration value the unit of displayed on voltmeter and ammeter. current integration value Matsusada Precision R4GT series LDe, LIc option...

  • Page 34: Command Description

    Input in seconds only is allowed. :Command syntax example (3) Unit of second “s” can be omitted. Any setting exceeding 9999h59m59.9s is ignored as an invalid command. : Command syntax example (4) This command supports multi-command execution. Matsusada Precision R4GT series LDe, LIc option...
  • Page 35 Input in seconds only is allowed. : Command syntax example (3) Unit of second “s” can be omitted. Any setting exceeding 9999h59m59.9s is ignored as an invalid command. : Command syntax example (4) This command supports multi-command execution. Matsusada Precision R4GT series LDe, LIc option...
  • Page 36 The setting value of OFF output time of pulse sequence function is returned as 0.0s - 9999h59m59.9s. (Command syntax example) PTOFF? (Return) (1) PTOFF = 1234h56m59.9s 1234h56m59.9s is set. (2) PTOFF = 12m34.5s 12m34.5s is set. (3) PTOFF = 1.0s 1.0s is set. Matsusada Precision R4GT series LDe, LIc option...
  • Page 37 (Command syntax example) RＴx? (Return) (1) RTA = 1234h56m59.9s Memory A is set as 1234h56m59.9s. (2) RTB = 12m34.5s Memory B is set as 12m34.5s. (3) RTC = 1.0s Memory C is set as 1.0s. Matsusada Precision R4GT series LDe, LIc option...
  • Page 38 (Command syntax example) (1) RMOD CVCC Ramp operation is set as both CV/CC. (2) RMOD CV Ramp operation is set as CV only. (3) RMOD CC Ramp operation is set as CC only. Matsusada Precision R4GT series LDe, LIc option...
  • Page 39 Unit of current integration value displayed Ah (2) AHU Am Unit of current integration value Am (3) AHU As Unit of current integration value As (Initial value) AHU Ah (Remarks) This command supports multi-command execution. Matsusada Precision R4GT series LDe, LIc option...
  • Page 40 Previous operation time is returned as 0.0s - 9999h59m59.9s. (Command syntax example) AHBTIM (Return) (1) AHBTIM = 1234h56m59.9s (Previous operation time) = (1234h56m59.9s) (2) AHBTIM = 1h0.2m0.30s (Previous operation time) = (1h2m3.0s) (3) AHBTIM = 0.0s (Previous operation time) = (0.0s) Matsusada Precision R4GT series LDe, LIc option...
  • Page 41 (Command syntax example) AHU? (Return) (1) AHU Ah Unit of current integration value displayed Ah (2) AHU Am Unit of current integration value Am (3) AHU As Unit of current integration value As Matsusada Precision R4GT series LDe, LIc option...
  • Page 42 Revision History Rev. No. Rev. Date Revised Contents 2020/11 First edition Matsusada Precision R4GT series LDe, LIc option...
  • Page 43 Matsusada Precision R4GT series LDe, LIc option...
