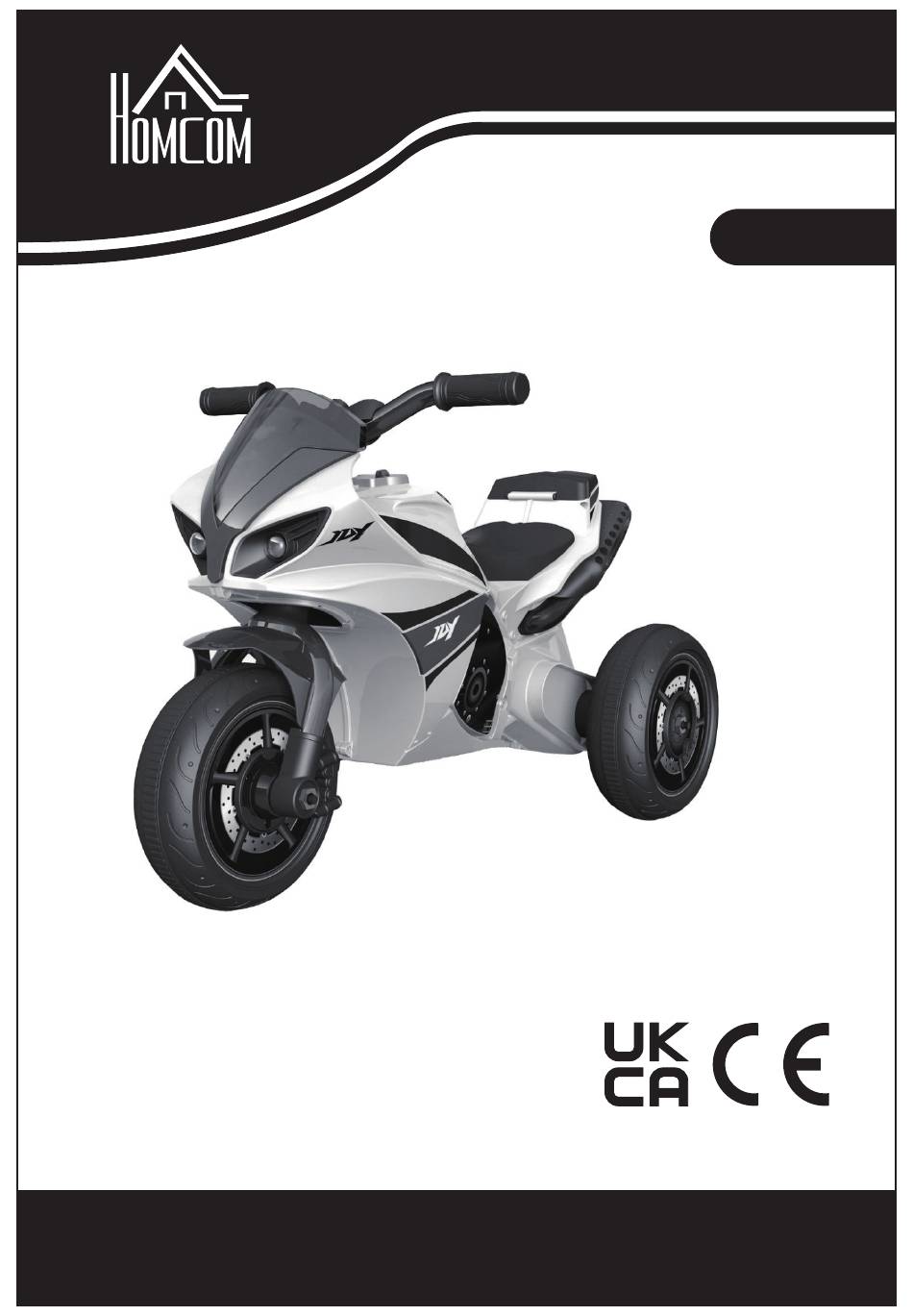

- Page 1 IN221000272V01_UK 370-097 1.Suitable age for 18-36 Months. 2.Maximum user weight: 20KGS. 3.Adult assembly required. IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
- Page 2 Specification Specifications Item 20KGS Maximum weight 73*39*48CM Size Children at 18-36 months Available ages WARNING: (1) This kind of product is fit for the children aged 18-36 month old and maximum load under 20kg maximum load under 20kg. (2) WARNING-Never leave the child unattended. (3) Prevent access to stairs, steps and uneven surface.
- Page 3 PART 1.Body 4.Front mud plate 7.Front wheel 5.Handlebar 2.Windshield 8.Rear wheel *2 3.Fork 6.A rear axle M5*30 Note: All screws, nuts and small plastic parts are pre-installed in the corresponding position, please follow the steps to remove before you install the product.
-
Page 4: Installation Steps
INSTALLATION STEPS Step 1 Install the rear wheel As shown in the arrow, insert the shaft frame into the car body, pass the gasket, rear wheel, gasket and nut (as shown in Figure 1) through the axle, and tighten the nut clockwise (as shown in Figure 2). Rear wheel Gasket Gasket... - Page 5 Step 3 Install mudguard Insert Front mud plate onto the fork Step 4 Install the Fork Insert the front fork into the car body and press tight...
-
Page 6: Install The Battery
Step 6 Step 5 Install the Windshield Install the Handlerbar fix thehandle bar&tap sleeve Stuck the windshield on Body （1X(5X30)Screw&1XM5 Nut） Step 7 Install the battery Loosen the 4x10 mounting screws and open the seat cushion to see the battery box. Add the dry battery and you can use the music function. box and take off the cover;...
