A S E A S Y A S I T G E T S .
Look inside
parts inCLuded
corner shelves (3)
1
corner cleats (2)
2
Note: 48" corner requires 1 corner shelf kit. 72" corner requires 2 corner shelf kits.This instruction set assumes installing a 72" corner.
Corner Shelves
A S E A S Y A S I T G E T S .
A S E A S Y A S I T G E T S .
hardware inCLuded
shelf pins (10)
offset shelf pins (2)
#8 x 50mm screws (14)
screw covers (14)
RS3003
1
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Easy Track RS3003
Summary of Contents for Easy Track RS3003

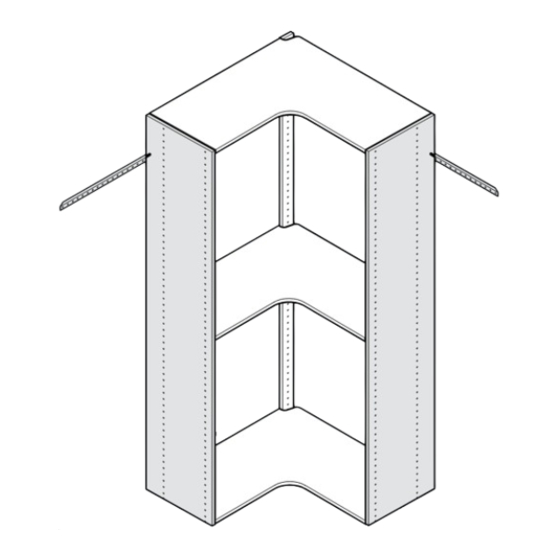

- Page 1 Corner Shelves RS3003 A S E A S Y A S I T G E T S . A S E A S Y A S I T G E T S . A S E A S Y A S I T G E T S .
- Page 2 Remove existing shelves and rods. Accessorize your new closet optional: repair any wall holes and repaint now. outfit your new Easy track closet with accessories that hold, sort, and adjust Gather the tools you’ll need. when you change your mind or your wardrobe.
- Page 3 attach track. Measure desired height at the corner of both Locate studs. tap the wall or use an electronic stud walls. 75.5" above the floor is recommended. finder to locate studs. Mark wall ⁄ " below horizontal line. Studs (2 x 4) are usually located on 16" centers the track height can be adjusted depending on the measured from the left or right side.
- Page 4 For holes marked as studs, drill pilot holes with a ⁄ " drill Install toggle channels. bit at holes marked for studs. attach the track to wall using #8 x 50mm screws. If a toggle is needed, use a ⁄ "...
- Page 5 position cleat in corner and level with vertical panel. remove vertical panel. Install 2nd and 3rd cleat to end of previously installed one with #8 x 50mm Screw cleat to wall using two (2) #8 x 50mm screws. screws. two (2) cleats are supplied in one corner shelf kit.
- Page 6 rotate assembly as shown. position the second vertical panel on the floor with the front edge up and next to the corner shelves. attach the vertical panel to the two corner shelves using #8 x 50mm screws. Lift assembled corner unit onto track. two people Install top shelf.
