- Page 1 Fieldpiece Job Link® System Power Clamp Meter OPERATOR'S MANUAL Model SC680...
-
Page 2: Safety Information
Safety Information • Do not use during electrical storms or in wet weather. Understand and follow operating instructions • Do not use around explosive gas, dust, or vapor. carefully. • Do not apply more than the rated voltage to, A Warning identifies conditions and procedures as marked on the meter, between terminals or that are dangerous to the user. - Page 3 flash from short circuits. • Always work with a partner. • Do not place magnet inside Category IV panel. • Keep fingers behind the finger guards on the Place it outside the panel instead. probes. All voltage tests: All voltage ranges will CAUTION withstand up to 1000VDC/750VAC rms.
-
Page 4: What's Included

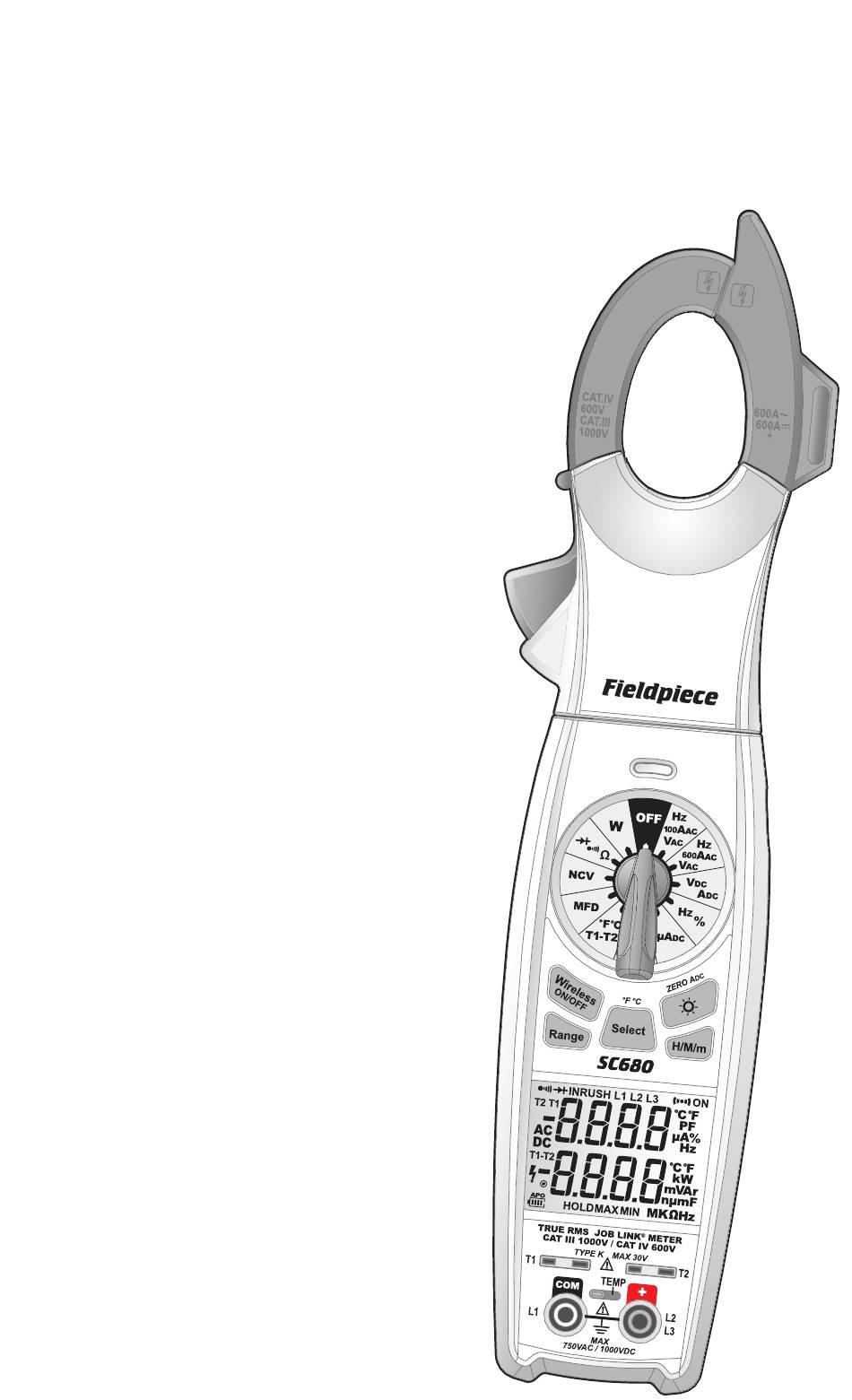

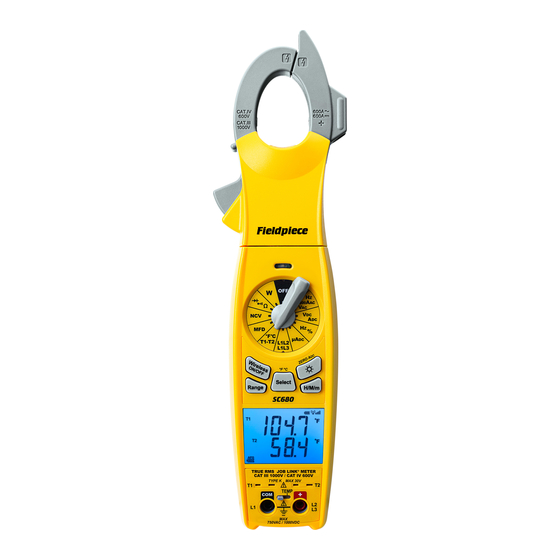

Description frequency drives with True RMS sensing technology. Measure the starting amp draw of a compressor with Your SC680 is the top of the line clamp meter with Inrush current mode. wireless functionality for the HVACR professional. Send Illuminate the way with a powerful LED built into the your electrical measurements directly to the Job Link®... - Page 5 SC660 (Press for 1 second to clear and exit) CAT III 600V Deactivate autoranging and select the Select The SC680 is loaded with the measurement range manually. Range H/M/m SC660 parameters essential for HVACR professionals. Select the parameter on the dial you want to...
-
Page 6: Display Icons
Display Icons Battery Life Monitor Auto Power Off Enabled High Voltage Warning (>30VAC/VDC) Manual Ranging Data Hold Maximum Minimum Inrush AAC Wireless ON to Job Link® mobile app Watts (Active Power) Power Factor Reactive Power Apparent Power Easy to Read Display Temperature Inputs Delta T Fahrenheit / Celsius... - Page 7 Measurement Dial Volts AC (VAC) True RMS (50-400Hz) Test power lines (120 to 480VAC), test 24VAC going to controls and test for transformer failure. Ranges: 1000mV, 10V, 100V, 750V Resolution: 0.1mV Accuracy: ±(1.5% + 10) 50Hz to 60Hz ±(2.0% + 10) 60Hz to 400Hz Unspecified at 400Hz and greater Minimum Input Voltage Range: >20 digits Low Pass Filter: >1 kHz...
- Page 8 Amps AC (AAC) True RMS (50-60Hz) Test isolated power lines. Press SELECT on VAC/100AAC/Hz or VAC/600AAC/Hz position. Read AAC in upper display and VAC on the lower display. For AC current <100AAC, select VAC/100AAC/Hz switch position and for AC current >100AAC, select the VAC/600AAC/Hz switch position. Range: 100A, 600A Resolution: 0.01A Crest factor: ≤...
-
Page 9: Capacitance (Mfd)
MicroAmps DC (µADC) Test flame rectifier diodes on a heater control. Connect leads between flame sensor probe and control module. Turn heating unit on. When the flame is on, there should be a measurable µADC signal, typically under 10µADC. Compare measurement to manufacturer’s specification to determine if replacement is necessary. -
Page 10: Resistance (Ω)
Used for “ohming out” a compressor. A 0.01Ω resolution is useful to test the resistance between the terminal poles because the values are typically very low. For best practice, use a megger (Fieldpiece SMG5) to measure motor winding insultion to ground.
