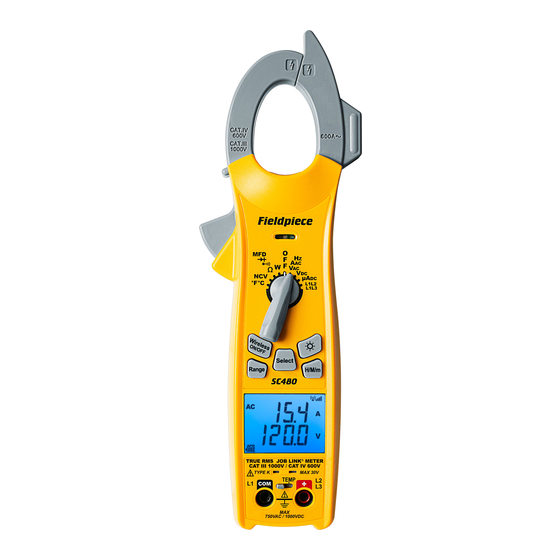

- Page 1 Fieldpiece Job Link® System Power Clamp Meter OPERATOR'S MANUAL Model SC480...
-
Page 2: Safety Information
Safety Information • Do not use during electrical storms or in wet weather. Understand and follow operating instructions • Do not use around explosive gas, dust, or vapor. carefully. • Do not apply more than the rated voltage to, A Warning identifies conditions and procedures as marked on the meter, between terminals or that are dangerous to the user. - Page 3 flash from short circuits. • Always work with a partner. • Do not place magnet inside Category IV panel. • Keep fingers behind the finger guards on the Place it outside the panel instead. probes. CAUTION All voltage tests: All voltage ranges will To protect yourself, think “Safety First”: withstand up to 1000VDC/750VAC rms.
-
Page 4: What's Included

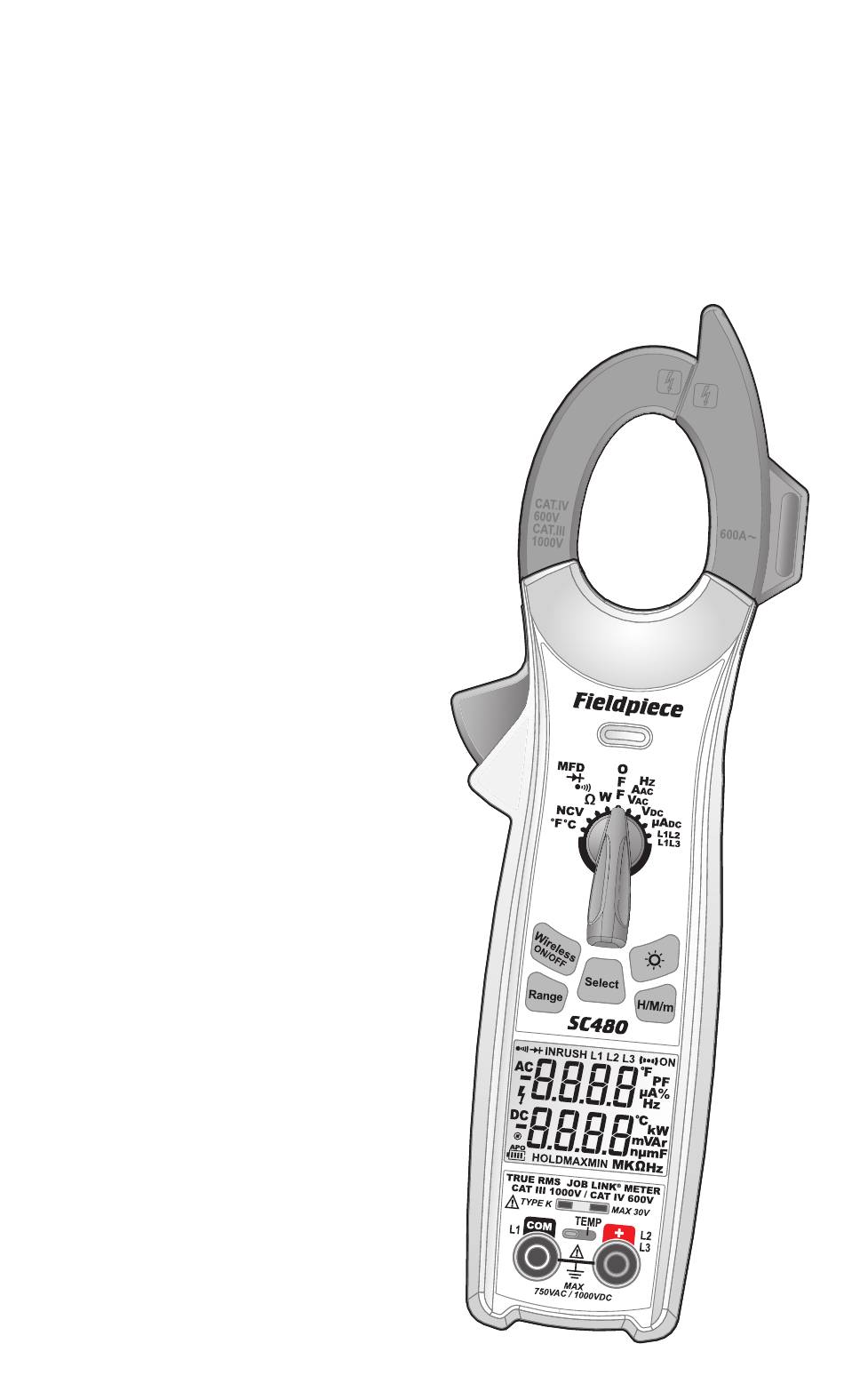

Help determine system efficiency by directly Fieldpiece accessory heads. measuring power consumption (W) of the system. What’s Included Use this value to inform your customer of energy saving measures you can take to help them save •... - Page 5 Measurements Dial Buttons Illuminate backlight Select Range H/M/m SC660 Activate Inrush AAC capture mode INRUSH Activate wireless to connect to Job Link® System mobile app TRUE RMS AUTO OFF TYPE K 30V MAX Activate and cycle through Hold, Maximum, Select TEMP minimum, and real-time measurements Range...
-
Page 6: Display Icons
Display Icons Battery Life Monitor Auto Power Off Enabled High Voltage Warning (>30VAC/VDC) Manual Ranging Data Hold Maximum Minimum Inrush AAC Wireless ON to Job Link® mobile app Watts (Active Power) Power Factor Reactive Power Apparent Power Fahrenheit Easy to Read Display Celsius Continuity Test Diode Test... - Page 7 Measurement Dial Volts AC (VAC) True RMS (50-400Hz) Test power lines (120 to 480VAC), test 24VAC going to controls and test for transformer failure. Ranges: 1000mV, 10V, 100V, 750V Resolution: 0.1mV Accuracy: ±(1.5% + 10) 50Hz to 60Hz ±(2.0% + 10) 60Hz to 400Hz Unspecified at 400Hz and greater Minimum Input Voltage Range: >20 digits Low Pass Filter: >1 kHz...
- Page 8 Amps AC (AAC) True RMS (50-60Hz) Inrush AAC Current Test isolated power lines. Press SELECT once on VAC/AAC/Hz position. Inrush mode captures the starting amp draw of a motor. Starting amp Read AAC in upper display and VAC on the lower display at the same time. draw can assist in diagnosing a motor before it fails.
-
Page 9: Capacitance (Mfd)
MicroAmps DC (µADC) Test flame rectifier diodes on a heater control. Connect leads between flame sensor probe and control module. Turn heating unit on. When the flame is on, there should be a measurable µADC signal, typically under 10µADC. Compare measurement to manufacturer’s specification to determine if replacement is necessary. -
Page 10: Resistance (Ω)
Resistance is default test in this switch position. For HOLD best practice, use a megger (Fieldpiece SMG5) to measure motor winding insultion to ground. Ranges: 100Ω, 1000Ω, 10kΩ, 100kΩ, 1000kΩ, 10MΩ, 50MΩ... -
Page 11: Temperature Calibration
Temperature Temperature Calibration Plug any Type K thermocouple directly into the meter to measure Thermocouples (T/C) are not calibrated directly. Instead, each T/C jack temperature. Measure outdoor dry bulb temperature for target superheat (T1 and T2) must be calibrated to the particular T/C that is plugged into it. while at the condensor with the Type K thermocouple input. - Page 12 Power (Watts, VAr, VA, PF) Power (Watts, VAr, VA, PF) Help determine system efficiency by measuring the power exerted Accuracy: Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH by the system. The actual power consumed by the system is called Active Effective Current Range: 2AAC/ADC to 600AAC/ADC Power and is measured in watts (W or kW).
- Page 13 Phase Rotation Test (L1L2, L1L3) Step 2: Connect Leads Connect 3-phase power lines in the correct order to the terminals of Connect both black and red a motor to ensure the motor turns in the intended direction. Incorrect test leads to any two of the three wiring can damage some equipment.
- Page 14 Expandability test can not be performed and “Err” will show on the top display. Your SC480 is compatible with all Fieldpiece 2 After phase rotation test is complete, press SELECT Accessory Heads. With Fieldpiece Accessory Heads, button to begin a new phase rotation test.
-
Page 15: Wireless Mode
JL3KR4 Wireless Charge Test Kit through obstructions. • SRS3 Wireless Refrigerant Scale Wireless frequency: 2.4 GHz Go to www.fieldpiece.com for all Job Link® System options. Wireless Compatibility Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 (Latest compatibility at www.fieldpiece.com) -
Page 16: Battery Replacement
Battery Replacement Functions When your meter’s battery is low, the battery icon Auto Power Off will appear empty and blink for 30 seconds. “bAtt” will display and meter will power off. Auto power off or APO will automatically turn off Turn dial to OFF position, disconnect test leads your meter after 30 minutes of inactivty. -
Page 17: Specifications
Certifications and Specifications Module IDs Display: 10000 count dual display Backlight: 5 minute duration with auto-off, blue color Overrange: “OL” or “-OL” is displayed UL 61010-1, Third Edition Measurement rate: 3.3 times per second, nominal Zero: Automatic Operating environment: 32°F to 122°F (0°C to 50°C) at <70%RH EN61010-1, EN61010-2-032 Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with EN61010-2-033, EMC EN61326-1... - Page 18 FCC Statement IC Statement This equipment has been tested and found to comply with the limits This device contains licence-exempt transmitter(s)/receiver(s) that for a Class B digital device, pursuant to Part 15 of the FCC Rules. These comply with Innovation, Science and Economic Development Canada’s limits are designed to provide reasonable protection against harmful licence-exempt RSS(s).
-
Page 19: Limited Warranty
Fieldpiece dealer. y (2) este equipo o dispositivo debe aceptar cualquier interferencia, Fieldpiece will replace or repair the defective unit, at its option, subject to incluyendo la que pueda causar su operación no deseada. - Page 20 SC480 © Fieldpiece Instruments, Inc 2020; v12...
