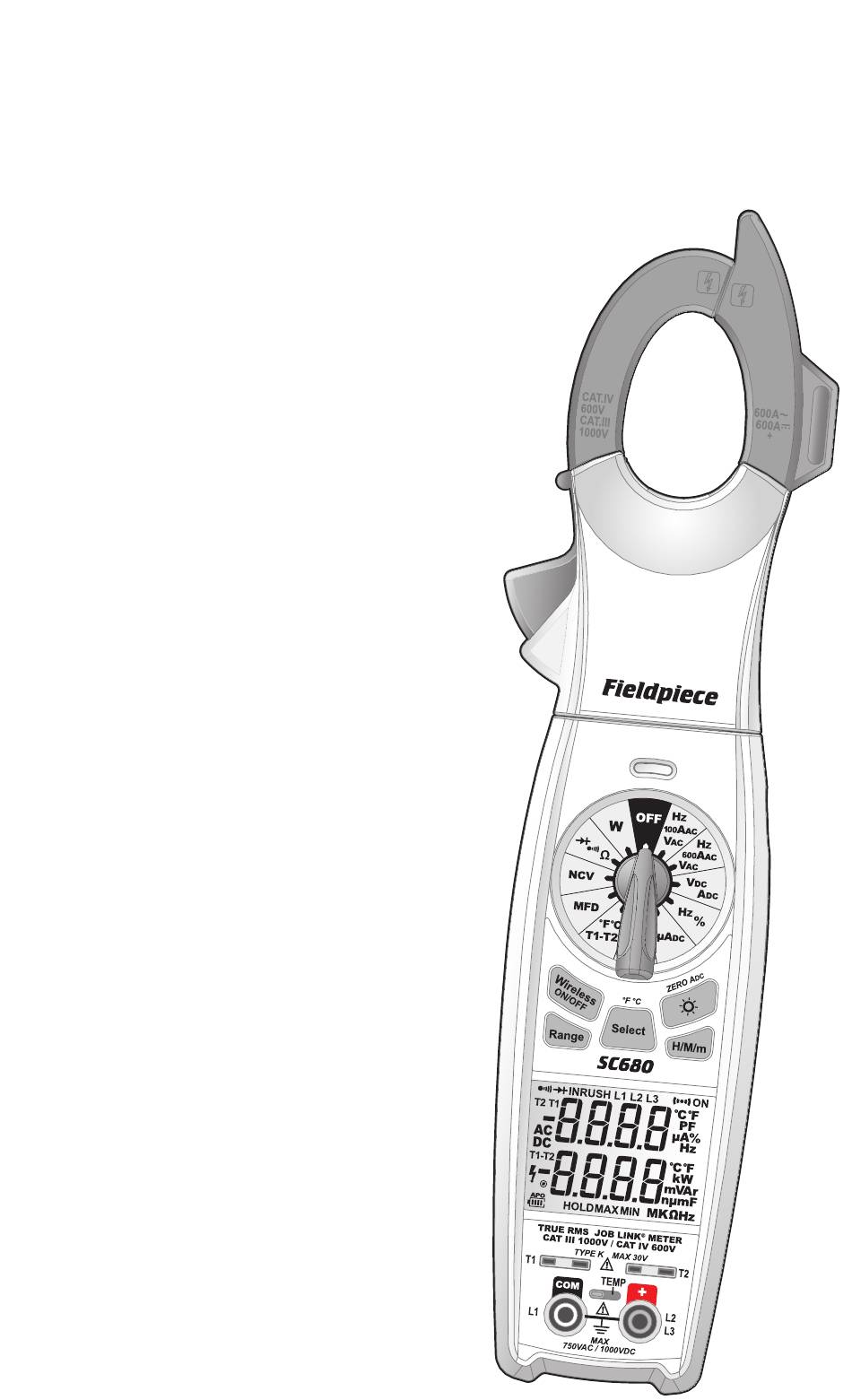

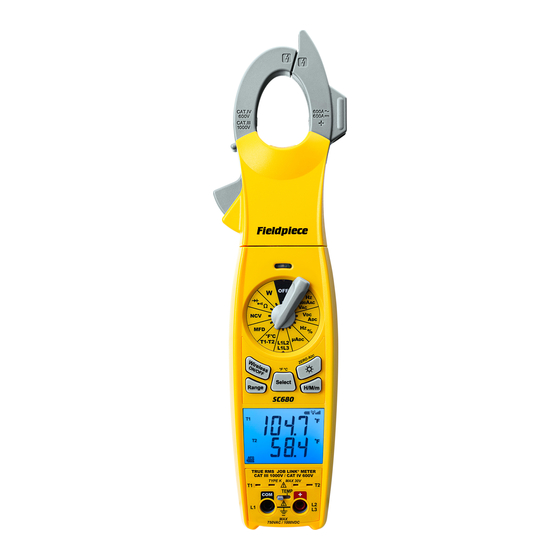

- Page 1 Fieldpiece Job Link® System Power Clamp Meter OPERATOR'S MANUAL Model SC680...
-
Page 2: Safety Information
Safety Information • Do not use during electrical storms or in wet weather. Understand and follow operating instructions • Do not use around explosive gas, dust, or vapor. carefully. • Do not apply more than the rated voltage to, A Warning identifies conditions and procedures as marked on the meter, between terminals or that are dangerous to the user. - Page 3 flash from short circuits. • Always work with a partner. • Do not place magnet inside Category IV panel. • Keep fingers behind the finger guards on the Place it outside the panel instead. probes. All voltage tests: All voltage ranges will CAUTION withstand up to 1000VDC/750VAC rms.
-
Page 4: What's Included
Help determine system efficiency by directly using the single test lead holder. Test leads come with measuring power consumption (W) of the system. Use removable gold plated tips to reliably connect Fieldpiece this value to inform your customer of energy saving accessory heads. - Page 5 Measurements Dial Buttons Illuminate backlight. Press for 1 second to zero Amps DC Select Range H/M/m SC660 Activate Inrush AAC capture mode INRUSH Activate wireless to connect to Job Link® System mobile app TRUE RMS AUTO OFF Activate and cycle through Hold, Maximum, TYPE K 30V MAX minimum, and real-time measurements...
-
Page 6: Display Icons
Display Icons Battery Life Monitor Auto Power Off Enabled High Voltage Warning (>30VAC/VDC) Manual Ranging Data Hold Maximum Minimum Inrush AAC Wireless ON to Job Link® mobile app Watts (Active Power) Power Factor Reactive Power Apparent Power Easy to Read Display Temperature Inputs Delta T Fahrenheit / Celsius... - Page 7 Measurement Dial Volts AC (VAC) True RMS (50-400Hz) Test power lines (120 to 480VAC), test 24VAC going to controls and test for transformer failure. Ranges: 1000mV, 10V, 100V, 750V Resolution: 0.1mV Accuracy: ±(1.5% + 10) 50Hz to 60Hz ±(2.0% + 10) 60Hz to 400Hz Unspecified at 400Hz and greater Minimum Input Voltage Range: >20 digits Low Pass Filter: >1 kHz...
- Page 8 Amps AC (AAC) True RMS (50-60Hz) Test isolated power lines. Press SELECT on VAC/100AAC/Hz or VAC/600AAC/Hz position. Read AAC in upper display and VAC on the lower display. For AC current <100AAC, select VAC/100AAC/Hz switch position and for AC current >100AAC, select the VAC/600AAC/Hz switch position. Range: 100A, 600A Resolution: 0.01A Crest factor: ≤...
-
Page 9: Capacitance (Mfd)
MicroAmps DC (µADC) Test flame rectifier diodes on a heater control. Connect leads between flame sensor probe and control module. Turn heating unit on. When the flame is on, there should be a measurable µADC signal, typically under 10µADC. Compare measurement to manufacturer’s specification to determine if replacement is necessary. -
Page 10: Resistance (Ω)
Used for “ohming out” a compressor. A 0.01Ω resolution is useful to test the resistance between the terminal poles because the values are typically very low. For best practice, use a megger (Fieldpiece SMG5) to measure motor winding insultion to ground. -
Page 11: Temperature Calibration
Dual Temperature (T1, T2, T1-T2) Temperature Calibration Plug any Type K thermocouple directly into the meter to measure Thermocouples (T/C) are not calibrated directly. Instead, each T/C jack temperature. Test for proper airflow across the evaporator coil by (T1 and T2) must be calibrated to the particular T/C that is plugged into it. measuring delta T with the dual temperature inputs. - Page 12 Power (Watts, VAr, VA, WDC, PF) Power (Watts, VAr, VA, WDC, PF) Help determine system efficiency by measuring the power exerted by the system. The actual power consumed by the system is called Active Accuracy: Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH Power and is measured in watts (W or kW).
- Page 13 Phase Rotation Test (L1L2, L1L3) Step 2: Connect Leads Connect 3-phase power lines in the correct order to the terminals of Connect both black and red a motor to ensure the motor turns in the intended direction. Incorrect test leads to any two of the three wiring can damage some equipment.
- Page 14 50-80Hz to perform the phase rotation test. LCD X LO BATT READ Air Velocity & Temperature Average Head English (16 sec) Metric Real time English Metric Ft/min KM/hr ºF ºC AUTO- AAV3 Visit www.fieldpiece.com to see all of the different Accessory Heads that Fieldpiece offers.
-
Page 15: Wireless Mode
Wireless range: Up to 115 feet (35m) line of sight. Distance decreases • SRS3 Wireless Refrigerant Scale through obstructions. Go to www.fieldpiece.com for all Job Link® System options. Wireless frequency: 2.4 GHz Wireless Compatibility Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0... -
Page 16: Battery Replacement
Battery Replacement Functions When your meter’s battery is low, the battery icon Auto Power Off will appear empty and blink for 30 seconds. “bAtt” will display and meter will power off. Auto power off or APO will automatically turn off Turn dial to OFF position, disconnect test leads your meter after 30 minutes of inactivty. -
Page 17: Specifications
Certifications and Specifications Module IDs Display: 10000 count dual display Backlight: 5 minute duration with auto-off, blue color Overrange: “OL” or “-OL” is displayed UL 61010-1, Third Edition Measurement rate: 3.3 times per second, nominal Zero: Automatic Operating environment: 32°F to 122°F (0°C to 50°C) at <70%RH EN61010-1, EN61010-2-032 Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with EN61010-2-033, EMC EN61326-1... - Page 18 FCC Statement IC Statement This device contains licence-exempt transmitter(s)/receiver(s) that This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These comply with Innovation, Science and Economic Development Canada’s limits are designed to provide reasonable protection against harmful licence-exempt RSS(s).
-
Page 19: Limited Warranty
(2) este equipo o dispositivo debe aceptar Fieldpiece dealer. Fieldpiece will replace or repair the defective unit, at cualquier interferencia, incluyendo la que pueda causar su operación no its option, subject to verification of the defect. - Page 20 SC680 © Fieldpiece Instruments, Inc 2020; v12...
