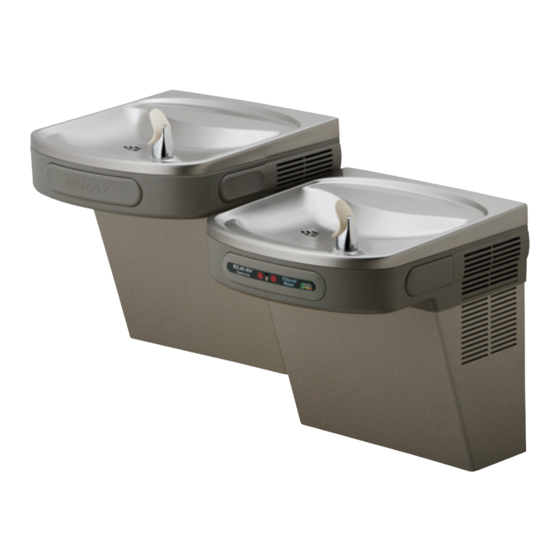

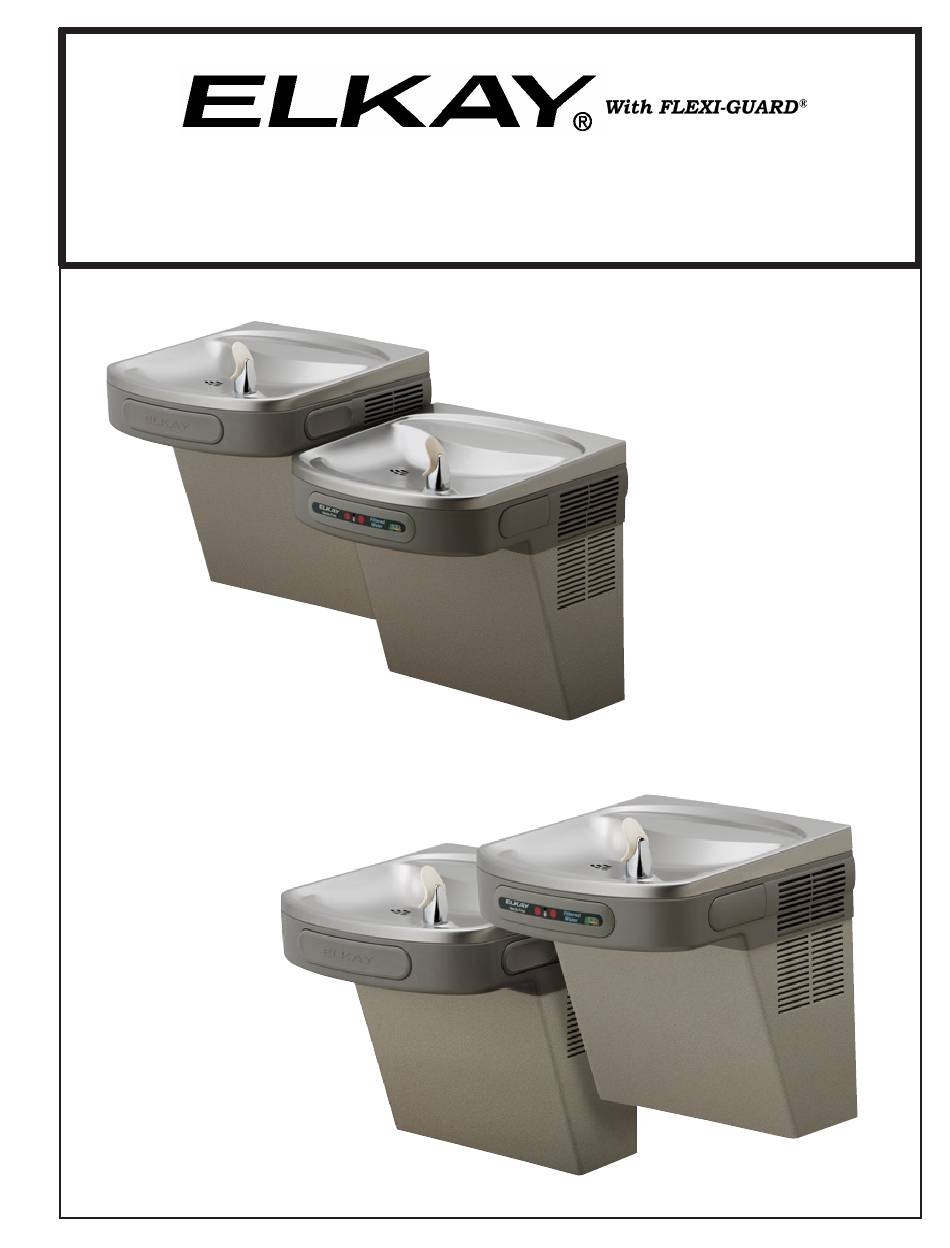

- Page 1 LZOTL8*1F LZOTL8*2F LZOTL8*3F INSTALLATION, CARE & USE MANUAL LZOTL Series Versatile Bi-Level Water Coolers ™ Versatile Cooler Model LZOTL8 configuration as shipped Versatile Cooler Model LZOTL8 alternate installation Page 1 0000000774 (Rev. C - 01/15)
- Page 2 LZOTL8*1F LZOTL8*2F LZOTL8*3F Uses HFC-134A refrigerant See FIG. 4 See FIG. 4 Sensor Eye Adjustment screw See FIG. 3 FIG. 1 Page 2 0000000774 (Rev. C - 01/15)
- Page 3 LZOTL8*1F LZOTL8*2F LZOTL8*3F FIG. 2 Page 3 0000000774 (Rev. C - 01/15)
- Page 4 LZOTL8*1F LZOTL8*2F LZOTL8*3F FIG. 3 Page 4 0000000774 (Rev. C - 01/15)
- Page 5 LZOTL8*1F LZOTL8*2F LZOTL8*3F HANGER BRACKETS & TRAP INSTALLATION 1) Remove hanger bracket fastened to back of cooler by removing one (1) screw. 2) Mount the hanger bracket as shown in Figure 2 or 3. NOTE: Hanger Bracket MUST be supported securely. Add fixture support carrier if wall will not provide adequate support. Anchor hanger securely to wall using all six (6) 1/4 in.
- Page 6 LZOTL8*1F LZOTL8*2F LZOTL8*3F Service Instructions 12 - Bubbler Lower and Upper Shroud Assembly To access the refrigeration system and plumbing connections, remove four screws from bottom of cooler to remove the lower shroud. To remove the upper shroud for access to the pushbars, regulator, solenoid valve or other components located in the top of the unit, remove lower shroud, disconnect drain, remove four screws from tabs along lower edge of upper shroud, unplug two wires and water tube.
- Page 7 LZOTL8*1F LZOTL8*2F LZOTL8*3F Fig. 7 WATERSENTRY Filter Detail ® Detalle WATERSENTRY Filtro ® Description WATERSENTRY Filtrage ® WATERSENTRY FILTER PARTS LIST LISTA DE PIEZAS DEL FILTRO LISTE DES PIÈCES DU ® (See Fig. 7) (Vea la Fig. 7) FILTRE (Voir Fig. 7) ITEM NO.
- Page 8 IMPRESO EN LOS E.E.U.U. IMPRIMÉ AUX É.-U. POUR OBTENIR DES PIÈCES, CONTACTEZ VOTRE DISTRIBUTEUR LOCAL OU COMPOSEZ LE 1.800.834.4816 ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 Page 8 0000000774 (Rev. C - 01/15)
