Summary of Contents for AEMC instruments FlexProbe 24-3001

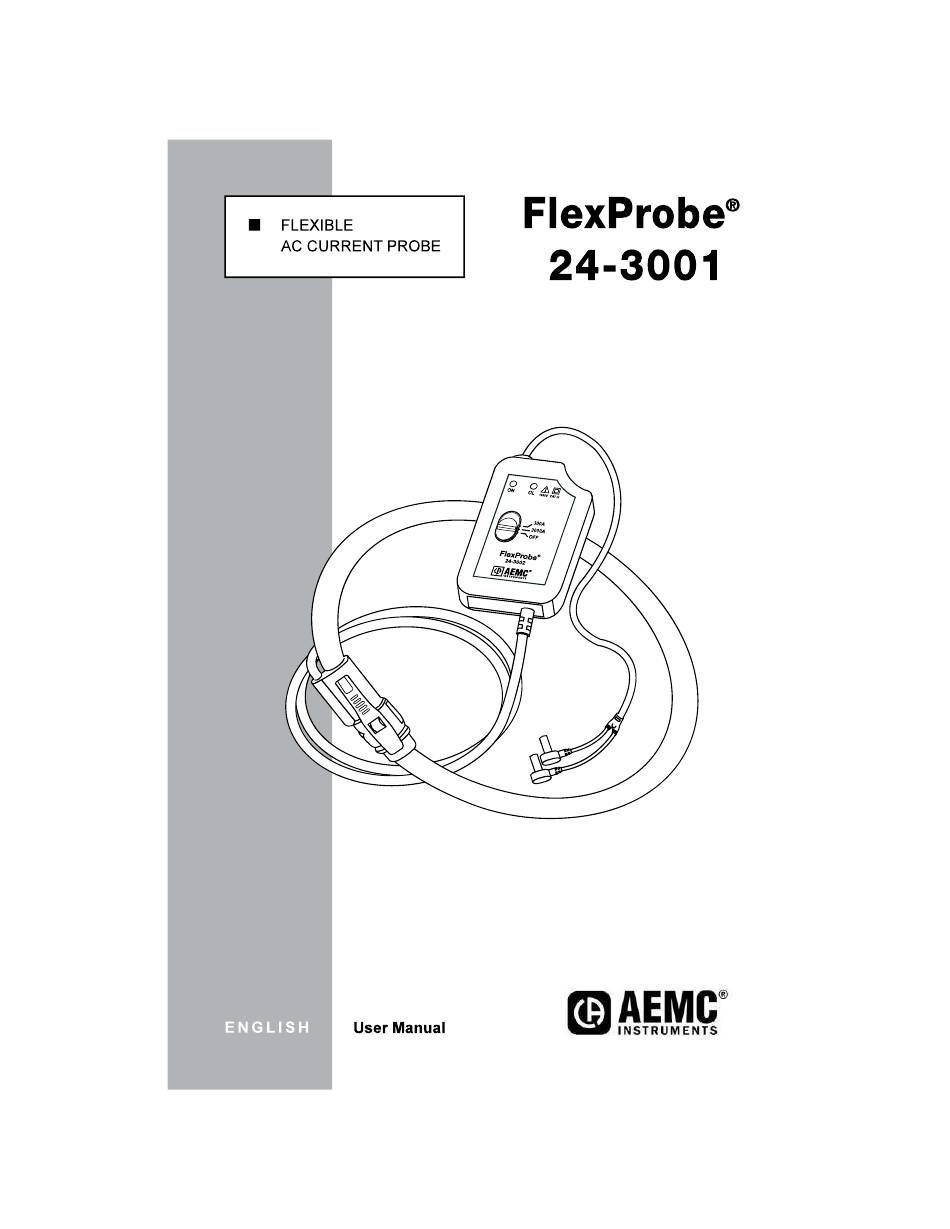

- Page 1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 3 1.4.1 Accessories and Replacement Parts ......2 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 4 Read the instruction manual completely and follow all the safety information before attempting to use or service this instrument. Wear protective clothing and gloves as required. Use caution on any circuit: potentially high voltages and currents may be present and may pose a shock hazard. probe.
- Page 5 CAT II: For measurements performed on circuits directly connected to the electrical distribution system. Examples are measurements on household appliances or portable tools. CAT III: For measurements performed in the building installation at installation and circuit breakers. CAT IV: For measurements performed at the primary electrical supply (<1000V) such as on primary overcurrent protection devices, ripple control units, or meters.
- Page 6 The FlexProbe ® ments on conductors where standard clamp-on probes could not be used. In particular, it can be installed in tight spaces, around breaker panels, around cable bundles, around wide or large bus bars, or even wrapped around irregular shapes. The Shape Memory feature enables the user to “pre-shape”...
- Page 7 Models to measure from 0.5 to 3000Arms Accuracy 1% of Reading ± 500mA TRMS measurements when connected to a TRMS instrument No core saturation or damage if overloaded Overrange LED for measurement circuitry EN 61010; 1000V CAT III; 600V CAT IV Waterproof sensor 9V battery for typical 150 hour continuous operations Shape Memory™...

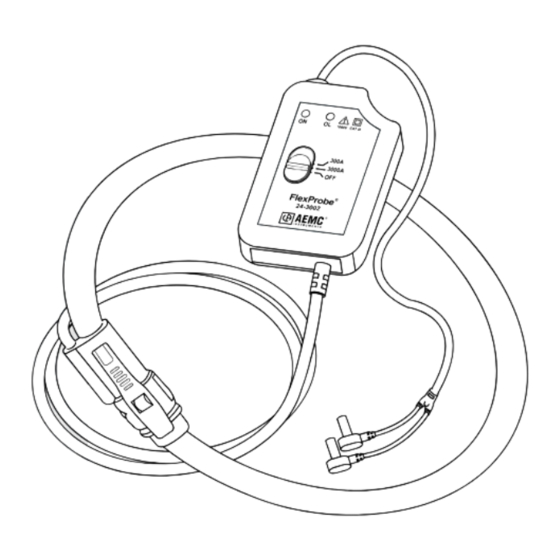

- Page 8 1. Flexible sensor (Ø 0.5", 12.5mm) 2. Range selection switch 3. Power ON indicator (Green LED) 4. Overload indicator (Red LED) 5. Electronic module 6. Double insulated 14" (36cm) lead with 4mm safety banana plugs 7. FlexProbe connector/latch ® 8. Sensor lead GlobalTestSupply www.
- Page 9 Current Range: 300/3000A Output Signal: mV output (4000mV peak max) Three position slide switch: 10mV/A 5A to 300Arms 1mV/A 50A to 3000Arms ON/OFF AC Current Accuracy (after calibration and for one year): 1% of Reading ± 500mA Crest Factor: 4.5 Phase Shift: <...
- Page 10 Operating Temperature Range: 14° to 131°F (-10° to +55°C) Storage Temperature Range: -40° to 158°F (-40° to +70°C) Sensor: -14° to 212°F (-10° to 100°C); <0.5% per 10°C Module: -14° to 131°F (-10° to 55°C); <0.5% per 10°C Operating Relative Humidity: 50°...
- Page 11 Electrical Safety - Conformity to International Standards The instrument is compliant with IEC 61010-2-032, 600V category IV or 1000V category III. Double or reinforced insulation Type of current sensor per IEC 61010-2-032: type B Electromagnetic Compatibility: The device is in conformity with standard IEC 61326-1. GlobalTestSupply www.
- Page 12 Please make sure that you have already read and fully understand the WARNING section on page 1. 1. Connect the electronic module to the AC Volt range of your DMM or measuring instrument. 2. Select the appropriate module output voltage range. If the current magnitude is unknown, select the 3000A range.
- Page 13 • When using the FlexProbe with a meter, it is ® important to select the range that provides the best resolution. Failure to do this may result in measurement errors. • For best results, select the highest FlexProbe ® output signal possible and the most sensitive meter range for this output.
- Page 14 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 15 • To avoid electrical shock, do not attempt to perform any servicing • Do not perform any service while the FlexProbe is on any ® circuit. • To avoid electrical shock and/or damage to the instrument, do not get water or other foreign agents into the electronic module. •...
- Page 16 that it be scheduled back to our factory Service Center at one-year intervals for recalibration, or as required by other standards or internal procedures. For instrument repair and calibration: You must contact our Service Center for a Customer Service Authorization Number (CSA#).
- Page 17 The FlexProbe ® is warranted to the owner for a period of two years from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from whom it was ®...
