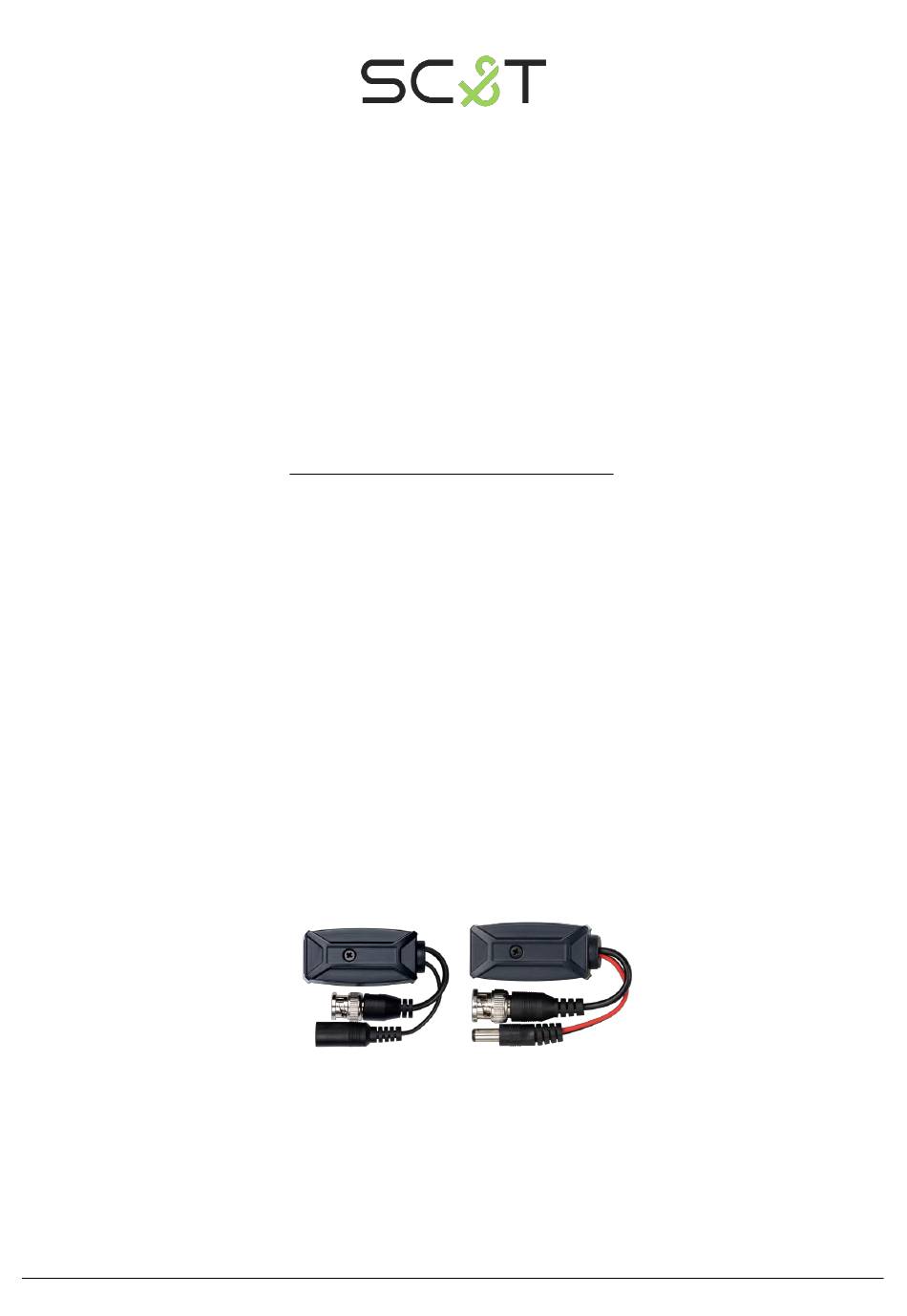

- Page 1 Twist Pair Passive User Manual Model : TTP111HDP-LK HD-TVI/AHD/HDCVI/CVBS Video & Power Balun with Pigtail Smart Cabling & Transmission Corp. V1.0...

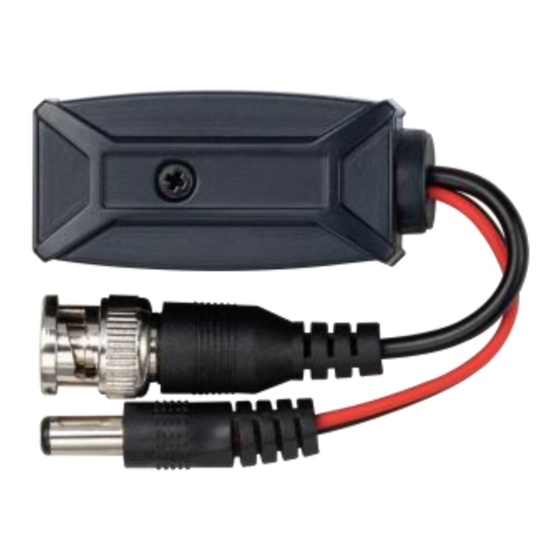

- Page 2 TTP111HDP-LK Introduction TTP111HDP-LK are video balun that can use a single cost-effective Ethernet cable to extend HD-TVI/ AHD/ HDCVI/ CVBS signal and power, with the transmission distance up to 300M and the resolution up to 4K (8MP). The equipped power plug can also provide power from the local power supply for a remote CCTV camera and the pigtail design allows you to have an easier, faster connection experience.
- Page 3 User Manual TTP111HDP-LK Power Transmission Distance Voltage Drop According to Cable Length (24AWG) Voltage DC12V Voltage DC24V Distance 100M 300M Distance 50M 100M 300M Camera Power Consumption 2 PAIRS 2PAIR 2 PAIR Camera Power Consumption 2 PAIR 2 PAIR 2 PAIR 50mA 11.8...
- Page 4 User Manual TTP111HDP-LK Specification ITEM NO. TTP111HDP-L TTP111HDPJ-L Support Max. Video Resolution 8MP (4K) HD-TVI 100M at 1080p AHD 150M at 8MP Max. Transmission Distance HDCVI 100M at 8MP CVBS 300M (NTSC/ PAL) Signal Bandwidth 50Hz to 60MHz ( -3dB ) Ports &...
