- Page 1 Twist Pair Passive User Manual Model : TTP111HDPK HD-TVI/AHD/HDCVI/CVBS Video & Power Balun Smart Cabling & Transmission Corp. V1.0...
-
Page 2: Installation View

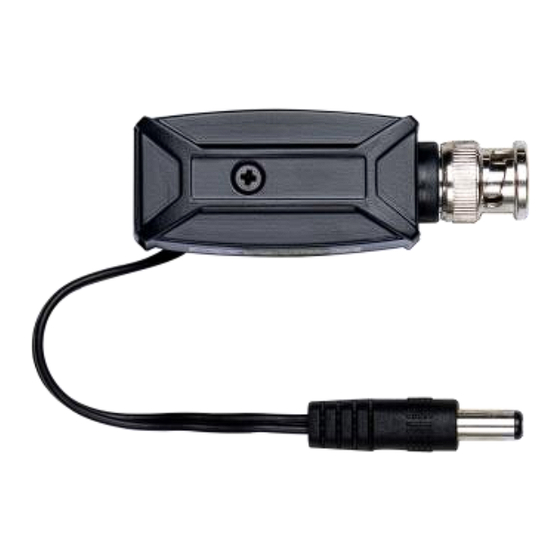

TTP111HDPK Introduction TTP111HDPK are video balun that can use a single cost-effective Ethernet cable to extend HD-TVI/ AHD/ HDCVI/ CVBS signal and power, with the transmission distance up to 300M and the resolution up to 4K (8MP). The equipped power plug can also provide power from the local power supply for a remote CCTV camera. - Page 3 User Manual TTP111HDPK Transmission Distance Chart Video Transmission Distance (Max) HD-TVI/AHD/HDCVI/CVBS Video Balun Distance Chart HD-TVI HDCVI CVBS 1080P 250M 1080P 250M 4MP 1080P 300M 400M 5MP 200M 200M 4K 200M The distance may effected by the quality of cable, camera, DVR. This installation should be made by a qualified service person and should conform to all local codes.
- Page 4 User Manual TTP111HDPK 1Amp 18.7 14.7 1.5Amp 16.1 Panel View Front Rear RJ-45 Jack Pin Define Recommend Cable Use high quality CAT5e UTP or CAT6 UTP cable. The max working distance is 300M for AHD, CVI camera, HD-TVI maximum distance is 250M. The distance may effected by the quality of cable, camera, DVR.
-
Page 5: Specification
User Manual TTP111HDPK Specification ITEM NO. TTP111HDP TTP111HDPJ Support Max. Video Resolution 8MP (4K) HD-TVI 100M at 8MP AHD 250M at 8MP Max. Transmission Distance HDCVI 200M at 8MP CVBS 300M (NTSC/ PAL) Signal Bandwidth 50Hz to 60MHz ( -3dB ) Ports &...
