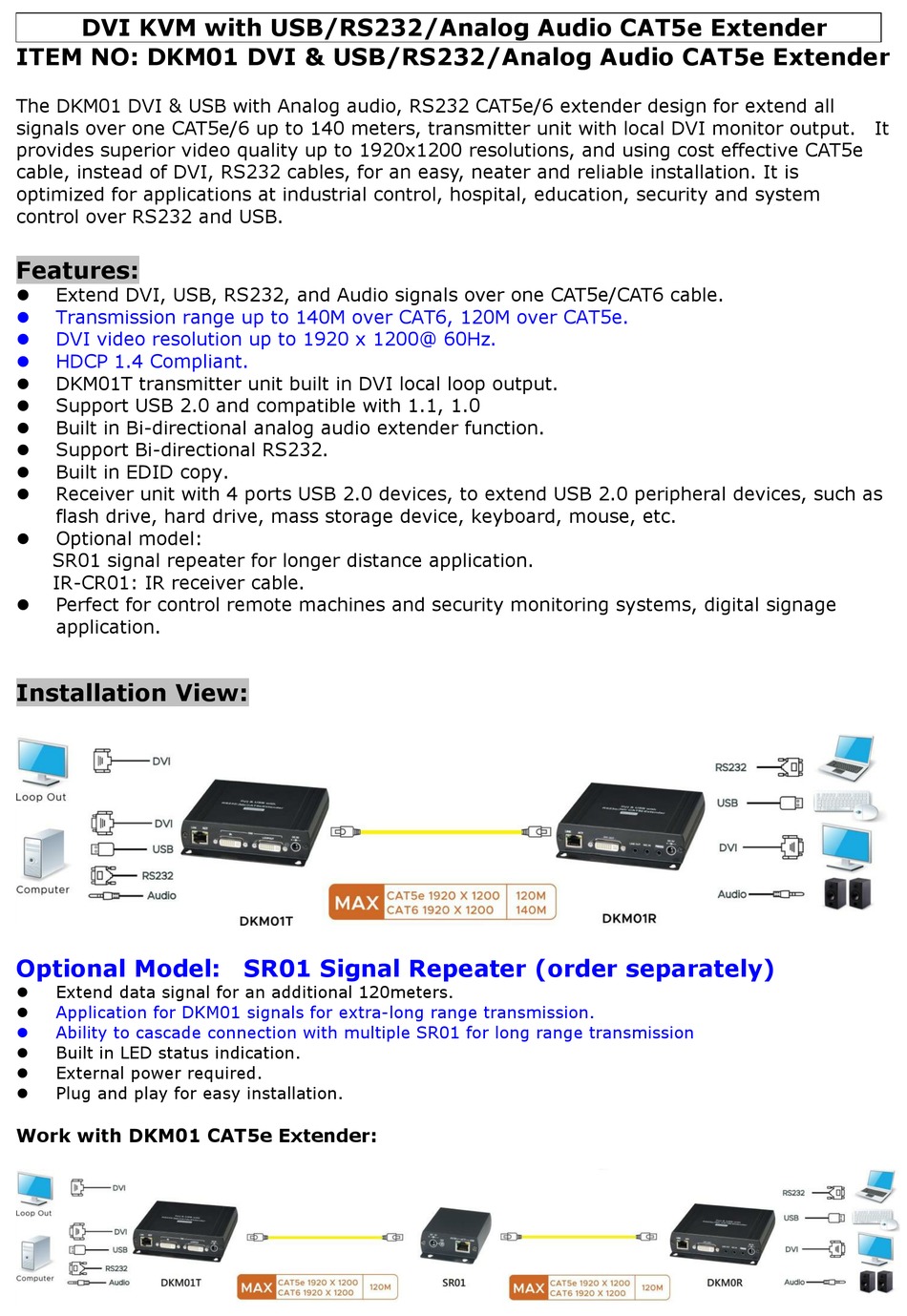

SC&T DKM01T Quick Start Manual

DVI KVM with USB/RS232/Analog Audio CAT5e Extender

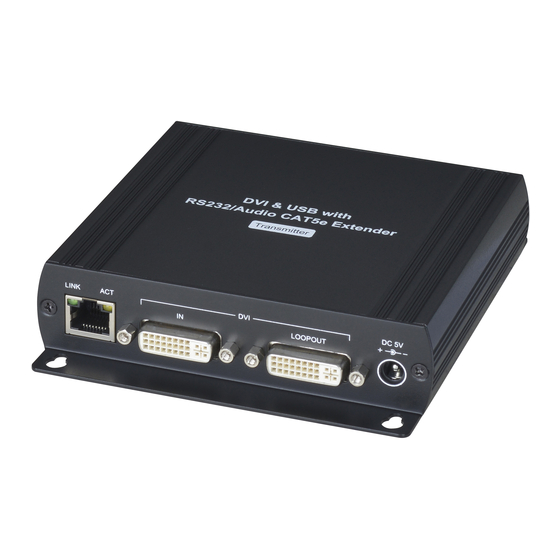

ITEM NO: DKM01 DVI & USB/RS232/Analog Audio CAT5e Extender
The DKM01 DVI & USB with Analog audio, RS232 CAT5e/6 extender design for extend all
signals over one CAT5e/6 up to 140 meters, transmitter unit with local DVI monitor output. It
provides superior video quality up to 1920x1200 resolutions, and using cost effective CAT5e
cable, instead of DVI, RS232 cables, for an easy, neater and reliable installation. It is
optimized for applications at industrial control, hospital, education, security and system
control over RS232 and USB.
Features:
Extend DVI, USB, RS232, and Audio signals over one CAT5e/CAT6 cable.

Transmission range up to 140M over CAT6, 120M over CAT5e.

DVI video resolution up to 1920 x 1200@ 60Hz.

HDCP 1.4 Compliant.

DKM01T transmitter unit built in DVI local loop output.

Support USB 2.0 and compatible with 1.1, 1.0

Built in Bi-directional analog audio extender function.

Support Bi-directional RS232.

Built in EDID copy.

Receiver unit with 4 ports USB 2.0 devices, to extend USB 2.0 peripheral devices, such as

flash drive, hard drive, mass storage device, keyboard, mouse, etc.
Optional model:

SR01 signal repeater for longer distance application.
IR-CR01: IR receiver cable.
Perfect for control remote machines and security monitoring systems, digital signage

application.
Installation View:
Optional Model: SR01 Signal Repeater (order separately)
Extend data signal for an additional 120meters.

Application for DKM01 signals for extra-long range transmission.

Ability to cascade connection with multiple SR01 for long range transmission

Built in LED status indication.

External power required.

Plug and play for easy installation.

Work with DKM01 CAT5e Extender:
