- Page 1 Twisted Pair Passive Series User Manual Model : TTP414HD 4 Port HD-TVI/AHD/HDCVI/CVBS Video Balun Smart Cabling & Transmission Corp. V1.0...

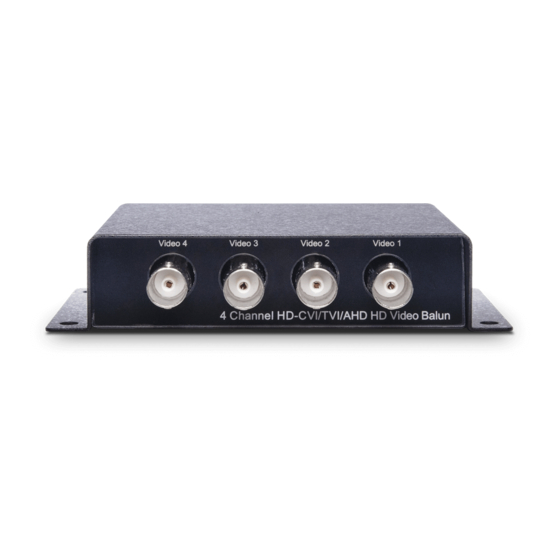

- Page 2 User Manual TTP414HD Introduction TTP414HD is a 4 port video balun that uses twisted-pair cables to send HD-TVI/ AHD/ HDCVI/ CVBS for up to 400M, with up to 4K (8MP) resolution. Features Resolution up to 4K (8MP) Signal extension up to 400M over UTP CAT5e/6.
- Page 3 User Manual TTP414HD RJ-45 Jack Pin Define NOTE : These devices is reversible, BNC connector ＝ RJ45 This installation should be made by a qualified service person and should conform to all local codes. Cable Use high quality CAT5e UTP or CAT6 UTP cable. The max working distance is 300M.
- Page 4 User Manual TTP414HD Specification ITEM NO. TTP414HD Support Video Format HD-TVI, AHD, HDCVI, CVBS Max. Video Resolution Transmission Distance 300M Bandwidth 50Hz to 60MHz (-3dB) Ports & Interfaces Video Input/ Output 4 x BNC (1V p-p, 75Ω ) Link Interface...
