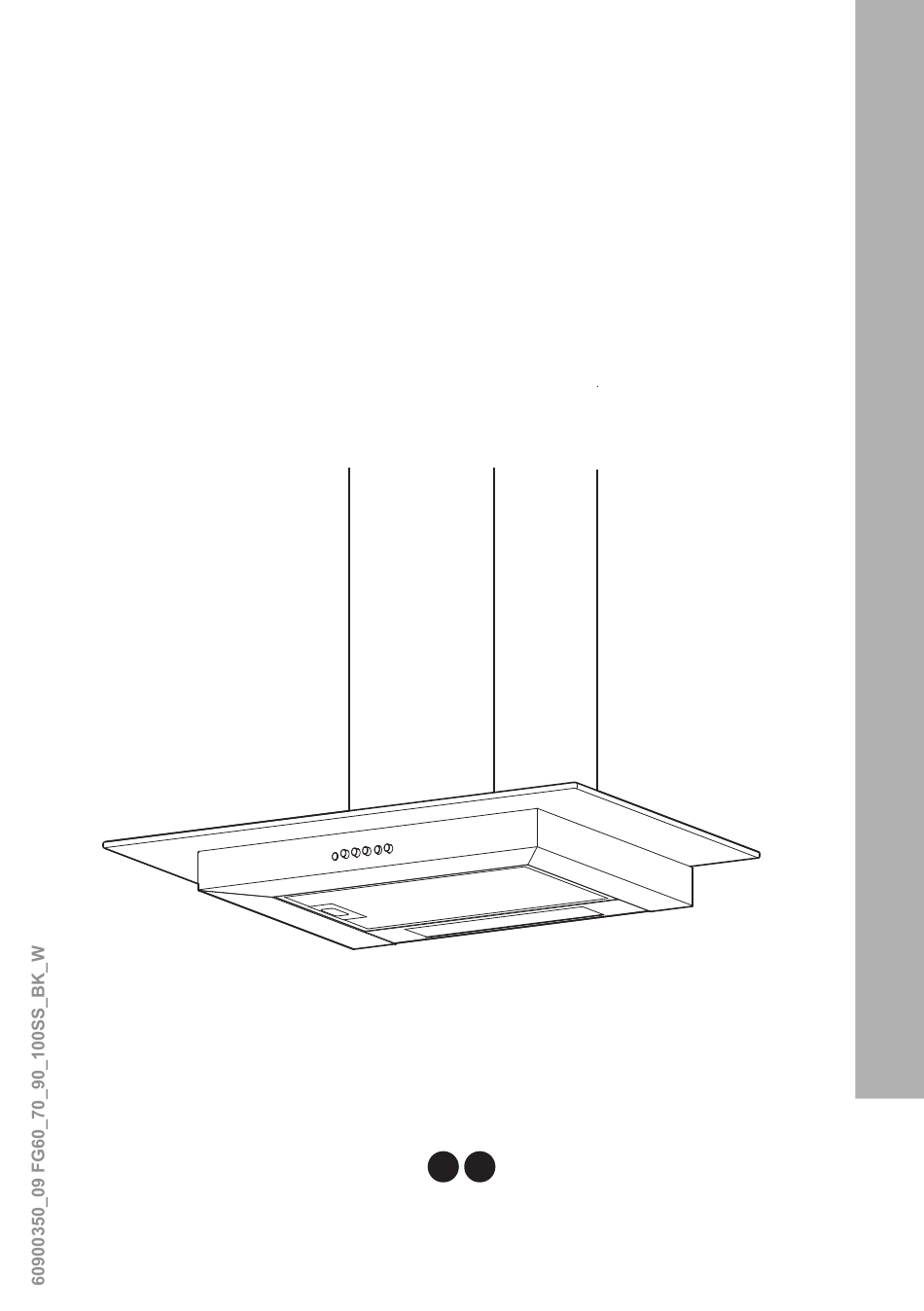

- Page 1 FG60/70/90/100/SS/BK/W...
- Page 2 [01] x 1 [02] x 1 [03] x 2 [04] x 1 [05] x 2 [06] x 1 [07] x 1 [08] x 1...
- Page 3 [09] x 4 [10] x 4 [11] x 1 [12] x 6 1 : 1 [13] x 4 (3.9x18) [14] x 6 (3.9 x 32mm) [15] x 4 (3.4 x 10mm)
- Page 4 FG60/70/90/100/SS/BK/W Cooker Hood Installation...
-
Page 5: Table Of Contents
Let's get started... Getting started... Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information CE Declaration of conformity Appendix Technical Information for EU66... -
Page 6: Getting Started
Getting Started... Before you start Safety... -
Page 7: Before You Start
Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. - Page 8 Before you start Tools required Ø6mm Accessories not supplied Recirculation Extraction Ø125mm or Ø150mm CARBFILT4 (UK & IE) VENT PACK 2 (UK & IE) SELF ADHESIVE ALUMINIUM TAPE CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 01 4475261 (IE)
- Page 9 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried electrician. • This appliance must be installed correctly following the manufacturer’s instructions. This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent...
- Page 10 Safety Keep the appliance and its cord out of reach of children less than 8 years. Means for disconnection must be incorporated rules. An all-pole disconnection switch having a contact separation of at least 3 mm in all poles Regularly check the power plug and power cord for damage.
- Page 11 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
- Page 12 Safety Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.
-
Page 13: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information CE Declaration of conformity... -
Page 14: Product Functions
Product Functions Product functions This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of the air quality inside the room, it also allows you to illuminate the cooking area. Operation Operation • Switch on the appliance at the switched fused connection unit. The appliance is ready for operation functions. -
Page 15: Care And Maintenance
Care and maintenance Care and maintenance Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services. Bulb replacement DOUBLE POLE SWITCHED FUSED SPUR OUTLET FUSE ON 10’... - Page 16 Care and maintenance CLICK 2 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED). MODEL NUMBER CARBFILT4 (UK & IE).
- Page 17 Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of FUSE a fault, contact customer services. Exterior cleaning: use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products. 1 MONTH MAX.
-
Page 18: Troubleshooting
Troubleshooting Troubleshooting Fault Cause Solution Excessive The Appliance is not hung Take down the appliance Vibration properly on the brackets. and check it is properly The fan blade is Switch off the appliance. damaged. Repair to be carried personnel only. tightly. -
Page 19: Recycling And Disposal
Recycling and disposal Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. - Page 20 Technical and legal information All installation work must be carried out by a Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST NOT BE EARTHED.
- Page 21 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. Electrical Connection Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
-
Page 22: Ce Declaration Of Conformity
We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. FG60BK, FG70BK, FG90BK, FG100BK, FG60SS, FG70SS MACHINE APPLICATION: , FG90SS, FG100SS, FG60W, FG70W, FG90W, FG100W... -
Page 23: Appendix
Appendix... Installation Information for EU66... - Page 24 Installation CARBFILT4 (UK & IE) VENT PACK 2 (UK + IE) You can choose two type of installation: - Ducted option - Recirculation option...
- Page 25 MAX 855 DIM. A DIM. A MIN.750mm MIN 650mm Electric Mark on the kitchen wall the holes to fix the cooker hood. The Wall Plugs supplied are suitable for solid walls only. When fixing to any other type of wall use suitable alternative fixings.
- Page 26 [14] [12] [12] x 6 [14] x 2 Drill the holes, insert the wall plugs in all 6 holes. Insert the screws in the middle 2 holes in fig.03. Maximum gap between top 2 holes and middle 2 holes can be no more than 855mm, dependant on ceiling height [04] [04] [14]...
- Page 27 [09] x 4 [10] x 4 [13] x 4 [11] Insert the 4x bolts, rubber washer and washer and tighten with the allen key, ensuring not to over tighten as this may cause damae to the glass. [06] x 1 Remove the aluminium filters...
- Page 28 [14] x 2 Position the hood over the top two screw then fix the bottom screws from inside the hood. Replace the aluminium Filter...
- Page 29 [08] [15] [07] [07] [08] [15] x 2 Fix the Collar and the reducer if required.. Vent Pack 2 (UK + IE) Fix the vent pack 2 using self adhesive aluminium tape.
- Page 30 [03] x 2 [03] Position the chimney sections. [15] [15] x 2 Fit the chimney sections to the bracket. Connect top of the ducting tube to vent kit as per manufacturers instructions.
- Page 31 Remove the Protector film For recirculating option refer to Care and maintenance section. For electrical connection see Technical and legal information section.
- Page 32 Appendix... Information for EU66 (A)Information of the cooker Hood Symbol Value Unit FG60BK, FG60SS, FG60W, FG70BK, FG70SS, FG70W, FG90BK, FG90SS, Model identification FG90W, FG100BK, FG100SS, FG100W Annual Energy Consumption 84.7 kWh/a hood Time increase factor Fluid Dynamic Efficiency hood Energy Efficiency Index 98.3...
- Page 34 Apelson Appliances UK Limited Unit 3 Normandy Landings Pope St Castleford WF6 2AG...
