Summary of Contents for Cata VHB60SS

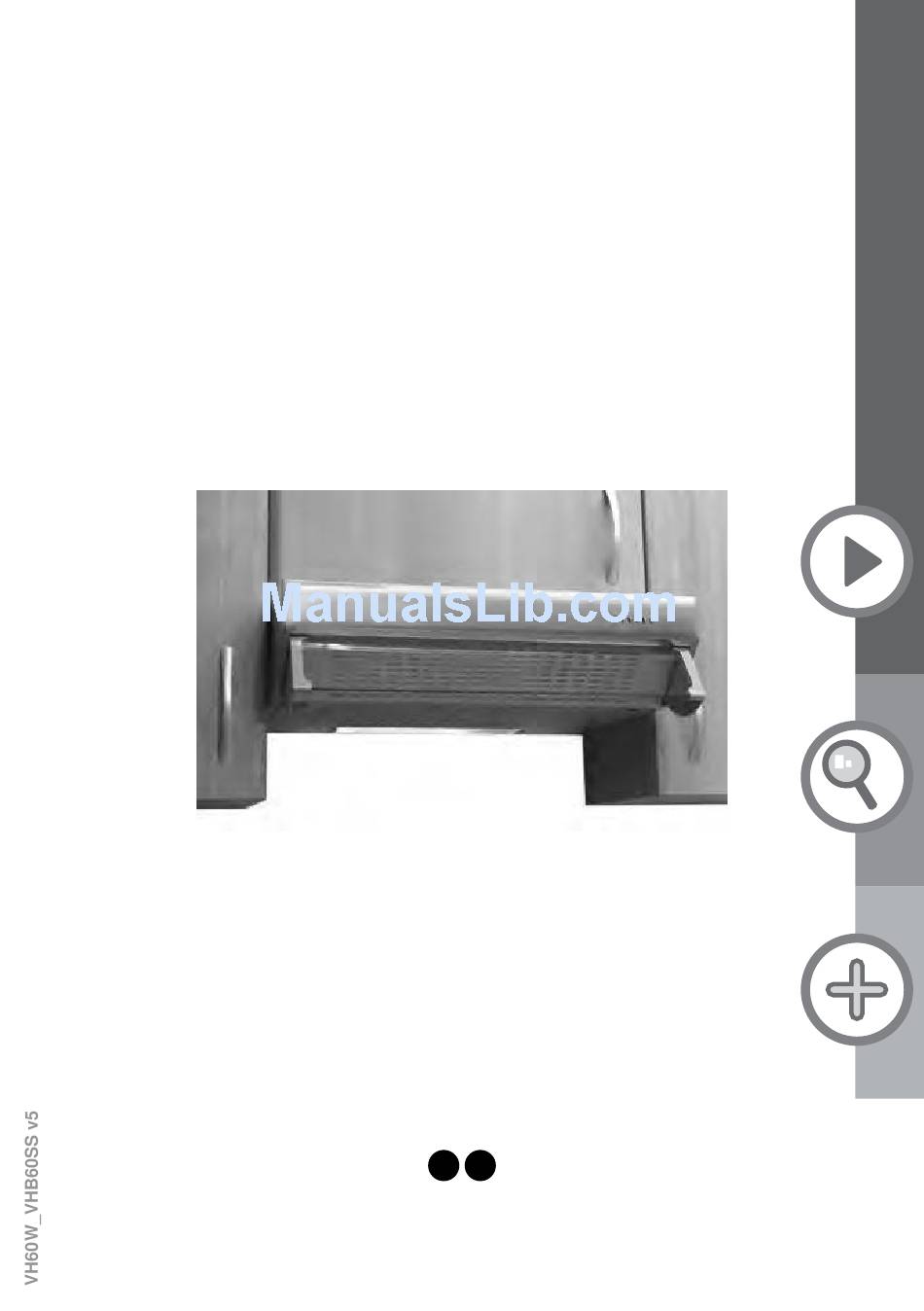

  • Page 1 VHB60SS VH60W...
  • Page 2 [01] x 1 [02] x 1 [03] x 1 [04] [05] x 1 [6] x 2 (3x 12mm)
  • Page 3 VHB60SS VH60W Visor Hood Hotte Tiroir Installation Installation...
  • Page 4: Table Of Contents

    Let's get started... Getting started... Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information CE Declaration of conformity Appendix Installation Information for EU66...
  • Page 5: Getting Started

    Getting Started... Before you start Safety...
  • Page 6: Before You Start

    Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
  • Page 7: Tools Required

    Before you start Tools required Ø6mm Accessories not supplied Recirculation Extraction CARBFILT1 (UK & IE) Ø120m VENT PACK 2 (UK & IE ) 3.9 x 32 mm SELF ADHESIVE Screw for cabinet Short ALUMINIUM TAPE Wall Plug Ø6mm CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 01 4475261 (IE)
  • Page 8: Safety

    Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried electrician. • This appliance must be installed correctly following the manufacturer’s instructions. This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent...
  • Page 9: Safety

    Safety Keep the appliance and its cord out of reach of children less than 8 years. Means for disconnection must be incorporated rules. An all-pole disconnection switch having a contact separation of at least 3 mm in all poles Regularly check the power plug and power cord for damage.
  • Page 10: Safety

    Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
  • Page 11: Safety

    Safety Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.
  • Page 12: In More Detail

    more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information CE Declaration of conformity...
  • Page 13: Product Functions

    Product Functions Product functions This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of the air quality inside the room, it also allows you to illuminate the cooking area. Operation Operation • Switch on the appliance at the switched fused connection unit. The appliance is ready for operation functions.
  • Page 14: Care And Maintenance

    Care and maintenance Care and maintenance Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services. Bulb replacement FUSE 10’ The Bulb may be hot, leave it 10 minutes before removing.. Unscrew bulb, remove and screw in new bulb.
  • Page 15 Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products. 1 MONTH MAX.65˚C improve the cleaning process. 3 MONTHS Important: if the hood is used for more than 2 hours a day.
  • Page 16: Troubleshooting

    Troubleshooting Troubleshooting Fault Cause Solution Excessive The Appliance is not hung Take down the appliance Vibration properly on the brackets. and check it is properly The fan blade is damaged. Switch off the appliance. Repair to be carried out by tightly.
  • Page 17: Recycling And Disposal

    Recycling and disposal Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste.
  • Page 18 Technical and legal information All installation work must be carried out by a Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. WARNING : THIS APPLIANCE MUST NOT BE EARTHED.
  • Page 19 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. Electrical Connection. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
  • Page 20: Ce Declaration Of Conformity

    CE Declaration of conformity CE Declaration of conformity MANUFACTURER : CATA C/Ter N°2, Torelló 08570 – Barcelona (Spain) ADRESS We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law.
  • Page 21: Appendix

    Appendix... Installation Information for EU66...
  • Page 22 Installation Installation CARBFIL (UK & IE) VENT PACK 2 (UK & IE) You can choose two types of installation: - Extraction option - Recirculation option...
  • Page 23 DIM.B DIM.B MIN.750mm Gas /Gaz MIN 650mm Electric / Electrique Mark on the kitchen wall the holes to fix the cooker hood. Ensure wall plugs (not supplied) used are suitable for wall type.
  • Page 24 [05] x 1 MOUNTING OF THE HOOD TO THE WALL (without cupboard above) In this situation the hood should only be used for recirculation purposes only Drill 4 holes corresponding to the diagram on page 23 Insert wall plugs. Insert correct length screw leaving the head protruding 2mm...
  • Page 25 Position hood over 2 wall screws, and use keyhole slots on adjustment bracket to support the weight. Remove the grill Push the clips (1) inwards and release the metal filter & cover (2).
  • Page 26 Whilst holding the hood, and tighten inside screws Tighten outer screws...
  • Page 27 Clip the grill back in place...
  • Page 28 [02] MOUNTING THE HOOD UNDERNEATH A CUPBOARD Both extraction and recirculation options can be used EXTRACTION Cut a hole in the cupboard base to suit the position of the exhaust vent in the visor hood and size to suit the vent kit being used. Connect collar [02] this is used to connect to vent kit.
  • Page 29 Appendix... Information for EU66 (A)Information of the cooker Hood Symbol Value Unit Model identification VH60W, VHB60SS Annual Energy Consumption 65.7 kWh/a hood Time increase factor Fluid Dynamic Efficiency hood Energy Efficiency Index 97.7 hood Measured air flow rate at best 88.8...
  • Page 32 Apelson Appliances UK Limited Unit 3 Normandy Landings Pope St Castleford WF6 2AG...
