Standard Layout
1.
Toggle power to change color or color
rotation.
2.
Press button to change mode from solid
color to single color fade / multi-color
change /
multi-color fade.
3.
Press and hold button to change
brightness.
SCM-SNLC-LC DIP SWITCH SETTINGS
(from left to right counting up)
1
2
3
Master
Not Used
Color
(Normal Operation with
a Switch)
Not Used
Blue/White only
Listen only
Indicates recommended settings for this installation
REVISED
March 19th 2021

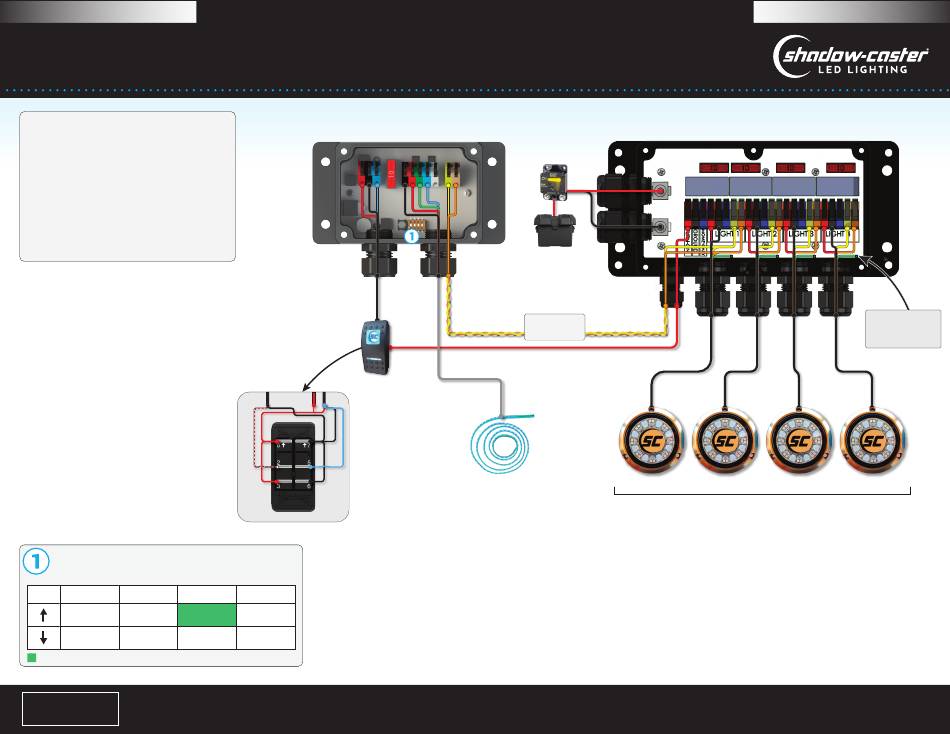

SCM-SNLC & SCM-PD-RELAY-4 with
SCR-24-CC Underwater Lights
SCM-SNLC
(Includes 10A Fuse)
SCM-SWITCH-O/O/
MOMENTARY
To Power
To
To
Source
SCM-PD-RELAY-4
SCM-SNLC
(Back side of switch)
4
RGB
RGBW
Breaker
Battery
24V or 12V DC
Shadow-NET
output
®
to sync with other
Shadow-NET
devices
®
Optional RGB Lighting
Supports up 30A of
RGB lighting
SCM-PD-RELAY-4
(Includes 4 X 10A Fuses)
Green PWM controller wires
are not connected and should
be cut and capped when only
SCR-24-CC Underwater Lights
using a switch
Advertisement
Table of Contents
Related Manuals for Shadow-Caster SCM-SNLC
Summary of Contents for Shadow-Caster SCM-SNLC
- Page 1 SCM-SNLC & SCM-PD-RELAY-4 with Standard Layout SCR-24-CC Underwater Lights HOW TO OPERATE SCM-SNLC SCM-PD-RELAY-4 (Includes 10A Fuse) (Includes 4 X 10A Fuses) Toggle power to change color or color Breaker rotation. Press button to change mode from solid color to single color fade / multi-color change / multi-color fade.
- Page 2 SCM Switch with SCM-PD-RELAY-4 and Standard Layout 4 X SCR-24 Underwater Lights SCM-PD-RELAY-4 HOW TO OPERATE (Includes 4 X 10A Fuses) Power Toggle Control Step to the next color or brightness level. Breaker Push Button Control Press button to access light ‘Modes’ such as fade and strobe.
