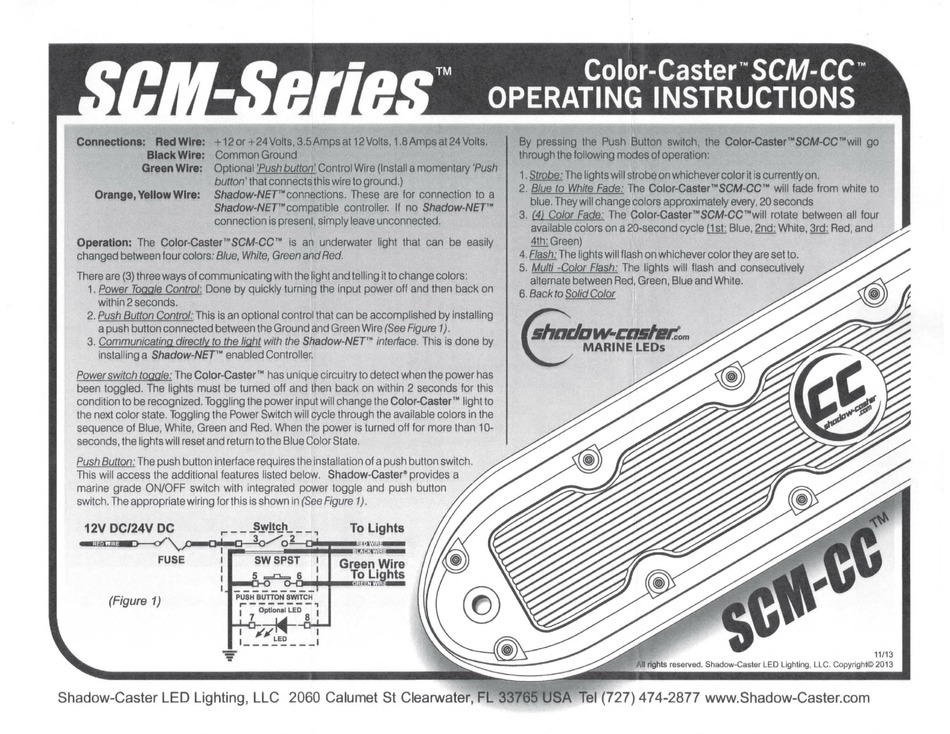

Shadow-Caster Color-Caster SCM Series Operating Instructions Manual

Connection•: Rad Wire:
+ 12 or +24 Volts, 3.5Amps at 12Volts, 1.8 Amps at 24 Volts.
Black Wire:
Common Ground
Green Wire:
Optional 'Push button' Control Wire (Install a momentary 'Push
button' that connects this wire to ground.}
Orange, Yellow Wire:
Shadow-NET'"connections. These are for connection to a
Shadow-NET'"compatible controller. If no Shadow-NET'"
connection is present, simply leave unconnected.
Operation:
The Color-Caster'" SCM-CC'" is an underwater light that can be easily
changed between four colors: Blue, White, Green and Red.
There are (3) three ways of communicating with the light and telling it to change colors:
1. Power Toggle Control: Done by quickly turning the input power off and then back on
within 2 seconds.
2. Push Button Control: This is an optional control that can be accomplished by installing
a push button connected between the Ground and Green Wire (See Figure 1).
3. Communicating directly to the light with the Shadow-NET'" interface. This is done by
installing a Shadow-NET™ enabled Controller.
Power switch toggle: The Color-Caster'" has unique circuitry to detect when the power has
been toggled. The lights must be turned off and then back on within 2 seconds for this
condition to be recognized. Toggling the power input will change the Color-Caster'" light to
the next color state. Toggling the Power Switch will cycle through the available colors in the
sequence of Blue, White, Green and Red. When the power is turned off for more than 10-
seconds, the lights will reset and return to the Blue Color State.
Push Button: The push button interface requires the installation of a push button switch.
This will access the additional features listed below. Shadow-Caster• provides a
marine grade ON/OFF switch with integrated power toggle and push button
switch. The appropriate wiring for this is shown in (See Figure 1).
12V DC/24V DC ,- __ _ s.!"~~h- __ ,
~ " ~ / 0 2
FUSE
I
SW SPST
I
To Lights
I 5
~
6
I ______
o_~_,- ___
llffill!fil'lll1'f,-•
PUSH BUTTON SWITCH ,--------,
I
7
Optional LED
S I
I . , ( * I
I_ - - _;E~ - - _I
(Figure 1)
Shadow-Caster LED Lighting, LLC 2060 Calumet St Clearwater, FL
By pressing the Push Button switch, the Color-Caster"'SCM-CC"'will go
through the following modes of operation:
1. Strobe: The lights will strobe on whichever color it is currently on.
2. Blue to White Fade: The Color-Caster'"SCM-CC'" will fade from white to
blue. They will change colors approximately every, 20 seconds
3. {4J Color Fade: The Color-Caster"'SCM-CC"'will rotate between all four
available colors on a 20-second cycle (1st: Blue, 2nd: White, 3rd: Red, and
4th:Green)
4. Flash: The lights will flash on whichever color they are set to.
5. Multi -Color Flash: The lights will flash and consecutively
alternate between Red, Green, Blue and White.
6. Back to Solid Color
~w-cashlr.:o,n
c
MARINE LEDs
11/13
Tel (727) 474-2877 www.Shadow-Caster.com
