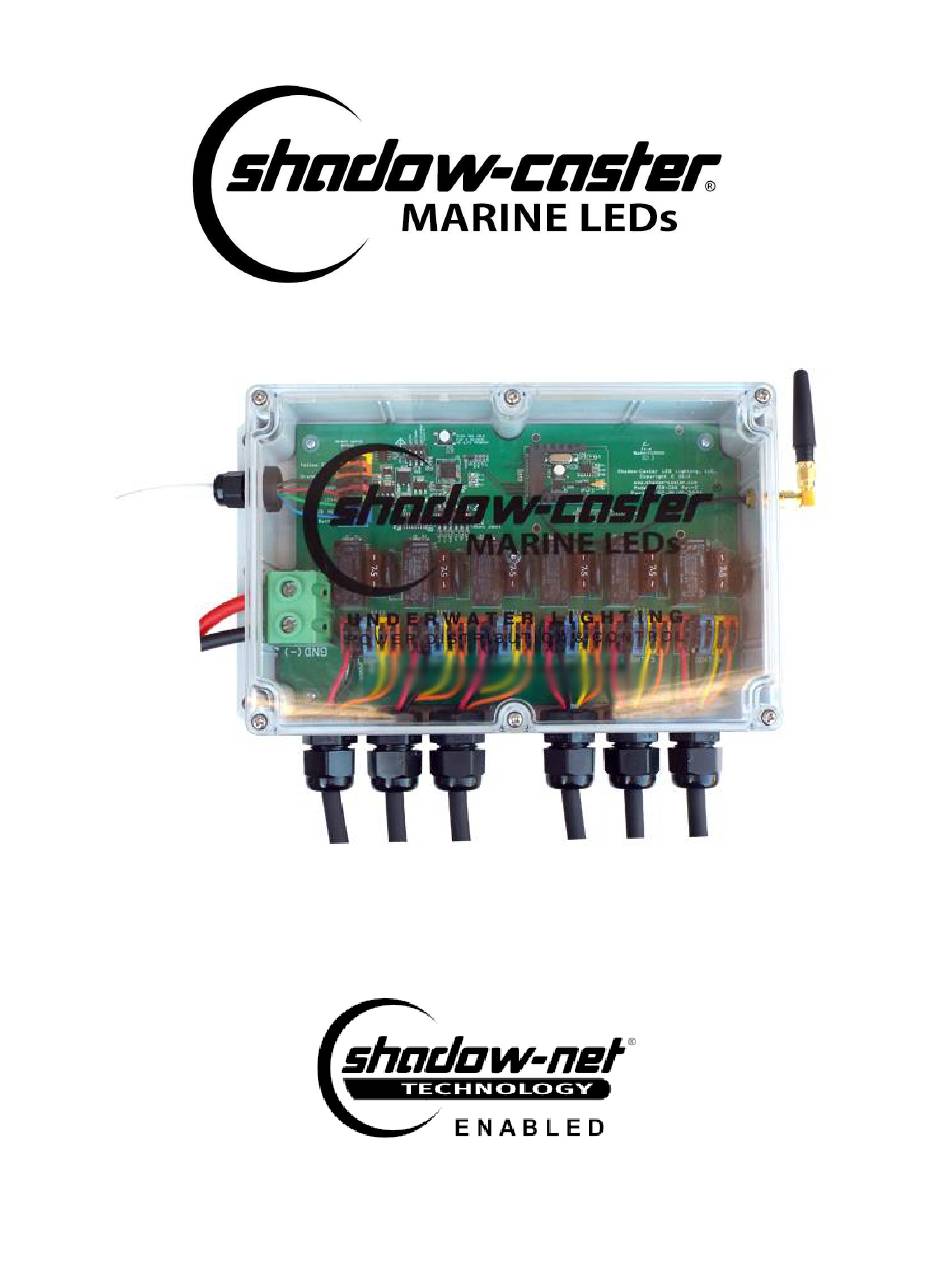

- Page 1 SCM-PD-PLUS-Instructions SCM-PD-PLUS shown with optional SCM-WC-SN wireless controller installed SCM-Power Distribution PLUS system Installation and User Instructions:...
- Page 2 (SCM-WC-SN) or purchasing the SCM-PD- PLUS-COMBO. The SCM-PD-PLUS has “on board” power switching, for 6 lights and up to 100 amps. Each light is individually switched and has its own fuse. The “on-board” power switching feature greatly simplifies installation by allowing the power to be taken locally from a main breaker, as opposed from the helm.
- Page 3 SW3 Enable switches Picture 1: PD-PLUS box showing locations of SW-2, SW-3, remote bypass and Programming button. Diagram 1: Typical installation of SCM-PD-PLUS, shown with 6 Color Caster Lights. (Note that Green Wire from Color Casters are not connected)
- Page 4 Note that the green wire from the Color-Casters is left unconnected. The blue connector is for the blue wire on Shadow-Caster single color lights. Note that the lights should typically be connected consecutively for implementation of chase modes. (I.e. light moves from one light to the next in a linear pattern).
- Page 5 10. Final Setup and Auto Programming: Power up the SCM-PD-PLUS box. Press and hold the “auto programming” button for three seconds and release. All of the lights will turn off, then cycle back on one at a time, starting with light one.
- Page 6 SCM-PD-PLUS-Instructions Operation 1. Turn on the power switch and the lights will power up. 2. To change the color, simply press the Momentary switch and release. Press Momentary Button to Change Color Normal Color setting Extended Colors Enabled Blue Blue...
- Page 7 SCM-PD-PLUS-Instructions Look through our comprehensive collection of boat underwater lights right away.
